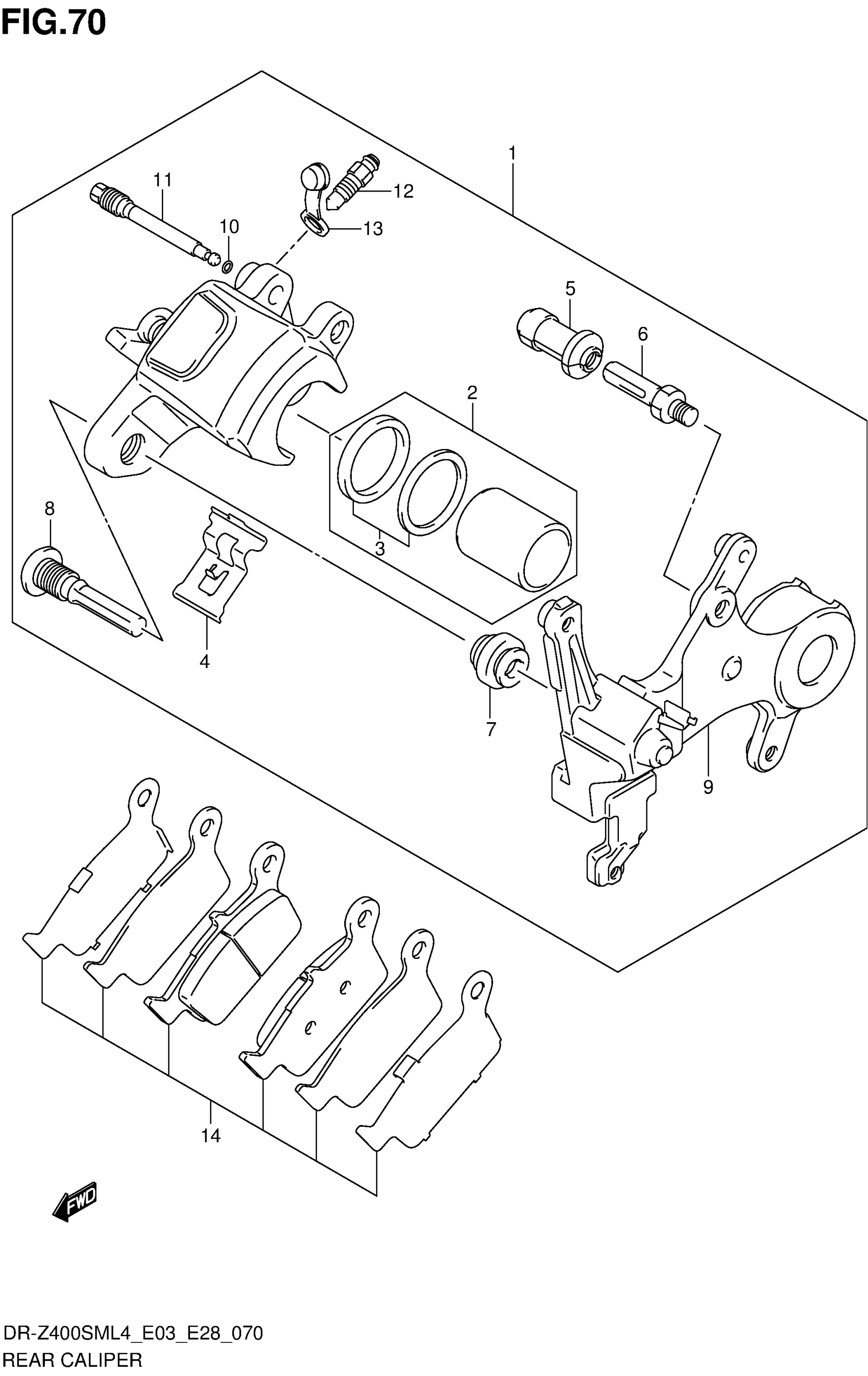

Suzuki DR-Z400SML4 (2014) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-29F00-999

$449.40

2

PISTON SET

69100-43810

$36.64

3

SEAL SET, PISTON

69100-36810

$9.03

4

SPRING, PAD

59315-36E00

$9.72

5

BOOT

59386-13A00

$7.95

6

BOLT

59382-27C30

$9.07

7

BOOT

59303-14500

$5.52

8

PIN

59305-36E00

$18.20

9

BRACKET

69350-29F00

$169.35

10

RING, STOPPER

59145-37F00

$5.58

11

PIN, HANGER

69345-37F00

$20.70

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

PAD & RETAINER SET

69100-36850

$51.95
