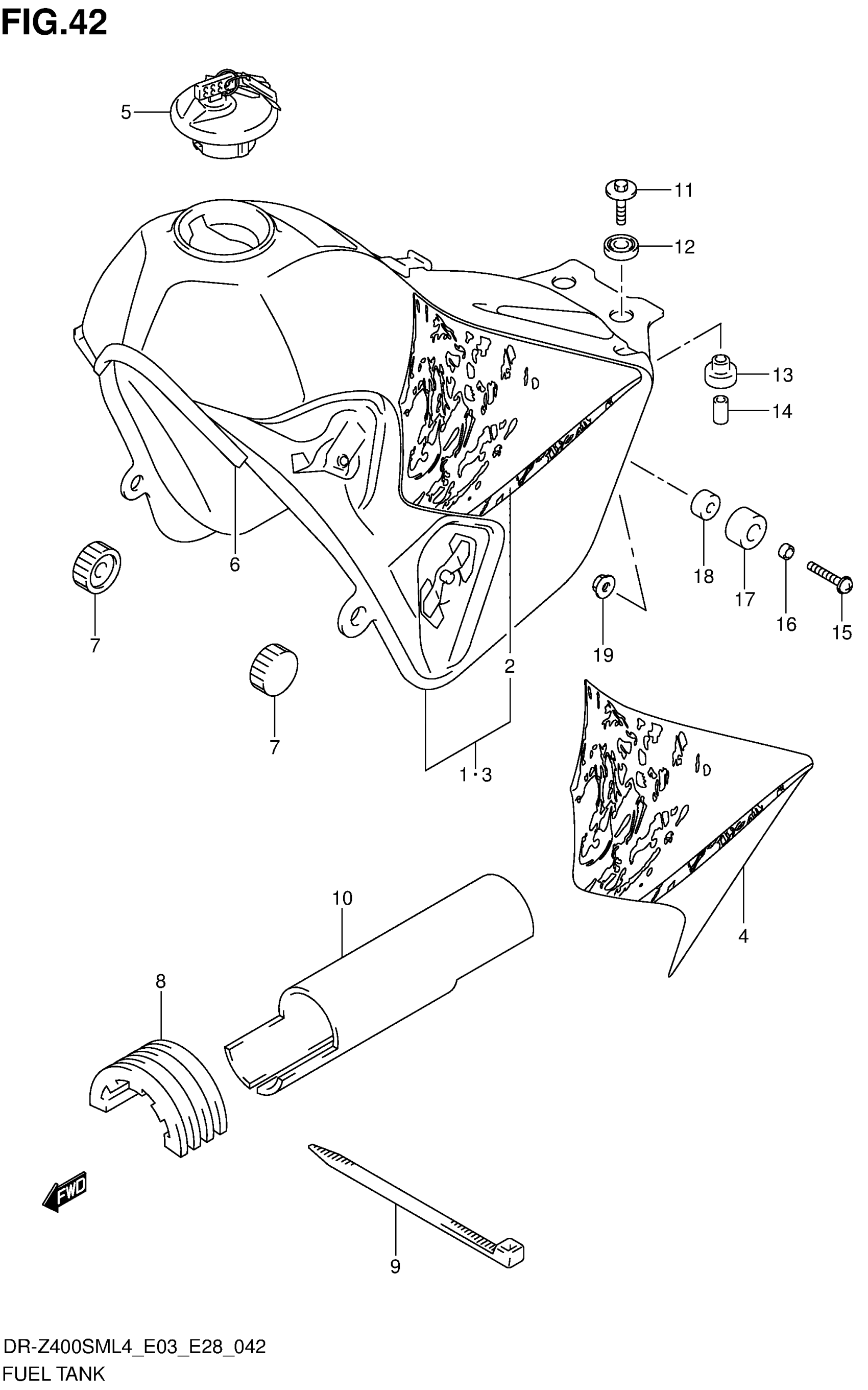

Suzuki DR-Z400SML4 (2014) FUEL TANK (DR-Z400SML4 E03) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | FOR 019

49200-29F70-019

Unavailable

2

TAPE SET | FOR 019

68120-29F50-HMS

Unavailable

3

TANK ASSY, FUEL (BLACK) | FOR 8YM

49200-29F90-019

$1,092.57

4

TAPE SET | FOR 019

68120-29F60-HMT

$94.32

5

CAP SET FUEL TANK FILLER This part replaces 44200-29820.

44200-29821

$140.27

6

MOLDING, FRONT

68241-04X50-300

$7.32

7

CUSHION

09329-10016

$3.10

8

CUSHION, UPPER

44541-29F00

$34.55

9

CLAMP (L:300)

09407-30402

$4.11

10

SHIELD, FUEL TANK

44194-29F00

Unavailable

11

BOLT (6X30)

09116-06214

$2.50

12

CUSHION | UPPER

09320-14022

$3.63

13

CUSHION (9X24X18) | LOWER This part replaces 09320-10020.

09320-10071

$2.60

14

SPACER (6.5X9X18)

09180-06271

$2.35

15

SCREW

02112-1630B

$3.08

16

SPACER (6.5X20X9)

09180-06215

$7.95

17

CUSHION, SIDE

45149-14D00

$6.63

18

SPACER (6.5X9X5)

09180-06306

$2.03

19

NUT

08319-3106B

$2.45
