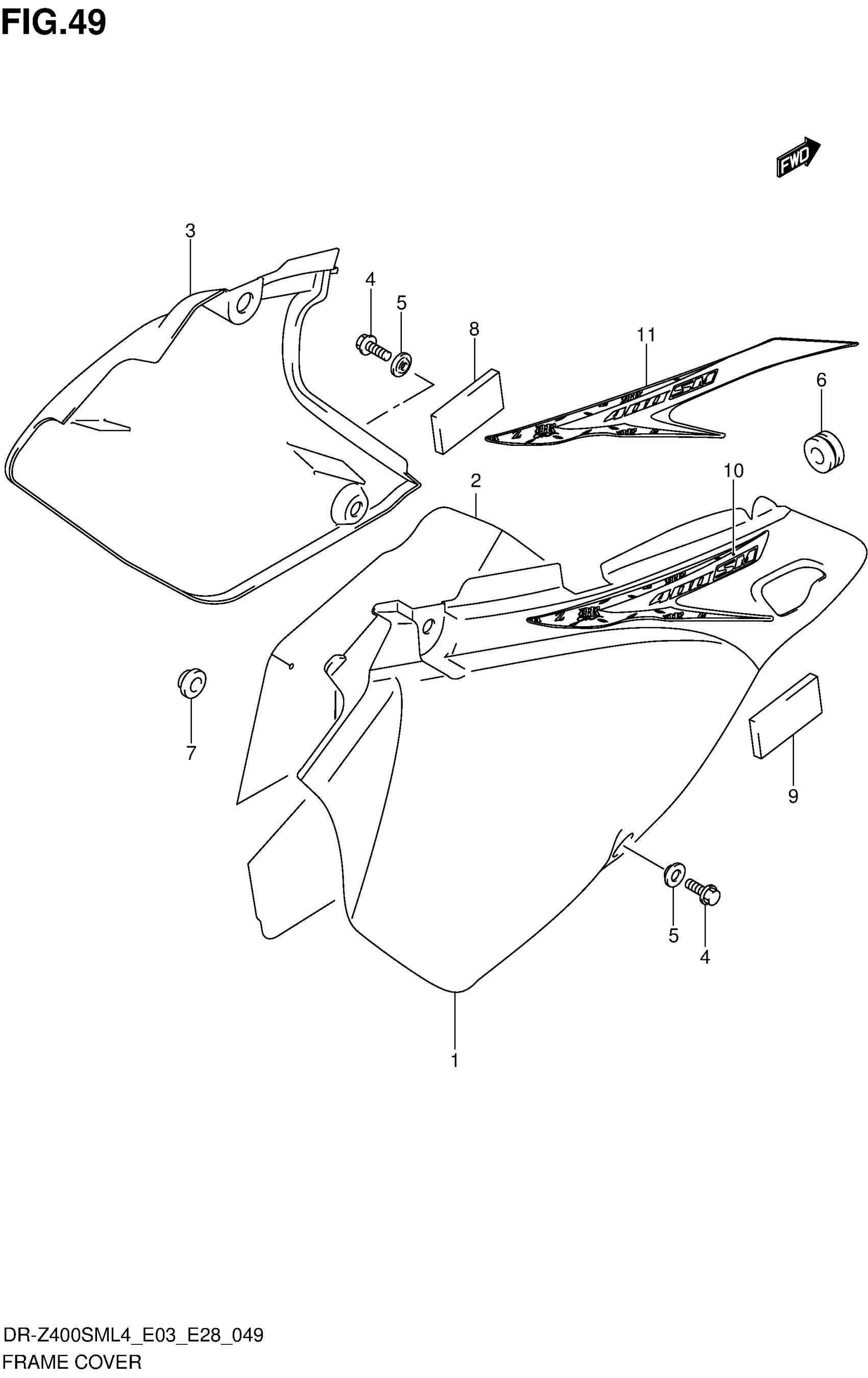

Suzuki DR-Z400SML4 (2014) FRAME COVER (DR-Z400SML4 E33) Diagram

COVER, FRAME RH (BLACK) | FOR 019

47111-29FC0-019

$95.70

COVER, FRAME RH (WHITE) | FOR 8YM

47111-29FC0-30H

$57.40

SHIELD, FRAME COVER RH

47166-29F00

$82.92

COVER, FRAME LH (BLACK) | FOR 019

47211-29FC0-019

$82.75

COVER, FRAME LH (WHITE) | FOR 8YM

47211-29FC0-30H

$82.75

BOLT (6X12)

09103-06273

$2.26

WASHER This part replaces 09169-06031.

09169-06041

$2.20

CUSHION

09320-06504

$4.96

CUSHION

09321-10018

$5.45

CUSHION, LH COVER FRONT

47161-29F00

$6.11

CUSHION, RH COVER FRONT

71762-65G10

$8.28

TAPE, RH | FOR 019

68135-29FF0-HMS

Unavailable

TAPE, RH | FOR 8YM

68135-29FG0-HMT

Unavailable
