Description

Price

1

CLEANER, AIR

13701-29FB2

$382.36

2

FILTER, AIR CLEANER

13780-44E00

$39.84

3

HOLDER, FILTER

13791-44E00

$15.16

4

SPACER

13796-44E00

$3.62

5

SPRING

13941-29F00

$33.96

6

TUBE, OUTLET

13881-29FB0

$80.28

7

CLAMP, OUTLET TUBE

13826-29F00

$7.97

8

CLAMP

09402-64203

$6.58

9

VALVE

13872-29F00

$10.23

10

TUBE, INLET

13891-29FA0

$39.52

11

JOINT, BREATHER HOSE

13858-14D20

$7.22

12

GASKET, AIR CLEANER

13746-29F00

$5.74

13

CAP, AIR CLEANER (BLACK) | FOR 019

13740-29FB1-019

$198.43

13

CAP, AIR CLEANER (WHITE) | FOR 8YM

13740-29FB1-30H

$200.83

14

BOLT

01547-0616A

$2.03

15

BOLT (6X14.6)

09111-06054

$3.70

16

TUBE BREATHER This part replaces 13850-29FA1.

13850-29FA2

$12.08

17

CLIP

09401-14101

$2.34

18

TAPE, AIR CLEANER CAP | FOR 019

68145-29FF0-HMS

Unavailable

18

TAPE, AIR CLEANER CAP | FOR 8YM

68145-29FG0-HMT

$75.03

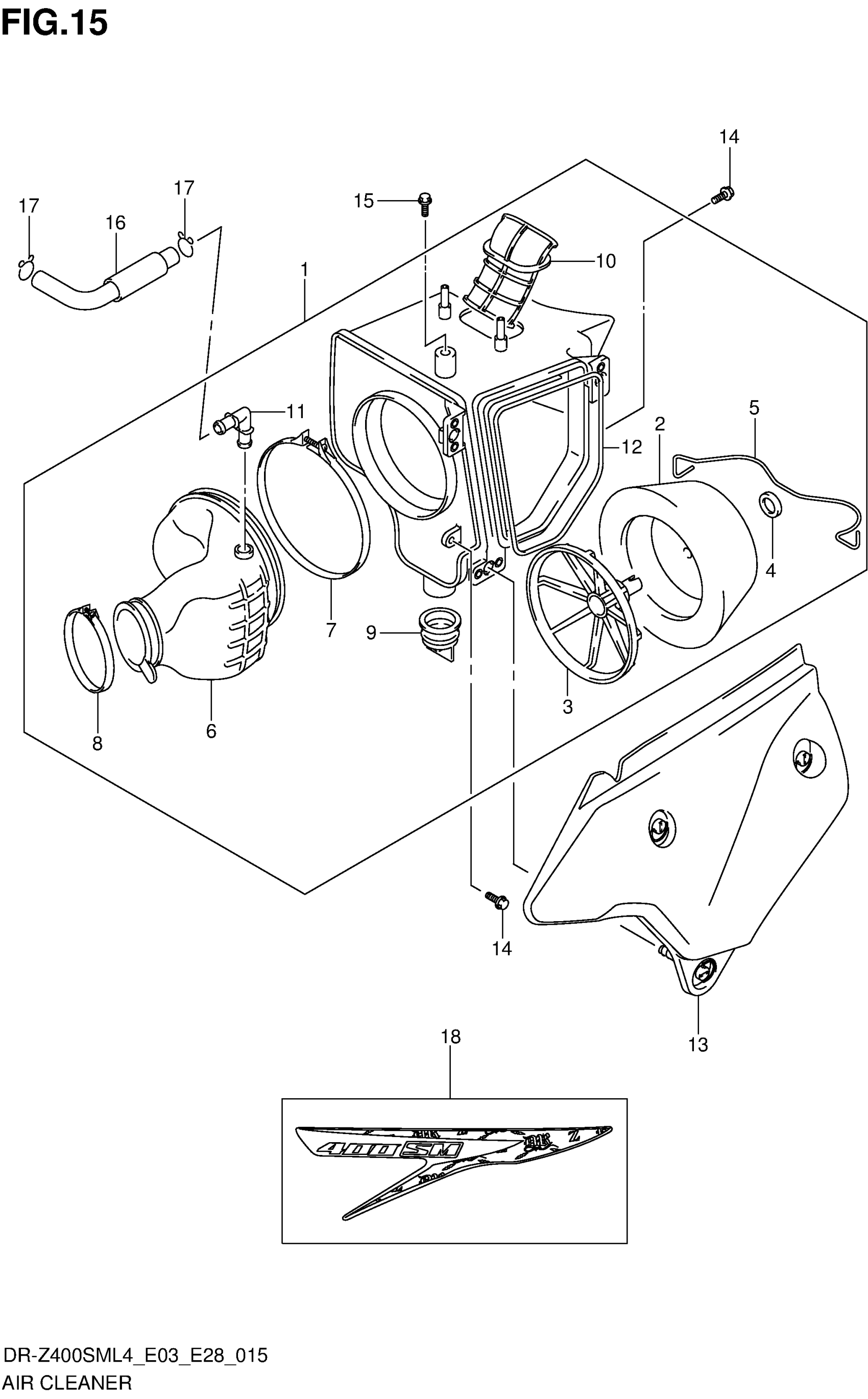

Suzuki DR-Z400SML4 (2014) AIR CLEANER Diagram
