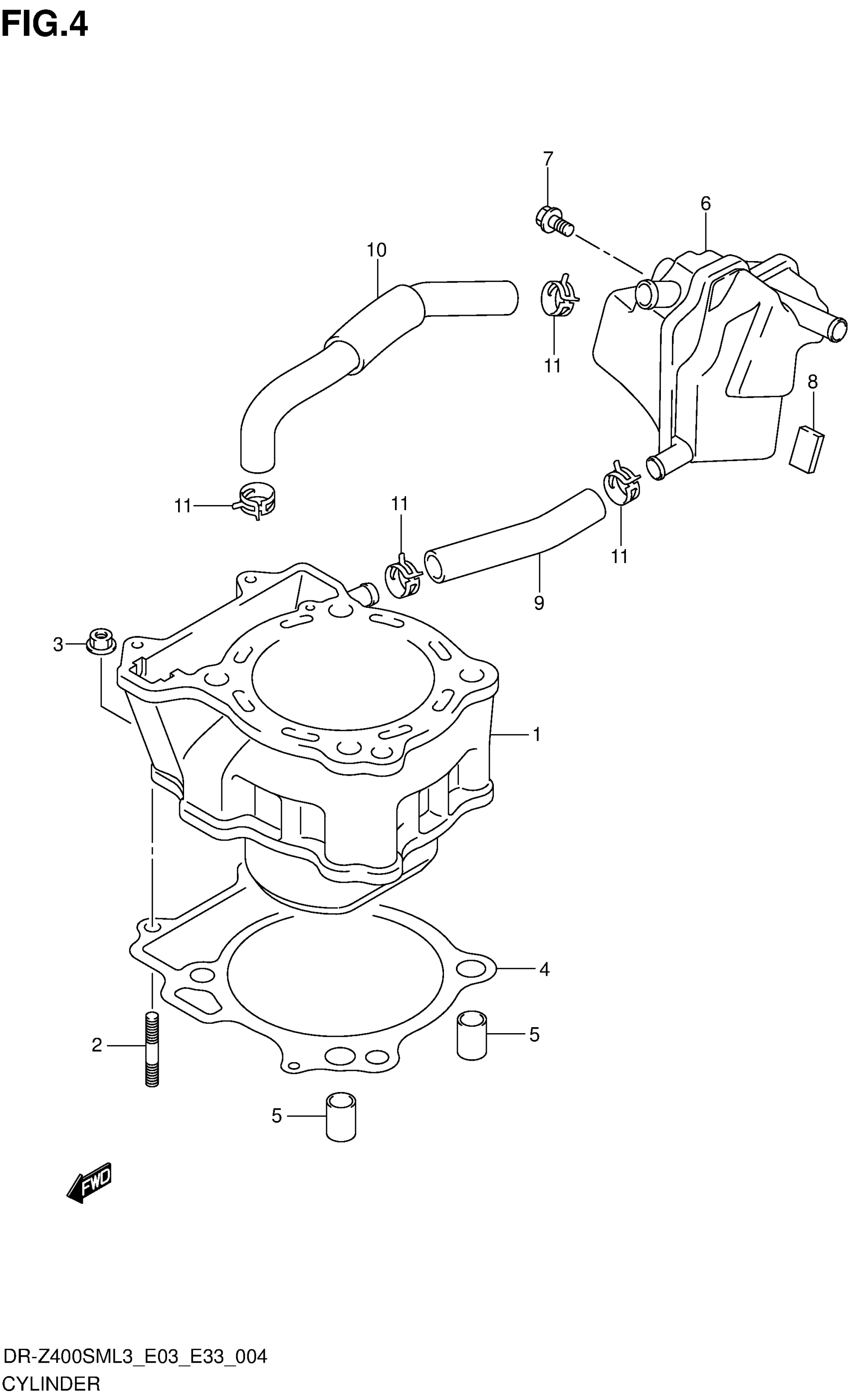

Suzuki DR-Z400SML3 (2013) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-29F20-0F0

$972.32

2

STUD BOLT

01421-0625A

$1.99

3

NUT

08316-1006A

$2.19

4

GASKET, CYLINDER

11241-29F11

$23.37

5

PIN

04211-13189

$2.19

6

TANK, OIL RETURN

11330-29F00

$47.41

7

BOLT

01550-0610A

$1.97

8

CUSHION, OIL RETURN TANK

33651-37000

$4.48

9

HOSE, BREATHER

11332-29F00

$11.02

10

HOSE, BREATHER

11333-29F00

$21.49

11

CLIP

09401-15404

$2.26
