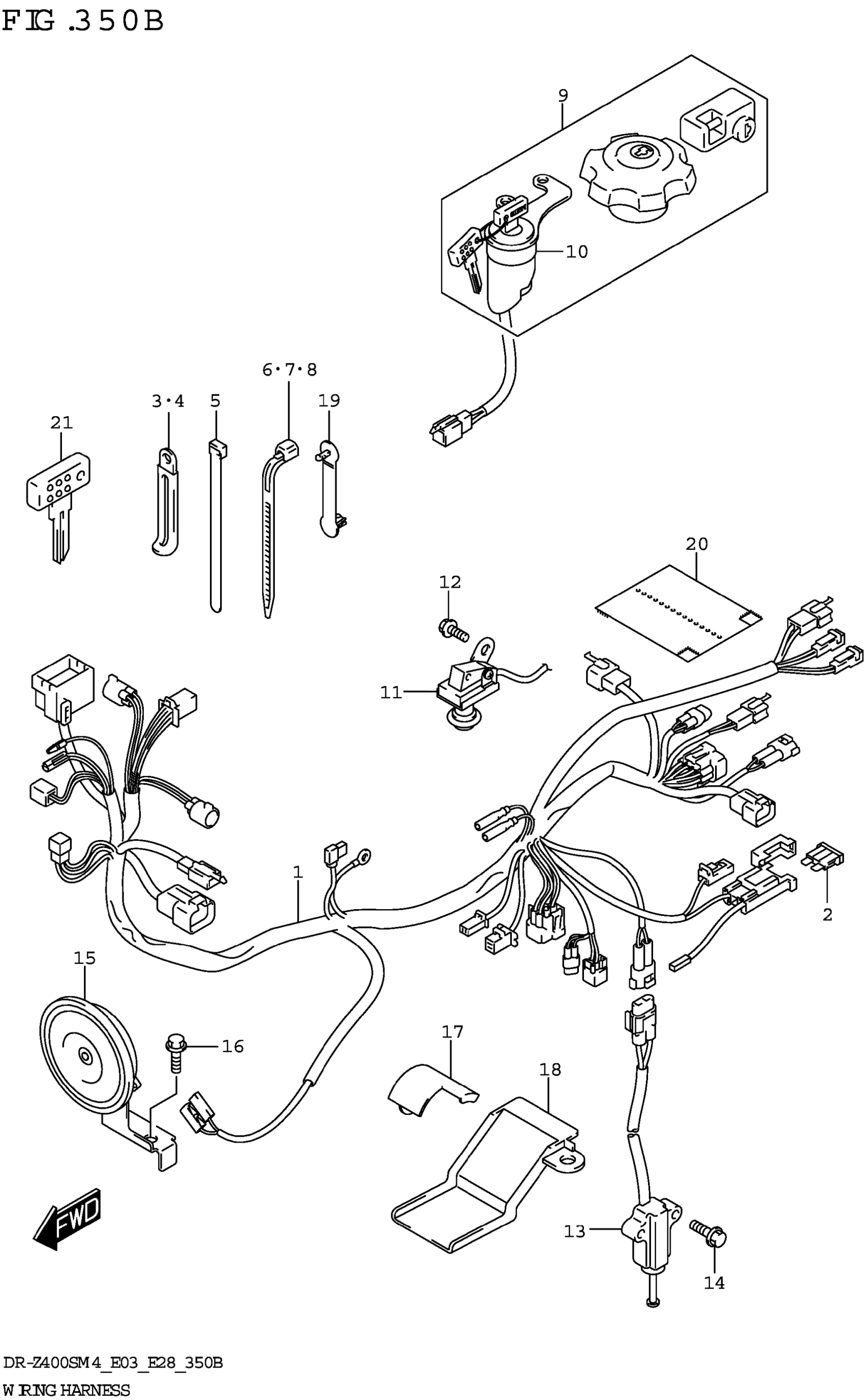

Suzuki DR-Z400SM4 (2024) WIRING HARNESS (DR-Z400SM:(E03 E28)) Diagram

#

Description
Price

1

HARNESS WIRING

36610-29FF1

$324.00

2

.FUSE (20A)

09481-20101

$2.12

3

CLAMP (L:45)

09404-06429

$1.83

4

CLAMP (L:80)

09404-06030

Unavailable

5

CLAMP (L:145)

09407-14407

$3.57

6

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP (L:165)

09407-18402

$2.19

8

CLAMP (L:235)

09407-25401

$4.66

9

LOCK SET This part replaces 37101-29812.

37101-29814

$157.20

10

SWITCH ASSY,IGN This part replaces 37110-29FA0.

37110-29FA1

$138.97

11

SWITCH ASSY

37740-29F00

$110.12

12

SCREW

02162-0608B

$2.53

13

SWITCH ASSY,SID This part replaces 37840-11D11.

37840-11D12

$52.92

14

BOLT

01550-0616A

$1.97

15

HORN ASSY

38500-29F01

$85.15

16

BOLT

01550-0612A

$1.97

17

PROTECTOR WIRING HARNESS

36611-29F10

Unavailable

18

PROTECTOR WIRING HARNESS

36611-29F00

$9.00

19

CLAMP (L:63)

36651-48E00

$3.25

20

COVER WIRING HARNESS

36618-15D21

$18.87

21-1

KEY BLANK (TYPE:C) | OPT

37146-01F00

$9.09

21-2

KEY BLANK (TYPE:D) | OPT

37146-01F10

$9.09

21-3

KEY BLANK (TYPE:E) | OPT

37146-01F20

$9.09

21-4

KEY BLANK (TYPE:F) | OPT

37146-01F30

$11.05
