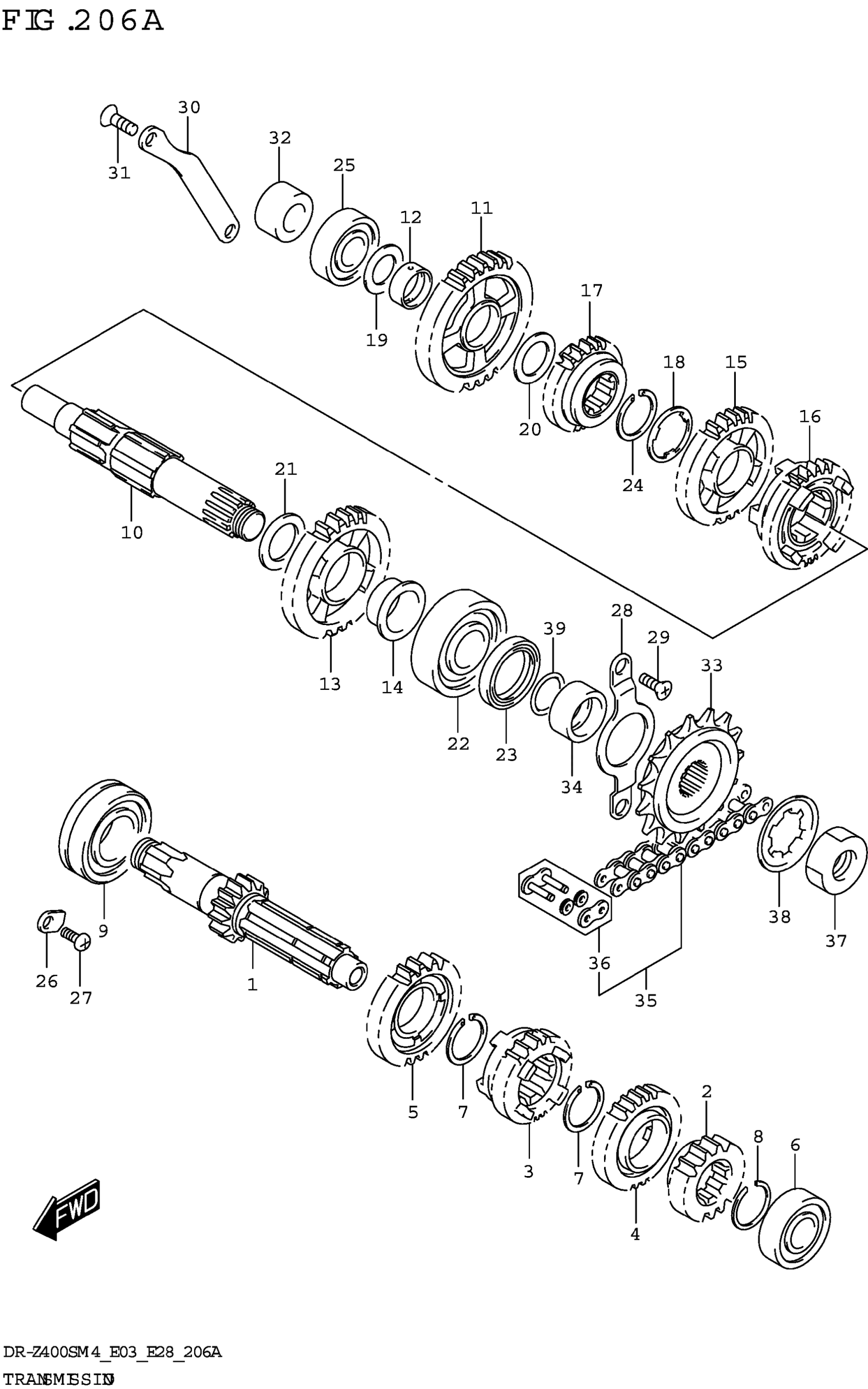

Suzuki DR-Z400SM4 (2024) TRANSMISSION Diagram

#

Description
Price

1

SHAFT COUNTER (NT:14)

24120-05D20

$268.15

2

GEAR 2ND DRIVE (NT:15)

24221-28C20

$117.48

3

GEAR 3RD DRIVE (NT:16)

24231-05D02

$134.48

4

GEAR 4TH DRIVE (NT:22)

24241-05D01

$117.48

5

GEAR 5TH DRIVE (NT:22)

24251-05D00

$117.48

6

BEARING (17X40X12)

09262-17027

$35.28

7

CIRCLIP

09380-25010

$2.91

8

CIRCLIP

09380-25013

$4.17

9

BEARING (25X52X15)

09262-25003

$24.83

10

SHAFT DRIVE

24130-05D21

$205.00

11

GEAR 1ST DRIVEN (NT:32)

24311-05D00

$124.28

12

BUSH 1ST DRIVEN GEAR

24312-29F00

$22.75

13

GEAR 2ND DRIVEN (NT:26)

24321-28C02

$121.98

14

BUSH 2ND DRIVEN GEAR

24322-44E10

$36.02

15

GEAR 3RD DRIVEN (NT:22)

24331-05D01

$126.18

16

GEAR 4TH DRIVEN (NT:24)

24341-05D01

$137.02

17

GEAR 5TH DRIVEN (NT:19)

24351-05D20

$124.28

18

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

19

SHIM (17X30X1)

09181-17223

$2.96

20

SHIM (20X30X1)

09181-20195

$2.60

21

SHIM (22X34X1)

09181-22223

$3.12

22

BEARING (22X56X16)

09262-22024

$70.13

23

OIL SEAL (30X40X6)

09283-30053

$9.24

24

CIRCLIP

09380-25010

$2.91

25

BEARING

08113-6203A

$12.40

26

RETAINER

24741-21A00

$2.81

27

SCREW (6X12)

09125-06122

$2.44

28

RETAINER DRIVE SHAFT OIL SEAL

24751-29F00

$7.11

29

SCREW (6X14)

09126-06007

$2.03

30

RETAINER KICK IDLE GEAR

26264-29F00

$13.05

31

SCREW

02122-0616A

$1.49

32

SPACER (17X30.5X16.3)

09180-17055

$10.97

33

SPROCKET,ENGINE This part replaces 27510-29E11.

27510-29E20

$28.87

34

SPACER ENGINE SPROCKET

27531-29F00

$23.37

35

CHAIN ASSY DRIVE (RK520KZO 11 | L)

27600-29F30-112

$166.28

36

.JOINT SET DRIVE CHAIN

27620-29F30

$21.55

37

NUT

09140-18006

$4.83

38

WASHER LOCK (22.5X40.3X0.8)

09167-22012

$1.54

39

O RING (D:2.5,ID:21)

09280-21008

$1.91
