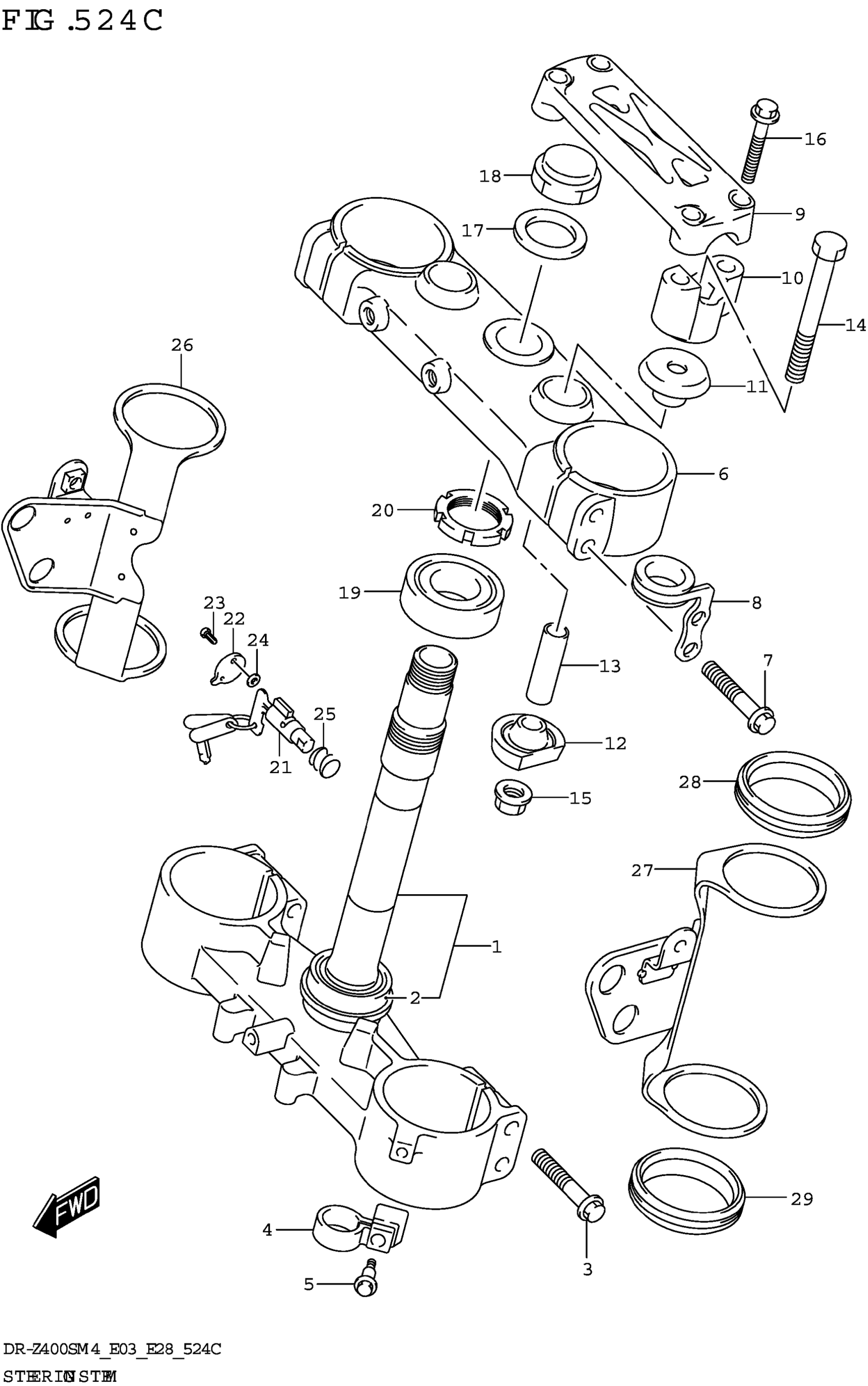

Suzuki DR-Z400SM4 (2024) STEERING STEM (DR-Z400SM) Diagram

#

Description
Price

1

BRACKET FR FORK UNDER

51410-29F71

$718.10

2

.BEARING (30X52X16)

09265-30035

$42.15

3

.BOLT

51166-35F00

$6.86

4

GUIDE FRONT BRAKE HOSE

58621-29F00

$16.53

5

BOLT (6X20.5)

09111-06087

$3.30

6

BRACKET UPPER

51311-29F70

$527.62

7

.BOLT

51166-35F00

$6.86

8

GUIDE CABLE

51280-29F00

$29.88

9

HOLDER HANDLE BAR UPPER

56211-29FA0

$108.68

10

HOLDER HANDLE LOWER

56221-35G00

$65.62

11

CUSHION RUBBER UPPER

56241-42AE1

$26.03

12

CUSHION RUBBER UNDER

56242-28C61

$26.90

13

SPACER

56243-42A00

$9.07

14

BOLT

56321-35G00

$5.26

15

NUT

08319-31107

$2.73

16

.BOLT

51166-35F00

$6.86

17

WASHER,STEM HEAD

51356-29E00

$20.30

18

NUT

51353-27G00

$38.16

19

.BEARING (30X52X16)

09265-30035

$42.15

20

NUT STEERING

51631-28E00

$32.60

21

LOCK ASSY STEERING

51900-29F00

$231.35

22

CAP STEERING LOCK

51912-29F00

$7.03

23

PIN STEERING LOCK

51913-29F00

$5.65

24

WASHER STEERING LOCK

51914-29F00

$5.43

25

SPRING STEERING LOCK

51931-29F00

$4.90

26

BRACKET HEADLAMP HOUSING R

51530-29F10

$69.00

27

BRACKET HEADLAMP HOUSING L

51540-29F10

$69.00

28

DAMPER HEADLAMP BRACKET UPPER

51553-29F10

$11.92

29

DAMPER HEADLAMP BRACKET LOWER

51553-29F20

$11.92
