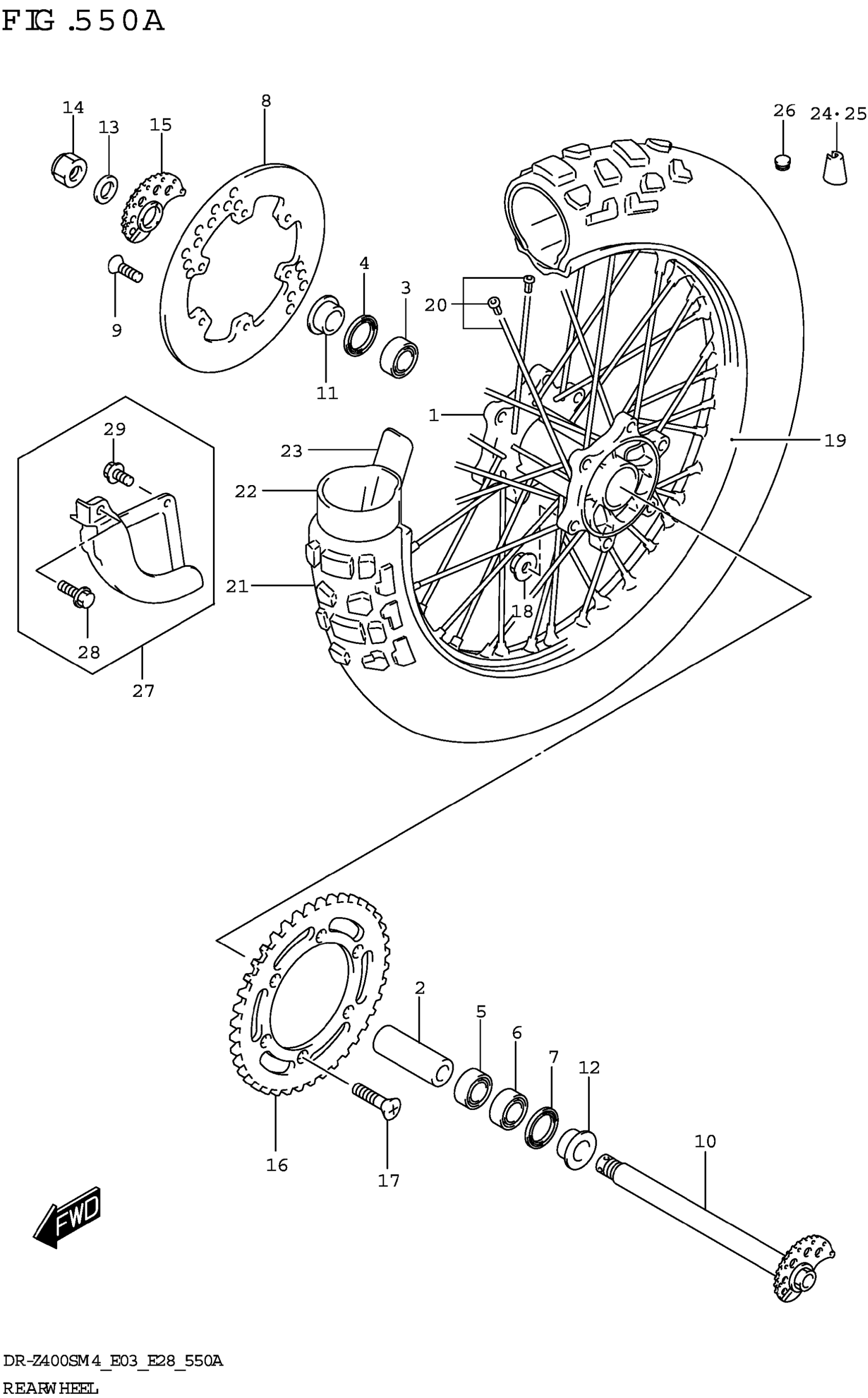

Suzuki DR-Z400SM4 (2024) REAR WHEEL (DR-Z400S) Diagram

#

Description
Price

1

HUB REAR WHEEL

64111-29F10

$472.30

2

SPACER RR HUB BEARING

64731-29F00

$31.80

3

BEARING

09262-20175

$29.17

4

SEAL (29X42X6)

64841-28E01

$7.89

5

BEARING

09262-20175

$29.17

6

BEARING

08123-6204B

$17.41

7

SEAL OIL (29X47X6)

09283-29006

$11.53

8

DISC RR BRAKE

69211-43D00

$299.30

9

SCREW (6X18)

09120-06014

$2.45

10

AXLE RR

64710-29F00

$146.12

11

SPACER RR AXLE

64751-28E20

$27.30

12

SPACER RR AXLE

64751-28E20

$27.30

13

WASHER (19X32X3.2)

09160-19022

$4.90

14

NUT

08319-2118A

$4.90

15

ADJUSTER CHAIN R

61410-29F00

$26.57

16

SPROCKET RR (NT:44)

64511-14D80

$66.92

17

BOLT (8X30.5)

09120-08010

$2.36

18

NUT

08319-3108A

$2.32

19

RIM RR WHEEL (18X2.15)

65311-29F90

$360.92

20

SPOKE SET REAR WHEEL

65320-29F00

$109.88

21

TIRE RR

65110-29F11

$289.58

22

TUBE ASSY WHEEL INNER

65200-29E01

$75.82

23

PROTECTOR WHL INR TUBE

65261-14E01

$8.18

24

BALANCER,WHEEL (20G)

55412-41F00

$8.12

25

BALANCER WHEEL (30G)

55413-41F00

$7.50

26

CAP (OD:12)

09250-08013

$2.68

27

COVER SET RR BRAKE DISC

69200-28C00

$28.44

28

BOLT

01550-0620B

$2.39

29

BOLT

01550-0612A

$1.97
