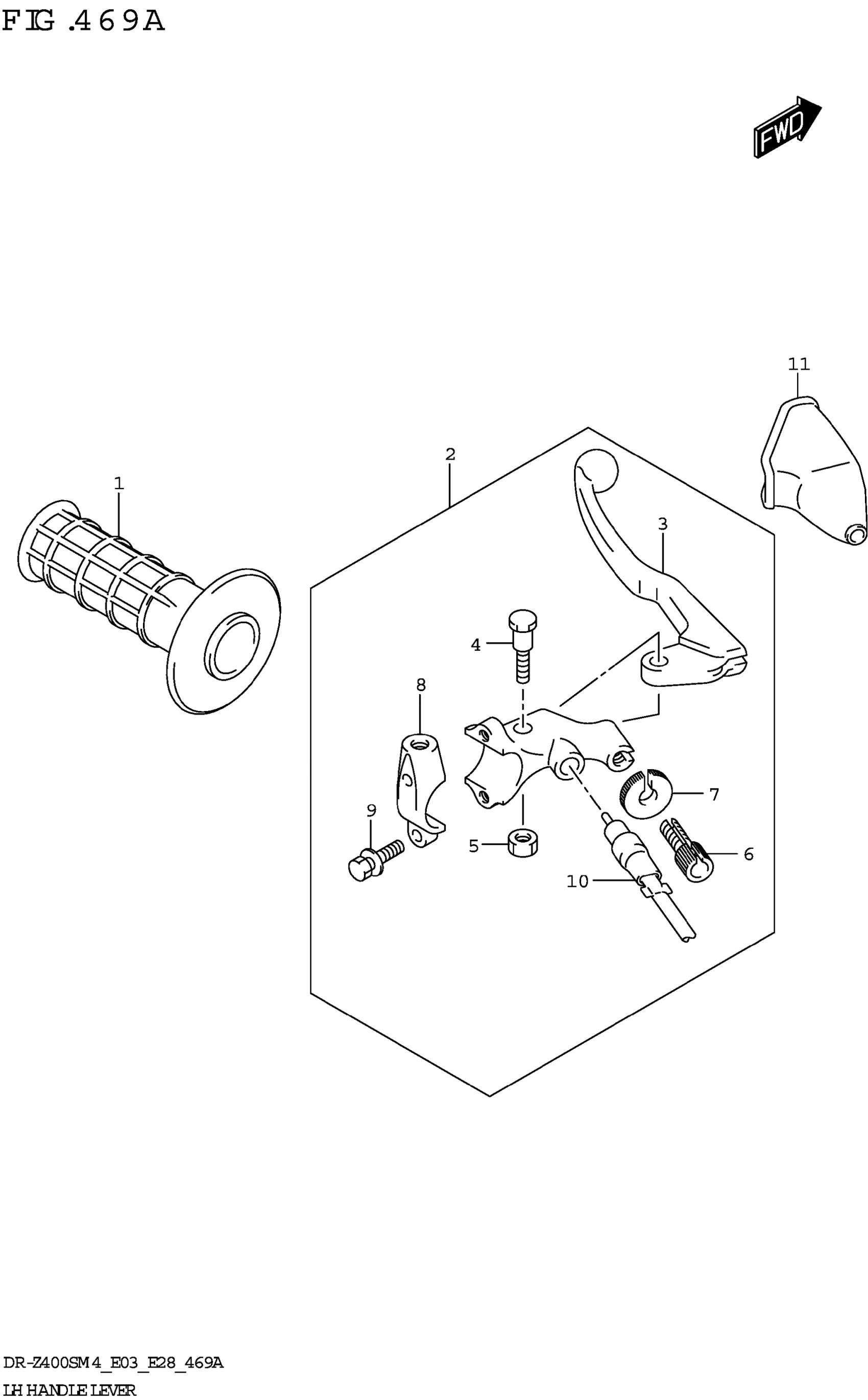

Suzuki DR-Z400SM4 (2024) LH HANDLE LEVER Diagram

#

Description
Price

1

GRIP L

57211-12D00

$15.29

2

LEVER ASSY CLUTCH

57500-29F32

$62.69

3

.LEVER, CLUTCH

57621-13E00

$11.69

4

..BOLT,LEVER PIVOT

57431-21D11

$8.94

5

.NUT

08319-2106A

$1.89

6

.ADJUSTER, WIRE

57441-29F01

$12.78

7

.NUT, LOCK

57442-45C01

$7.92

8

.BRACKET HOLDER

57512-13E00

$29.07

9

.BOLT BRACKET

57513-13E00

$7.03

10

.SWITCH ASSY CLUTCH

57560-29F31

$38.22

11

COVER, CLUTCH CABLE DUST

57341-29F02

$10.83
