Description

Price

1

HEADLAMP ASSY

35100-12EA0-999

$494.00

2

.UNIT ASSY

35121-12EA0

$177.30

3

.NUT ADJUSTING

35135-12E20

$4.20

4

.SCREW MOUNTING

35136-38A00

$4.53

5

.CUSHION

35139-45230

$2.25

6

.HOUSING

35141-12EA0

$126.22

7

.SCREW ADJUSTING

35151-12EA0

$7.03

8

.SPRING ADJUSTING

35154-12EA0

$7.82

9

.NUT

35135-45900

$3.67

10

.COVER SOCKET

35173-01440

$19.60

11

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$22.69

12

CUSHION HEADLAMP

36920-44A01

$7.22

13

BOLT (6X20)

09116-06167

$2.19

14

SPACER (6.5X10X10)

09180-06310

$1.92

15

CUSHION

09320-09018

$2.28

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

17

BRACKET FRONT SIDE RR

35956-29F00

$16.85

18

NUT

08316-1005B

$2.50

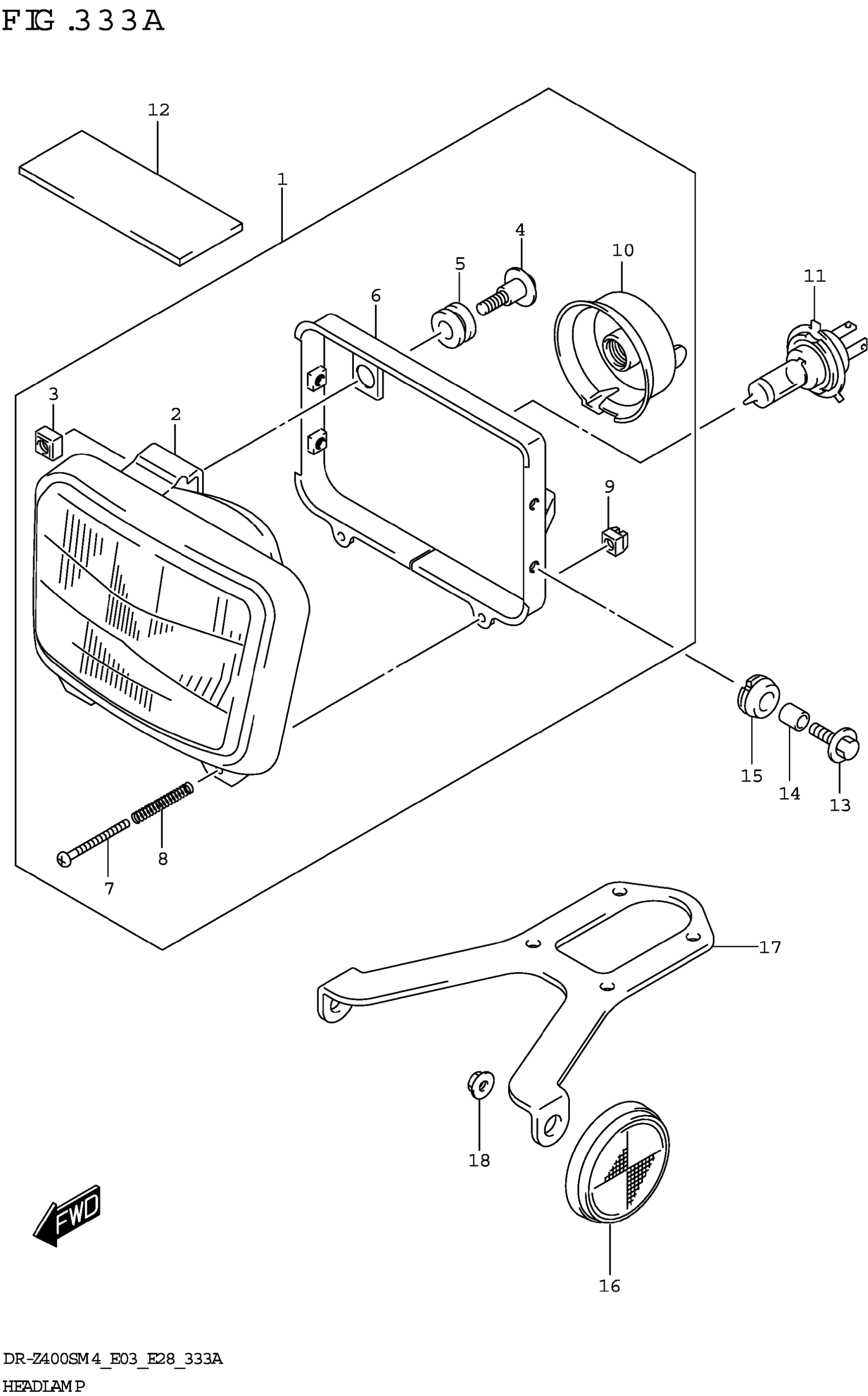

Suzuki DR-Z400SM4 (2024) HEADLAMP (DR-Z400S) Diagram
