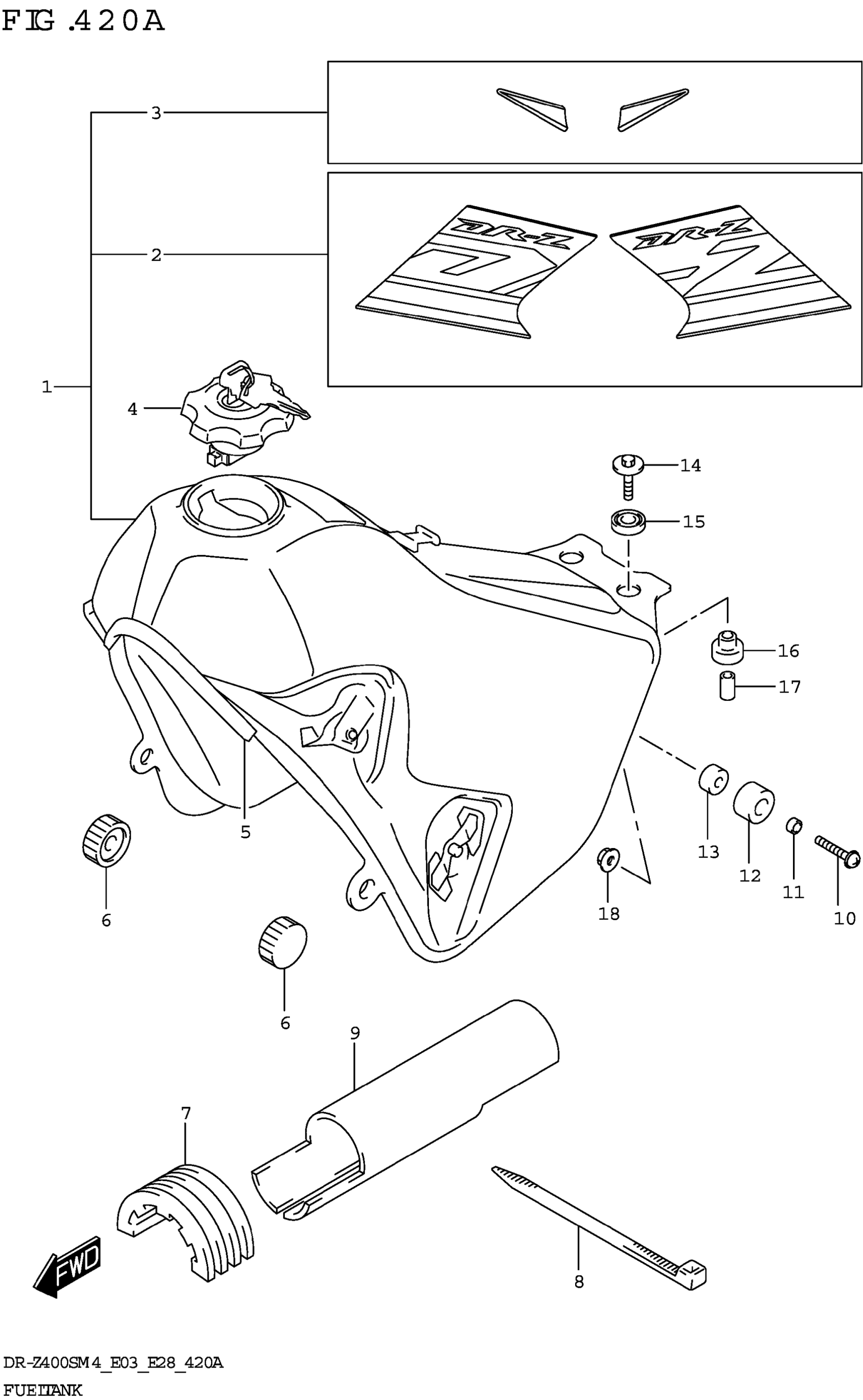

Suzuki DR-Z400SM4 (2024) FUEL TANK (DR-Z400S:(E03 E28)) Diagram

#

Description
Price

1-1

TANK ASSY FUEL (BLACK) | BODY COLOR:019

49200-33K20-019

$607.67

1-2

TANK ASSY FUEL (YELLOW) | BODY COLOR:YU1

49200-33K20-YU1

$607.67

2-1

.TAPE SET FUEL TANK | BODY COLOR:019

68120-29FF0-CSH

$37.45

2-2

.TAPE SET FUEL TANK | BODY COLOR:YU1

68120-29FF0-CSJ

$37.45

3-1

.TAPE SET FUEL TANK (BLACK GR | Y) BODY COLOR:019

68120-29FG0-HGU

$18.28

3-2

.TAPE SET FUEL TANK | BODY COLOR:YU1

68120-29FG0-CDZ

$18.28

4

CAP SET FUEL TANK FILLER

44200-29821

$140.27

5

MOLDING This part replaces 68241-40A10.

68241-04X50-00B

$27.30

6

CUSHION

09329-10016

$3.10

7

CUSHION FUEL TANK

44541-29F00

$34.55

8

CLAMP (L:300)

09407-30402

$4.11

9

SHIELD FUEL TANK

44194-29F00

Unavailable

10

SCREW

02112-1630B

$3.08

11

SPACER (6.5X20X9)

09180-06215

$7.95

12

CUSHION

45149-14D00

$6.63

13

SPACER (6.5X9X5)

09180-06306

$2.03

14

BOLT (6X30)

09116-06214

$2.50

15

CUSHION (14.5X24X8)

09320-14022

$3.63

16

CUSHION (9X24X18)

09320-10071

$2.60

17

SPACER (6.5X9X18)

09180-06271

$2.35

18

NUT

08319-3106B

$2.45
