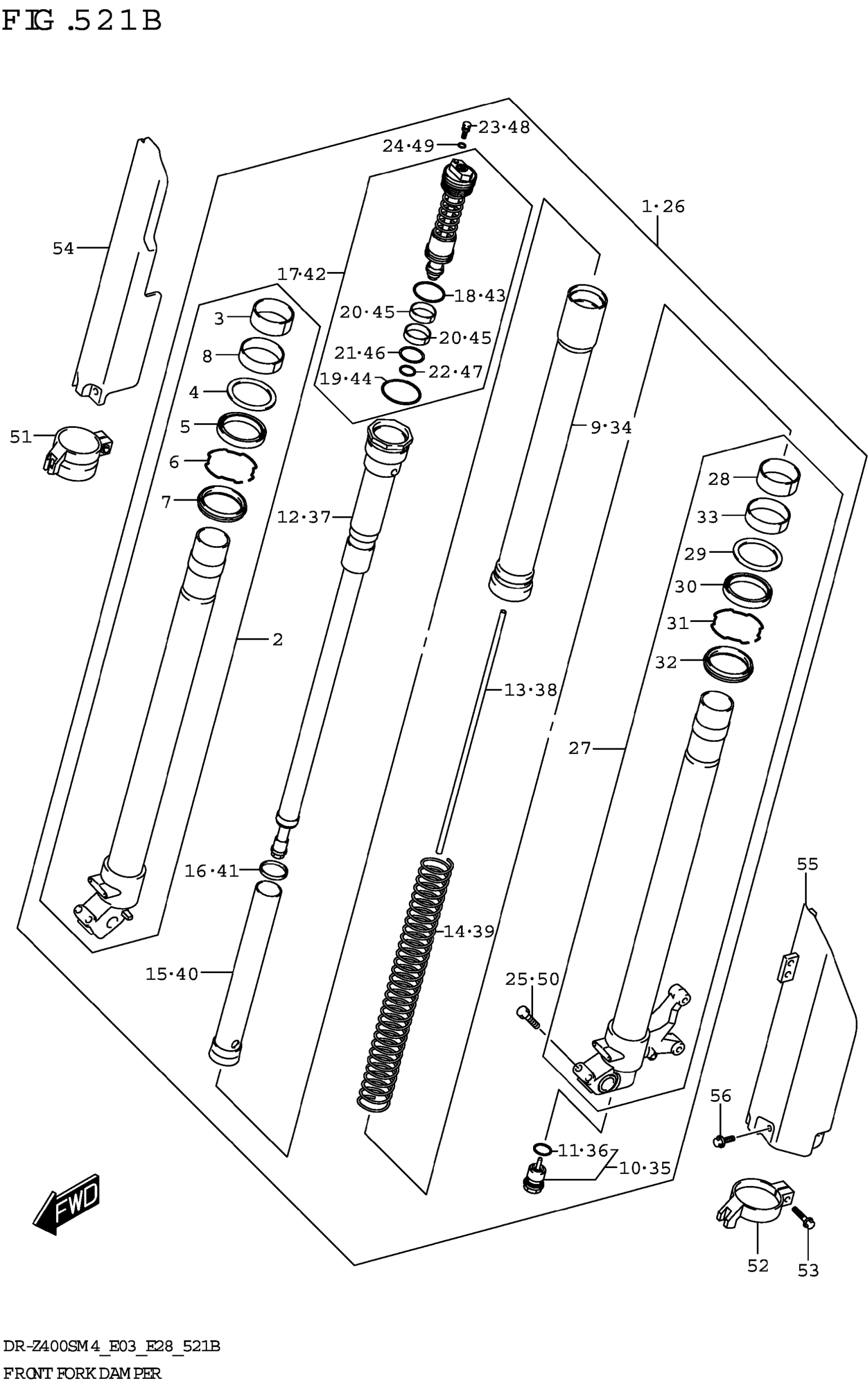

Suzuki DR-Z400SM4 (2024) FRONT FORK DAMPER (DR-Z400SM) Diagram

#

Description
Price

1

DAMPER ASSY FR FORK R

51103-29F70

Unavailable

2

.TUBE INNER R

51110-29F70

$929.18

3

..BUSH GUIDE

51167-36F00

$26.92

4

..SPACER SEAL

51158-36F00

$10.58

5

..SEAL OIL

51153-37F80

$26.99

6

..RING OIL SEAL STOPPER

51156-27C40

$4.89

7

..SEAL DUST

51173-37F80

$24.34

8

..BUSH SLIDE

51121-36F00

$31.18

9

.TUBE OUTER R

51130-29F70

Unavailable

10

.BOLT CENTER

51170-37F70

$248.52

11

..O RING

51177-36E20

$5.43

12

.DAMPER

51190-29F70

Unavailable

13

.ROD PUSH

51191-29F70

Unavailable

14

.SPRING FR

51171-29F70

Unavailable

15

.COLLAR SPRING

51198-37F70

$86.01

16

.SPRING SEAT

51178-29F70

Unavailable

17

.BOLT FORK

51351-29F70

$397.75

18

.O RING

51117-36E00

$7.83

19

..O RING

51117-36E60

$7.97

20

..BUSH FORK BOLT SLIDE

51123-28E30

$17.18

21

..O RING

51174-36E40

$5.63

22

..O RING

51175-36E20

$5.83

23

..BOLT,PLUG

51357-36F20

$15.77

24

...O-RING

51358-28E30

$4.83

25

.BOLT

51166-35F00

$6.86

26

DAMPER ASSY FR FORK L

51104-29F70

Unavailable

27

.TUBE INNER L

51120-29F70

$929.18

28

..BUSH GUIDE

51167-36F00

$26.92

29

..SPACER SEAL

51158-36F00

$10.58

30

..SEAL OIL

51153-37F80

$26.99

31

..RING OIL SEAL STOPPER

51156-27C40

$4.89

32

..SEAL DUST

51173-37F80

$24.34

33

..BUSH SLIDE

51121-36F00

$31.18

34

.TUBE OUTER R

51130-29F70

Unavailable

35

.BOLT CENTER

51170-37F70

$248.52

36

..O RING

51177-36E20

$5.43

37

.DAMPER

51190-29F70

Unavailable

38

.ROD PUSH

51191-29F70

Unavailable

39

.SPRING FR

51171-29F70

Unavailable

40

.COLLAR SPRING

51198-37F70

$86.01

41

.SPRING SEAT

51178-29F70

Unavailable

42

.BOLT FORK

51351-29F70

$397.75

43

.O RING

51117-36E00

$7.83

44

..O RING

51117-36E60

$7.97

45

..BUSH FORK BOLT SLIDE

51123-28E30

$17.18

46

..O RING

51174-36E40

$5.63

47

..O RING

51175-36E20

$5.83

48

..BOLT,PLUG

51357-36F20

$15.77

49

...O-RING

51358-28E30

$4.83

50

.BOLT

51166-35F00

$6.86

51

GUIDE PROTECTOR L

51210-36E61

$66.48

52

GUIDE PROTECTOR R

51220-36E61

$66.48

53

BOLT

01547-06207

$2.01

54-1

PROTECTOR FR FORK R (BLACK) | BODY COLOR:019 CKS

51501-29F70-019

$167.05

54-2

PROTECTOR FR FORK R (WHITE) | BODY COLOR:30H

51501-29F70-30H

$170.22

55-1

PROTECTOR FR FORK L (BLACK) | BODY COLOR:019 CKS

51511-29F70-019

$170.22

55-2

PROTECTOR FR FORK L (WHITE) | BODY COLOR:30H

51511-29F70-30H

$170.22

56

BOLT (6X10)

09103-06256

$2.27
