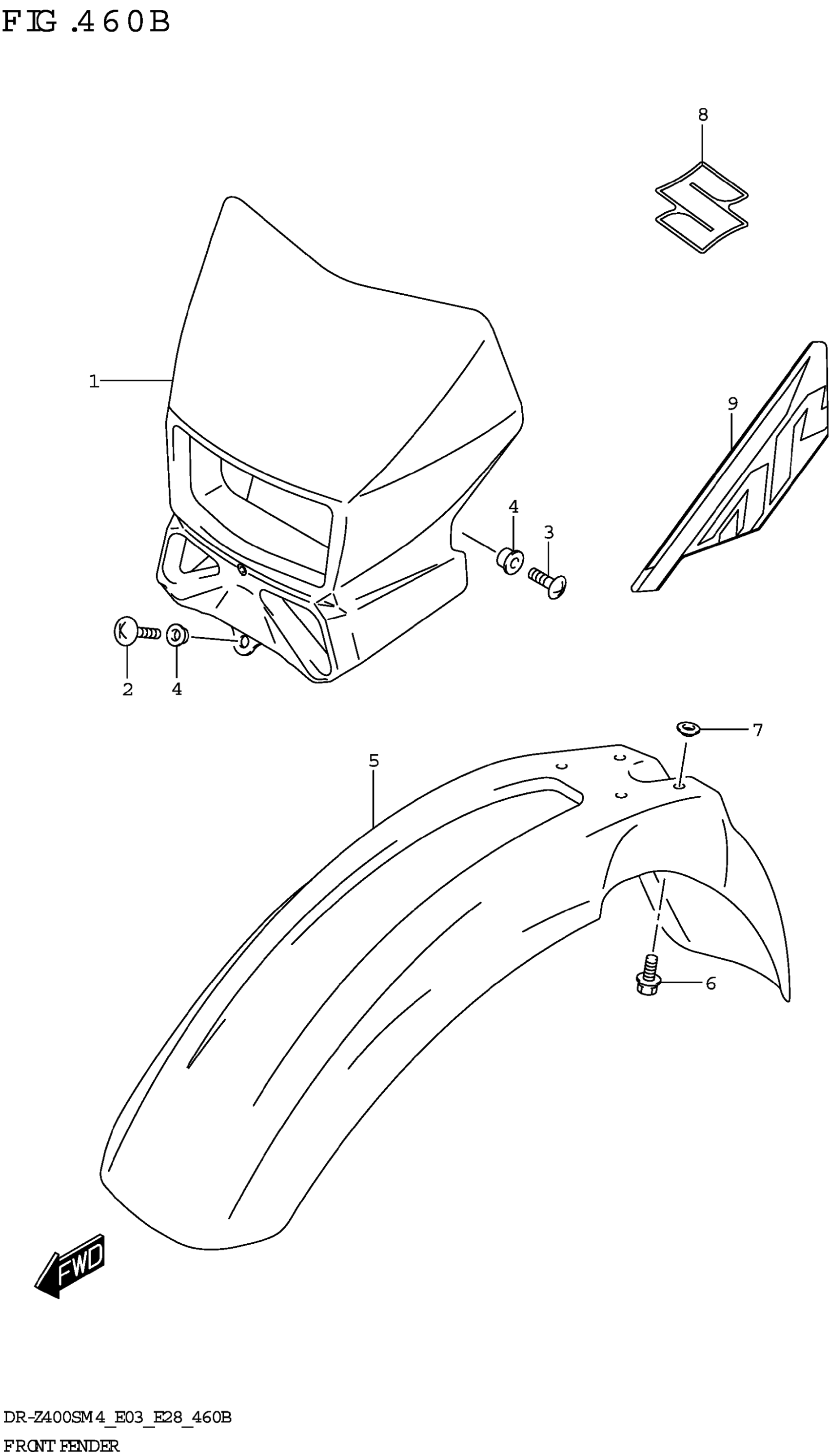

Suzuki DR-Z400SM4 (2024) FRONT FENDER (DR-Z400S) Diagram

#

Description

Price

1-1

COVER HEADLAMP (BLACK) | BODY COLOR:019

51811-29F50-019

$96.47

1-2

COVER HEADLAMP (YELLOW) | BODY COLOR:YU1

51811-29F50-YU1

$116.87

2

SCREW

02142-0512B

$2.05

3

SCREW

02142-0612B

$2.05

4

WASHER This part replaces 09169-06032.

09169-06071

$2.50

5-1

FENDER FRONT (BLACK) | BODY COLOR:019

53111-27C22-019

$160.55

5-2

FENDER FR (YELLOW) | BODY COLOR:YU1

53111-27C22-YU1

$138.02

6

BOLT (6X16)

09116-06170

$2.50

7

WASHER (6.1X17.0X4.8)

09169-06073

$3.42

8

EMBLEM "S" (GRAY)

68641-32G00-YZJ

$6.55

9-1

TAPE HEADLAMP COVER | BODY COLOR:019

68725-29FG0-CSH

$34.03

9-2

TAPE HEADLAMP COVER | BODY COLOR:YU1

68725-29FG0-CSJ

Unavailable
