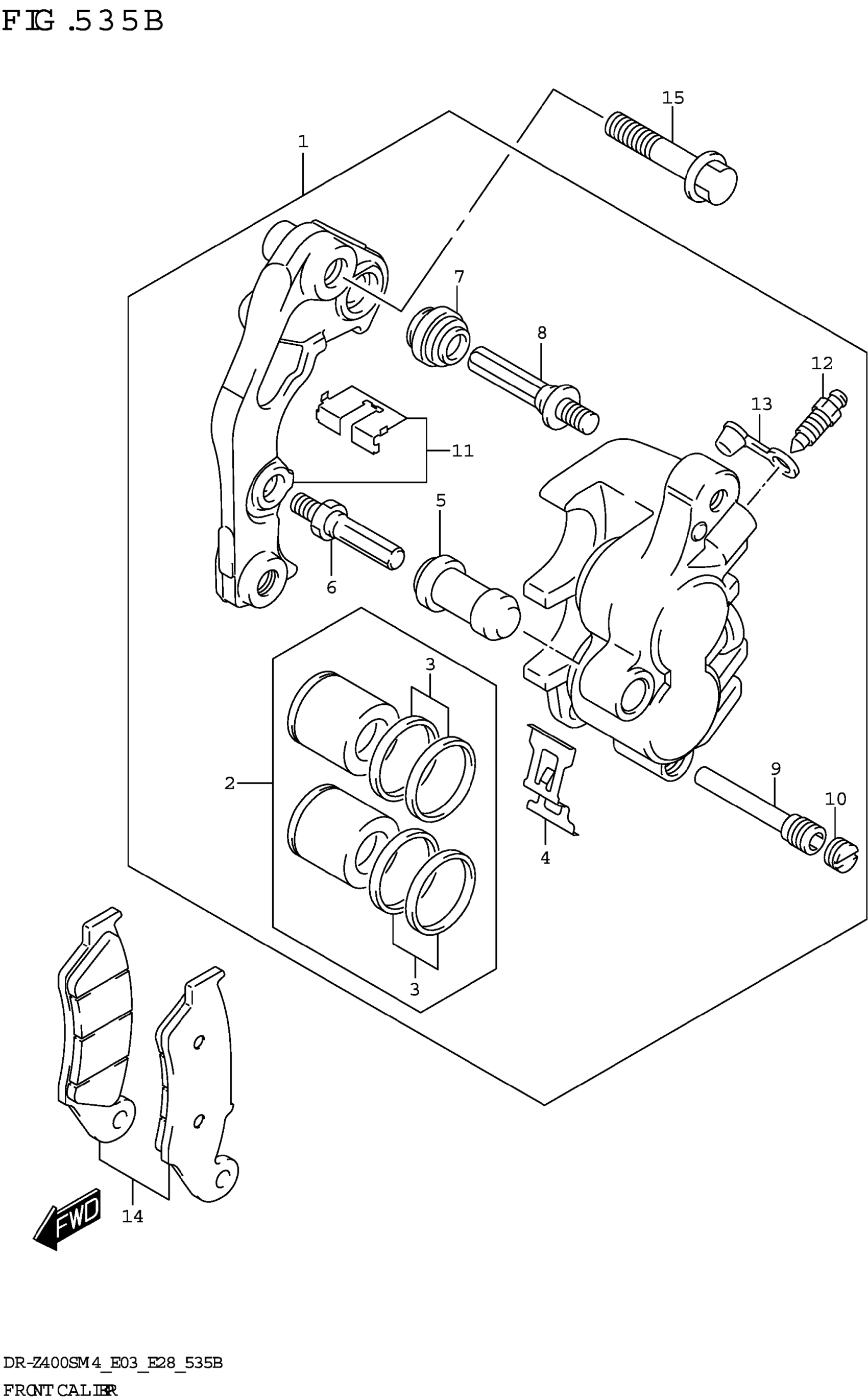

Suzuki DR-Z400SM4 (2024) FRONT CALIPER (DR-Z400SM) Diagram

#

Description
Price

1

CALIPER ASSY FR L

59300-29F01-999

$588.92

2

.PISTON SET

59300-27840

$45.51

3

..SEAL SET,PISTON

59300-13820

$21.18

4

.SPRING,PAD

59315-13E00

$13.89

5

.BOOT

59386-13A00

$7.28

6

.PIN

59382-14500

$8.43

7

.BOOT

59303-14500

$5.06

8

.PIN

59305-27C00

$26.52

9

.PIN,HANGER

59345-13E00

$13.13

10

.PLUG,PIN

59146-21E10

$5.62

11

.BRACKET

59350-29F00

$159.27

12

.BLEEDER

59121-01A00

$7.99

13

.CAP,BLEEDER

59122-46H00

$4.17

14

PAD SET

59300-29860

$37.01

15

BOLT (8X40)

09103-08338

$2.80
