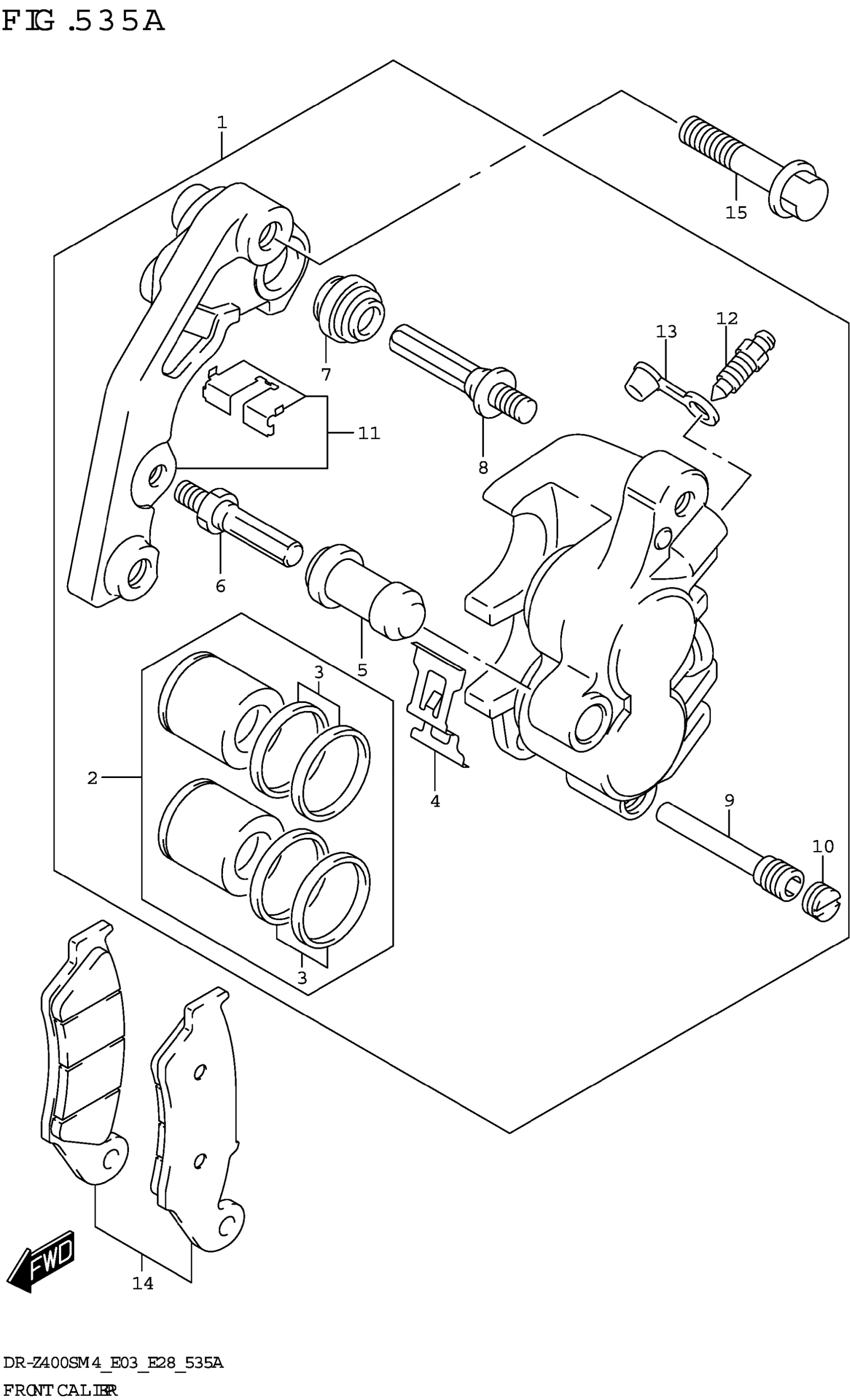

Suzuki DR-Z400SM4 (2024) FRONT CALIPER (DR-Z400S) Diagram

#

Description
Price

1

CALIPER ASSY FR L

59300-13E31-999

$587.42

2

.PISTON SET

59300-27840

$48.34

3

..SEAL SET,PISTON

59300-13820

$18.77

4

.SPRING,PAD

59315-13E00

$15.16

5

.BOOT

59386-13A00

$7.95

6

.PIN

59382-14500

$8.95

7

.BOOT

59303-14500

$5.52

8

.PIN

59305-27C00

$23.48

9

.PIN,HANGER

59345-13E00

$14.34

10

.PLUG,PIN

59146-21E10

$6.15

11

.BRACKET

59350-13E00

$135.95

12

.BLEEDER

59121-01A00

$8.73

13

.CAP,BLEEDER

59122-01A00

$4.34

14

PAD SET

59300-13860

$39.02

15

BOLT (8X40)

09103-08338

$2.96
