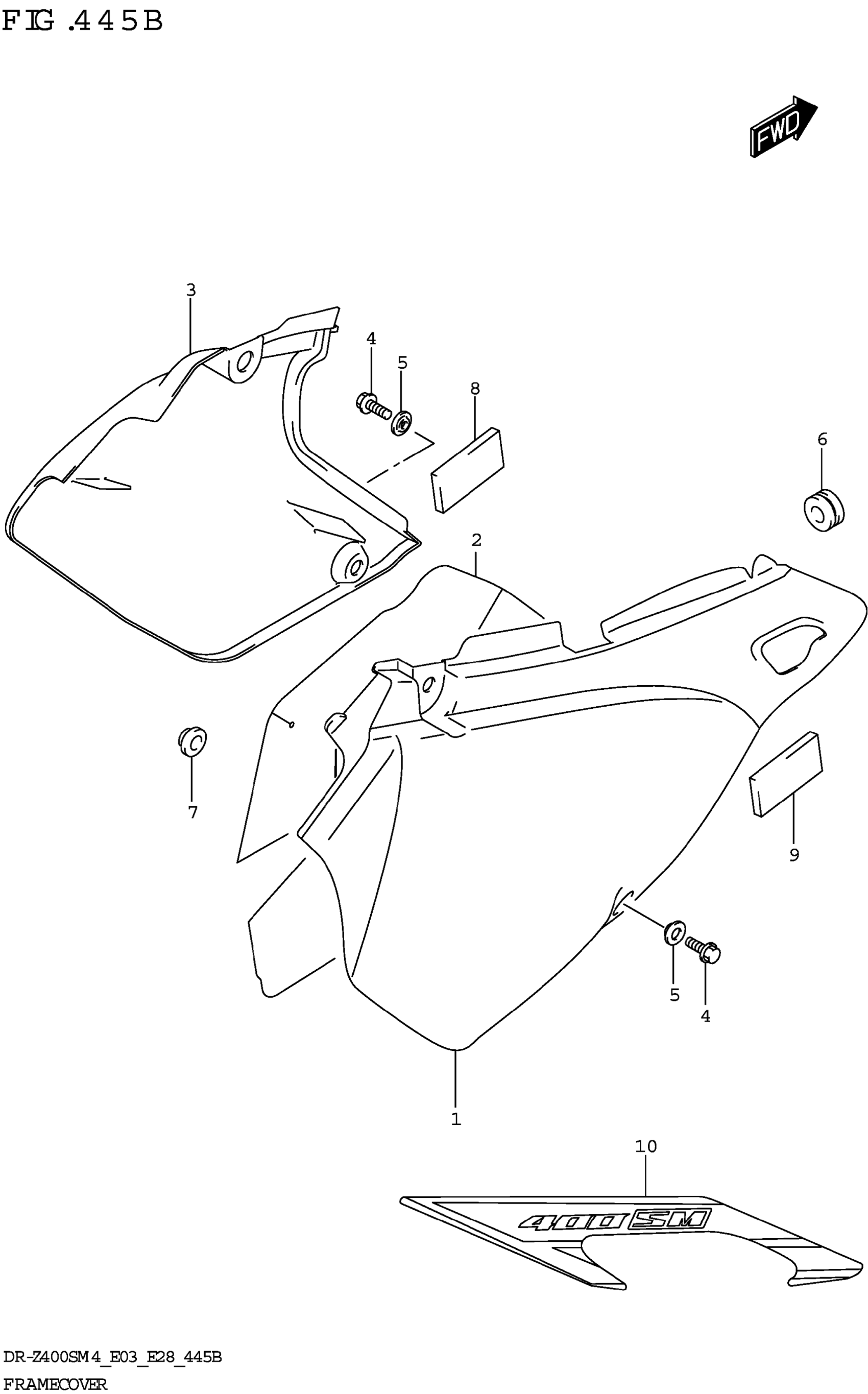

Suzuki DR-Z400SM4 (2024) FRAME COVER (DR-Z400SM:E33) Diagram

Description

Price

1-1

COVER FRAME R (BLACK) | BODY COLOR:019 CKS

47111-29FC0-019

$95.70

1-2

COVER FRAME R (WHITE) | BODY COLOR:30H

47111-29FC0-30H

$57.40

SHIELD FRAME COVER R

47166-29F00

$82.92

3-1

COVER FRAME LH (BLACK) | BODY COLOR:019 CKS

47211-29FC0-019

$82.75

3-2

COVER FRAME LH (WHITE) | BODY COLOR:30H

47211-29FC0-30H

$82.75

BOLT (6X12)

09103-06273

$2.26

WASHER This part replaces 09169-06028.

09169-06041

$2.20

CUSHION (6X18X6)

09320-06504

$4.96

CUSHION

09321-10018

$5.45

CUSHION FRAME COVER L

47161-29F00

$6.11

CUSHION (18X70X6)

71762-65G10

$8.28

10-1

TAPE FRAME COVER R | BODY COLOR:019

68135-29FP0-CSH

$34.62

10-2

TAPE FRAME COVER R | BODY COLOR:30H

68135-29FP0-CMB

Unavailable

10-3

TAPE FRAME COVER R | BODY COLOR:CKS

68135-29FP0-CMA

$34.62
