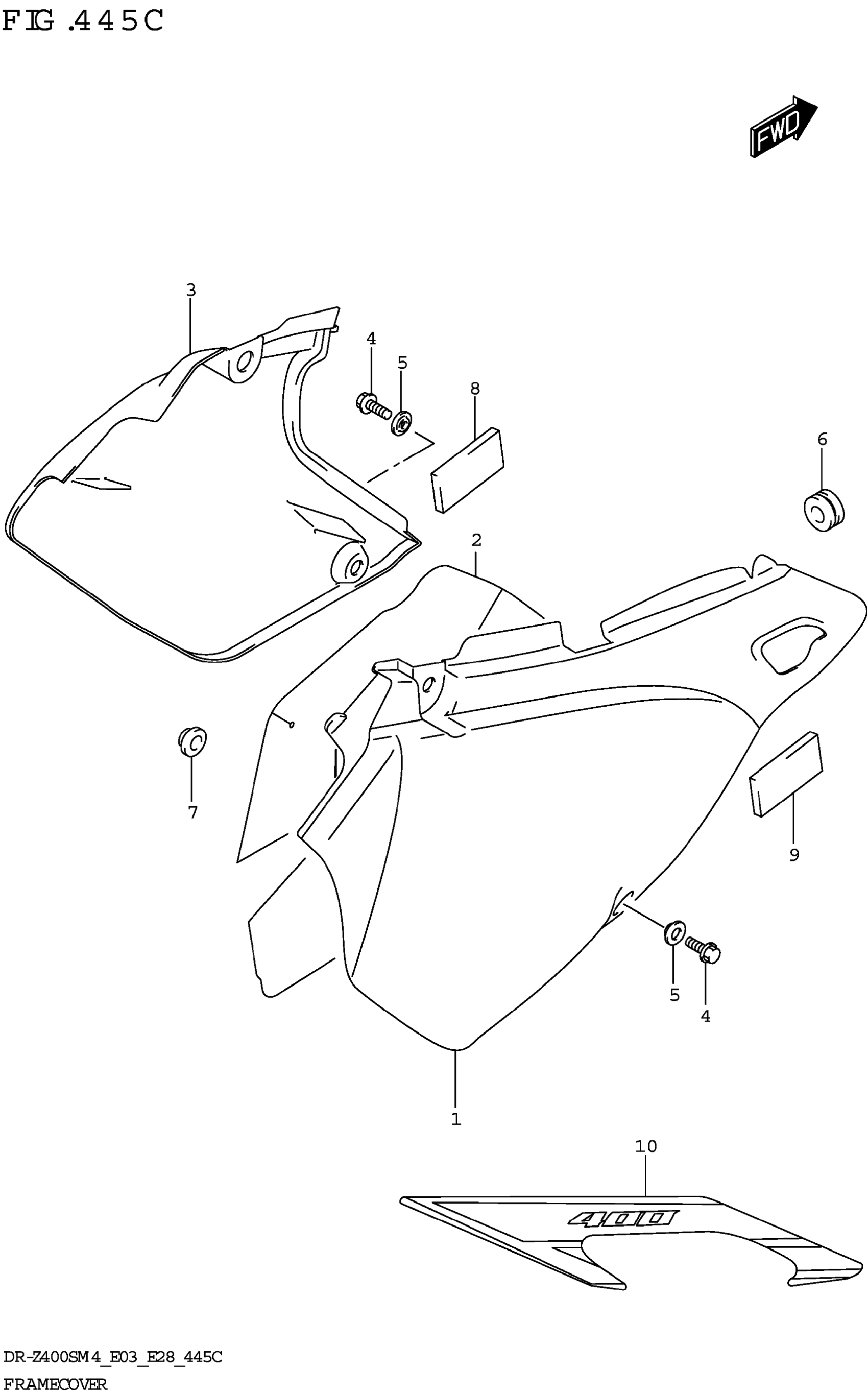

Suzuki DR-Z400SM4 (2024) FRAME COVER (DR-Z400S:(E03 E28)) Diagram

#

Description

Price

1-1

COVER FRAME R (BLACK) | BODY COLOR:019

47111-29FC0-019

$95.70

1-2

COVER FRAME R (YELLOW) | BODY COLOR:YU1

47111-29FC0-YU1

$67.12

2

SHIELD FRAME COVER R

47166-29F00

$82.92

3-1

COVER FRAME L (BLACK) | BODY COLOR:019

47211-29FA0-019

$80.03

3-2

COVER FRAME L (YELLOW) | BODY COLOR:YU1

47211-29FA0-YU1

$47.52

4

BOLT (6X12)

09103-06273

$2.26

5

WASHER This part replaces 09169-06028.

09169-06041

$2.20

6

CUSHION (6X18X6)

09320-06504

$4.96

7

CUSHION

09321-10018

$5.45

8

CUSHION FRAME COVER L

47161-29F00

$6.11

9

CUSHION (18X70X6)

71762-65G10

$8.28

10-1

TAPE FRAME COVER R | BODY COLOR:019

68135-29FQ0-CSH

$35.48

10-2

TAPE FRAME COVER R | BODY COLOR:YU1

68135-29FQ0-CSJ

$34.62
