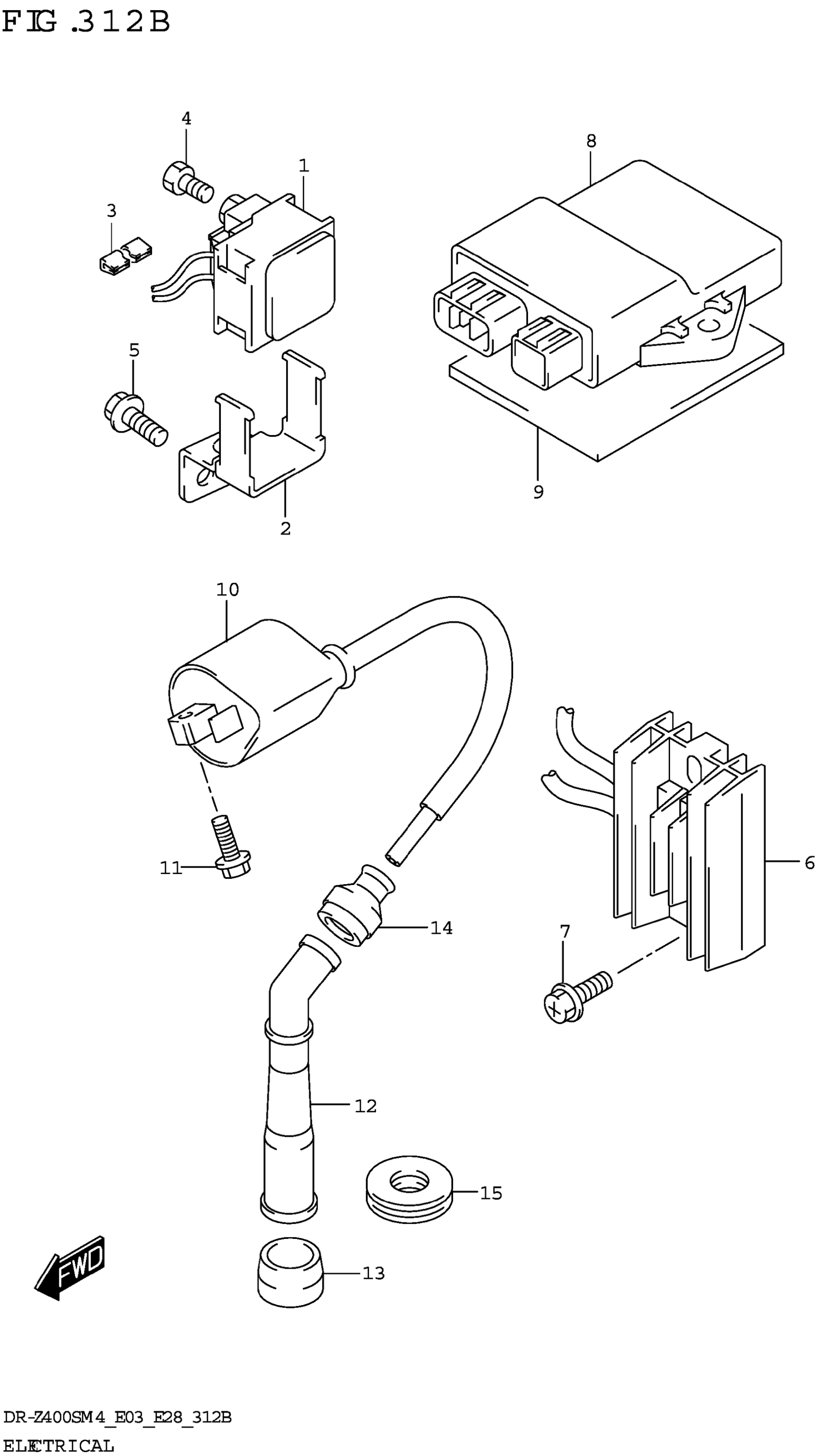

Suzuki DR-Z400SM4 (2024) ELECTRICAL (DR-Z400SM) Diagram

#

Description
Price

1

RELAY ASSY STARTING MOTOR

31800-29F01

$57.80

2

BRACKET STARTING MOTOR RELAY

31811-29F00

$8.03

3

PROTECTOR STARTING MOTOR LEAD

31812-29F00

$6.40

4

SCREW (6X8)

09128-06013

$1.24

5

BOLT

01550-0612A

$1.97

6

RECTIFIER ASSY

32800-29F00

$208.41

7

SCREW

02162-0620B

$2.19

8

CDI UNIT

32900-29FD0

$868.27

9

CUSHION (30X50X3)

33652-36000

$2.87

10

COIL ASSY IGNITION

33410-09F00

$87.46

11

BOLT

01547-0616B

$2.43

12

CAP,SPARK PLUG

33510-48B10

$29.09

13

SEAL,SPARK PLUG

33541-23E10

$6.17

14

SEAL,HIGH TENSION CORD (SIDE)

33542-48H01

$4.93

15

COVER,SPARK PLUG CAP

33543-33E01

$4.16
