Description

Price

1

CLEANER AIR

13701-29FB2

$382.36

2

.FILTER ASSY

13780-44E00

$39.84

3

.HOLDER FILTER

13791-44E00

$15.16

4

.SPACER

13796-44E00

$3.62

5

.SPRING

13941-29F00

$33.96

6

.TUBE OUTLET

13881-29FB0

$80.28

7

.CLAMP

13826-29F00

$7.97

8

.CLAMP (L:25)

09402-64203

$6.58

9

.VALVE

13872-29F00

$10.23

10

.TUBE INLET

13891-29FA0

$39.52

11

.JOINT

13858-14D20

$7.22

12

.GASKET AIR CLEANER

13746-29F00

$5.74

13-1

CAP AIR CLEANER (BLACK) | FOR 019 BODY COLOR:019

13740-29FB1-019

$198.43

13-2

CAP AIR CLEANER (WHITE) | FOR 30H CKS BODY COLOR:30H CKS

13740-29FB1-30H

$200.83

14

BOLT

01547-0616A

$2.03

15

BOLT (6X14.6)

09111-06054

$3.70

16

TUBE BREATHER

13850-29FA2

$12.08

17

.CLIP (ID:14.5)

09401-14101

$2.34

18-1

TAPE FRAME COVER L | FOR 019 BODY COLOR:019

68145-29FP0-CSH

$36.17

18-2

TAPE FRAME COVER L | FOR 30H BODY COLOR:30H

68145-29FP0-CMB

Unavailable

18-3

TAPE FRAME COVER L | FOR CKS BODY COLOR:CKS

68145-29FP0-CMA

$38.28

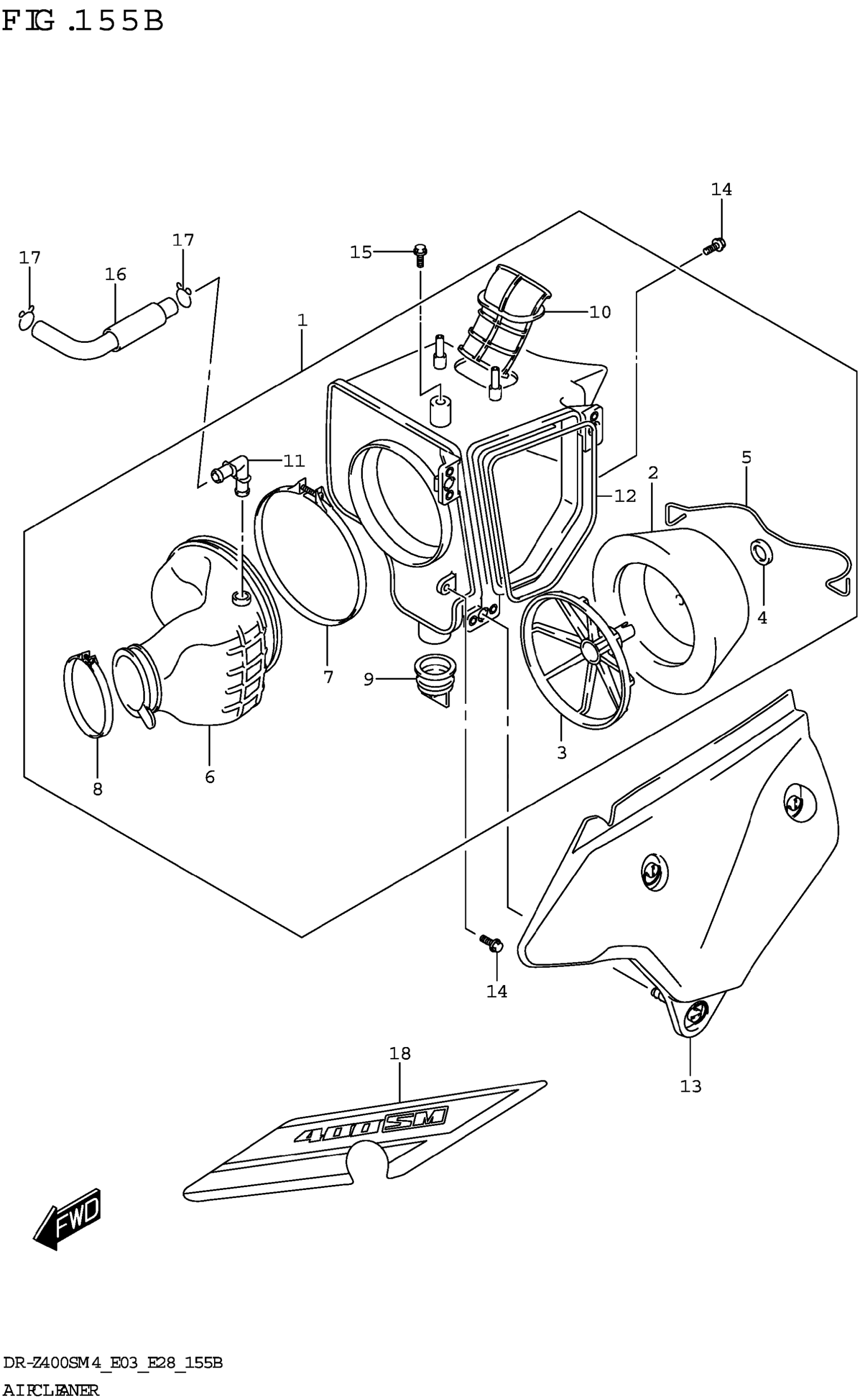

Suzuki DR-Z400SM4 (2024) AIR CLEANER (DR-Z400SM) Diagram
