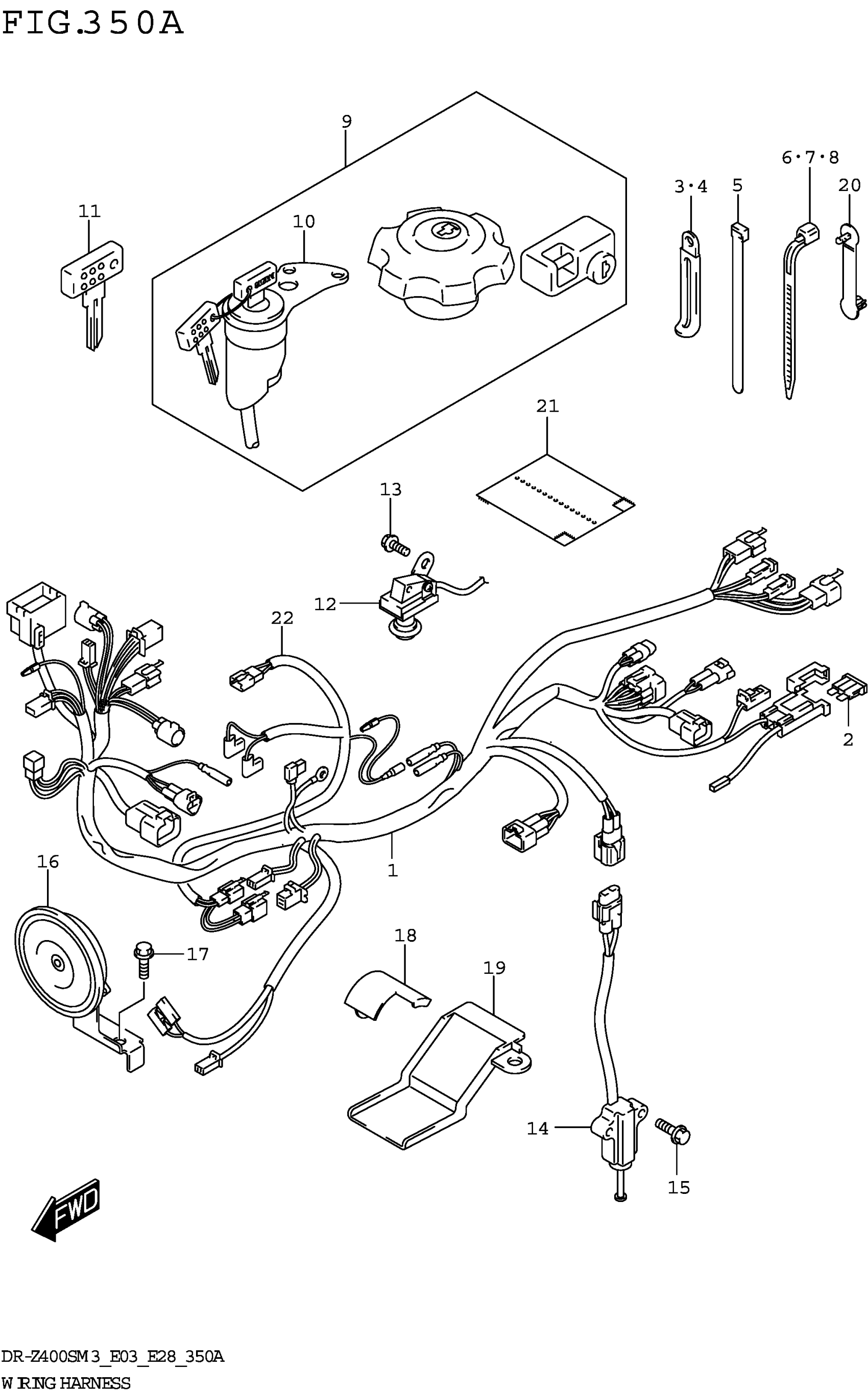

Suzuki DR-Z400SM3 (2023) WIRING HARNESS (DR-Z400SM3 E03) Diagram

#

Description
Price

1

HARNESS WIRING

36610-29FF1

$360.55

2

.FUSE (20A)

09481-20101

$2.13

3

CLAMP (L:45)

09404-06429

$1.82

4

CLAMP (L:80)

09404-06030

Unavailable

5

CLAMP (L:145)

09407-14407

$2.80

6

CLAMP (L:125)

09407-14403

$2.24

7

CLAMP (L:165)

09407-18402

$2.21

8

CLAMP (L:235)

09407-25401

$4.21

9

LOCK SET This part replaces 37000-29822.

37000-29824

$227.30

10

SWITCH ASSY,IGN This part replaces 37110-29F00.

37110-29F01

$155.55

11-1

KEY BLANK (TYPE:C) | OPT

37146-01F00

$8.31

11-2

KEY BLANK (TYPE:D) | OPT

37146-01F10

$8.31

11-3

KEY BLANK (TYPE:E) | OPT

37146-01F20

$8.56

11-4

KEY BLANK (TYPE:F) | OPT

37146-01F30

$12.13

12

SWITCH ASSY

37740-29F00

$145.50

13

SCREW

02162-0608B

$2.77

14

SWITCH ASSY,SID This part replaces 37840-11D11.

37840-11D12

$69.92

15

BOLT

01550-0616A

$1.97

16

HORN ASSY

38500-29F01

$96.10

17

BOLT

01550-0612A

$1.97

18

PROTECTOR WIRING HARNESS

36611-29F10

Unavailable

19

PROTECTOR WIRING HARNESS

36611-29F00

$10.17

20

CLAMP (L:63)

36651-48E00

$3.67

21

COVER WIRING HARNESS

36618-15D21

$21.28

22

WIRE, CARB HEATER | OPT

36856-29F00

Unavailable
