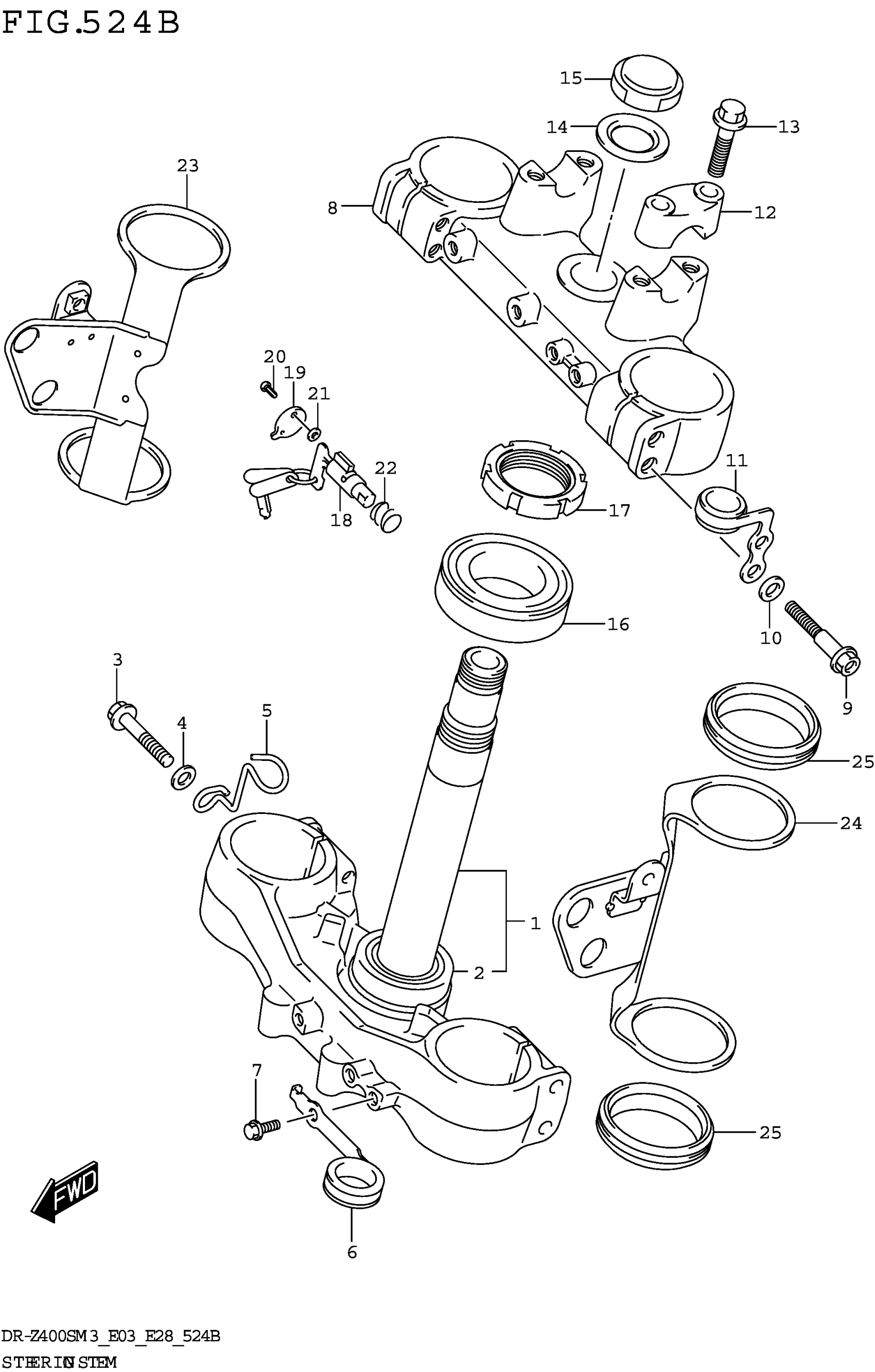

Suzuki DR-Z400SM3 (2023) STEERING STEM (DR-Z400SM3 E28) Diagram

#

Description
Price

1

BRACKET FR FORK UNDER

51410-29F21

$646.92

2

.BEARING (30X52X16)

09265-30035

$42.15

3

BOLT

51328-36E00

$7.07

4

WASHER

51316-36E00

$3.50

5

GUIDE SPEEDOMETER CABLE

34938-29E01

$13.35

6

GUIDE CABLE

51288-29F20

$43.40

7

BOLT PROTECTOR (6X10)

58627-27C40

$3.55

8

BRACKET FR FORK UPR

51311-29F00

$433.12

9

BOLT

51328-29F20

$12.12

10

WASHER

51316-36E00

$3.50

11

GUIDE CABLE

51453-29F20

$43.40

12

HOLDER HANDLEBAR UPR

56211-29F00

$34.38

13

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.66

14

WASHER,STEM HEAD

51356-29E00

$20.30

15

NUT

51353-27G00

$38.16

16

.BEARING (30X52X16)

09265-30035

$42.15

17

NUT STEERING

51631-28E00

$32.60

18

LOCK ASSY STEERING

51900-29F00

$231.35

19

CAP STEERING LOCK

51912-29F00

$7.03

20

PIN STEERING LOCK

51913-29F00

$5.65

21

WASHER STEERING LOCK

51914-29F00

$5.43

22

SPRING STEERING LOCK

51931-29F00

$4.90

23

BRACKET HEADLAMP HOUSING R

51530-29F00

$69.00

24

BRACKET HEADLAMP HOUSING L

51540-29F00

$69.00

25

DAMPER HEADLAMP HSG BRACKET

51553-29F00

$9.70
