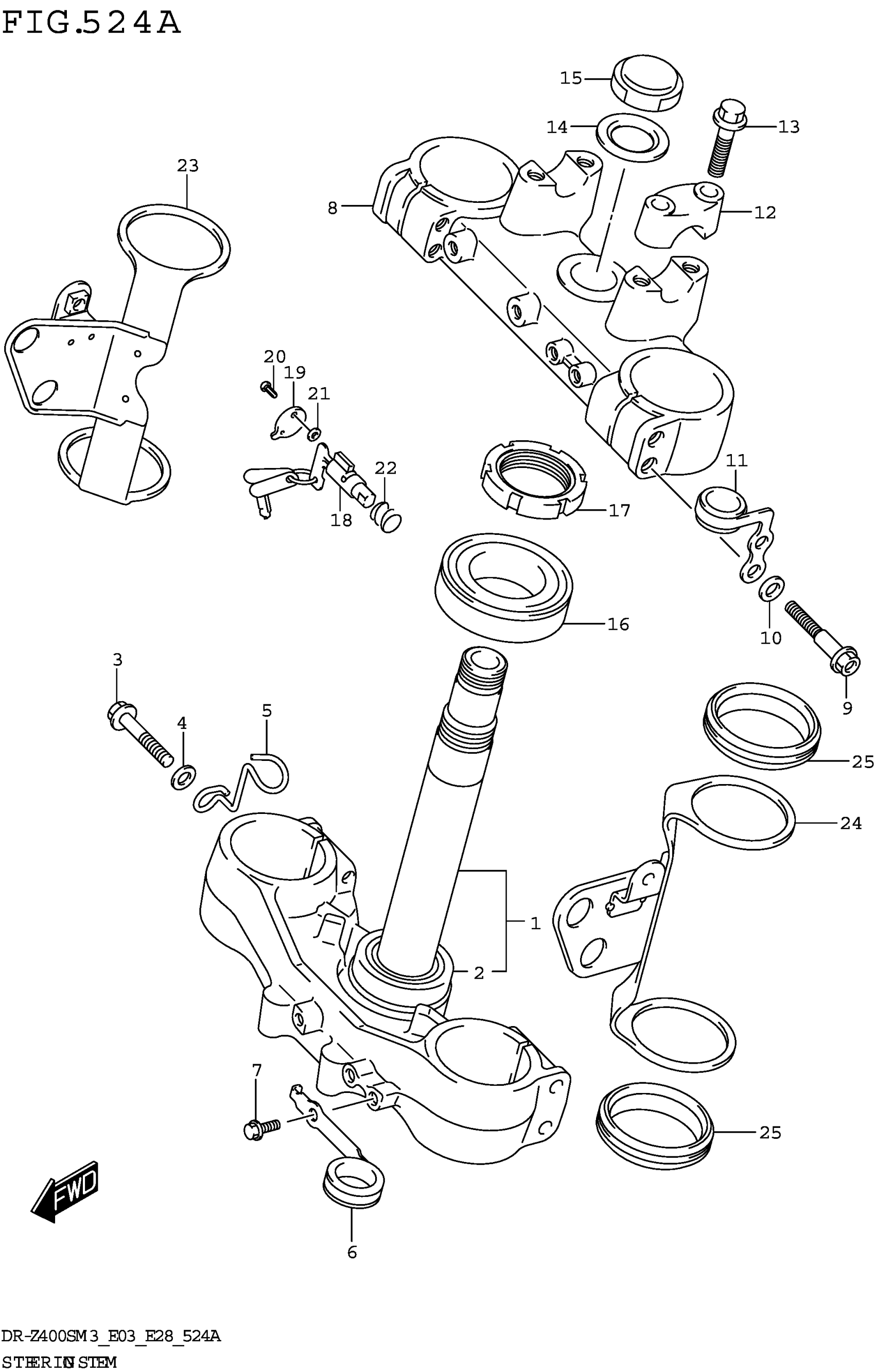

Suzuki DR-Z400SM3 (2023) STEERING STEM (DR-Z400SM3 E03) Diagram

#

Description
Price

1

BRACKET FR FORK UNDER

51410-29F21

$592.52

2

.BEARING (30X52X16)

09265-30035

$46.72

3

BOLT

51328-36E00

$7.51

4

WASHER

51316-36E00

$3.71

5

GUIDE SPEEDOMETER CABLE

34938-29E01

$11.83

6

GUIDE CABLE

51288-29F20

$38.45

7

BOLT PROTECTOR (6X10)

58627-27C40

$3.77

8

BRACKET FR FORK UPR

51311-29F00

$389.20

9

BOLT

51328-29F20

$10.73

10

WASHER

51316-36E00

$3.71

11

GUIDE CABLE

51453-29F20

$38.45

12

HOLDER HANDLEBAR UPR

56211-29F00

$30.47

13

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

14

WASHER,STEM HEAD

51356-29E00

$15.29

15

NUT

51353-27G00

$33.80

16

.BEARING (30X52X16)

09265-30035

$46.72

17

NUT STEERING

51631-28E00

$28.88

18

LOCK ASSY STEERING

51900-29F00

$207.90

19

CAP STEERING LOCK

51912-29F00

$6.23

20

PIN STEERING LOCK

51913-29F00

$5.02

21

WASHER STEERING LOCK

51914-29F00

$4.82

22

SPRING STEERING LOCK

51931-29F00

$4.33

23

BRACKET HEADLAMP HOUSING R

51530-29F00

$61.13

24

BRACKET HEADLAMP HOUSING L

51540-29F00

$61.13

25

DAMPER HEADLAMP HSG BRACKET

51553-29F00

$8.60
