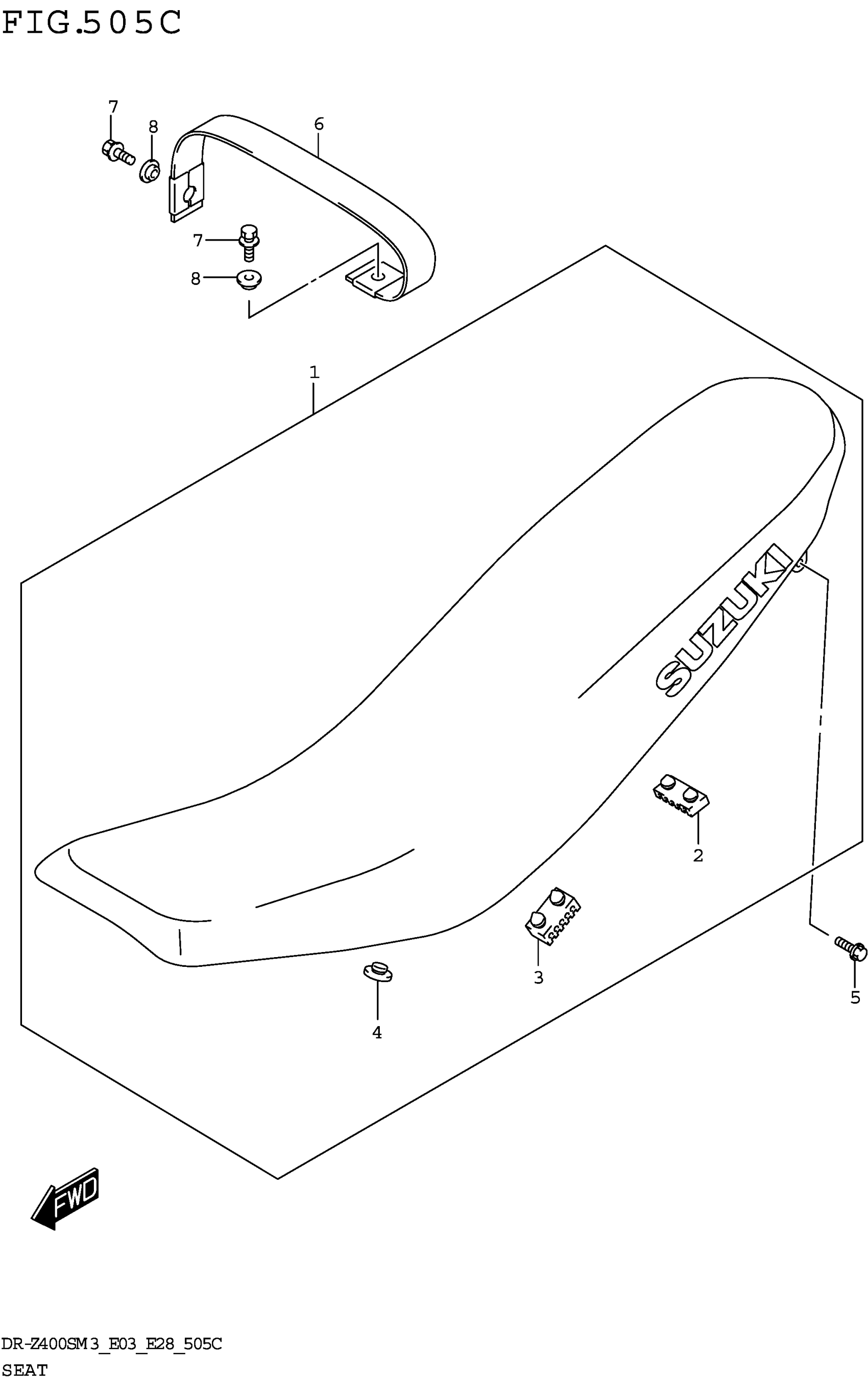

Suzuki DR-Z400SM3 (2023) SEAT (DR-Z400SM3 E33) Diagram

#

Description

Price

1

SEAT ASSY (GRAY BLACK SILVER)

45100-29FB1-BYD

$291.10

2

CUSHION,SEAT (40X20X6)

45149-12C00

$7.48

3

.CUSHION,SEAT (40X20X15)

45149-31300

$3.26

4

CUSHION

09321-10022

$2.37

5

BOLT (6X20)

09116-06182

$2.33

6

BAND SEAT (BLACK)

45180-29F01-P21

$57.72

7

BOLT (6X25)

09116-06150

$2.61

8

WASHER (6.3X17X6)

09169-06063

$3.08
