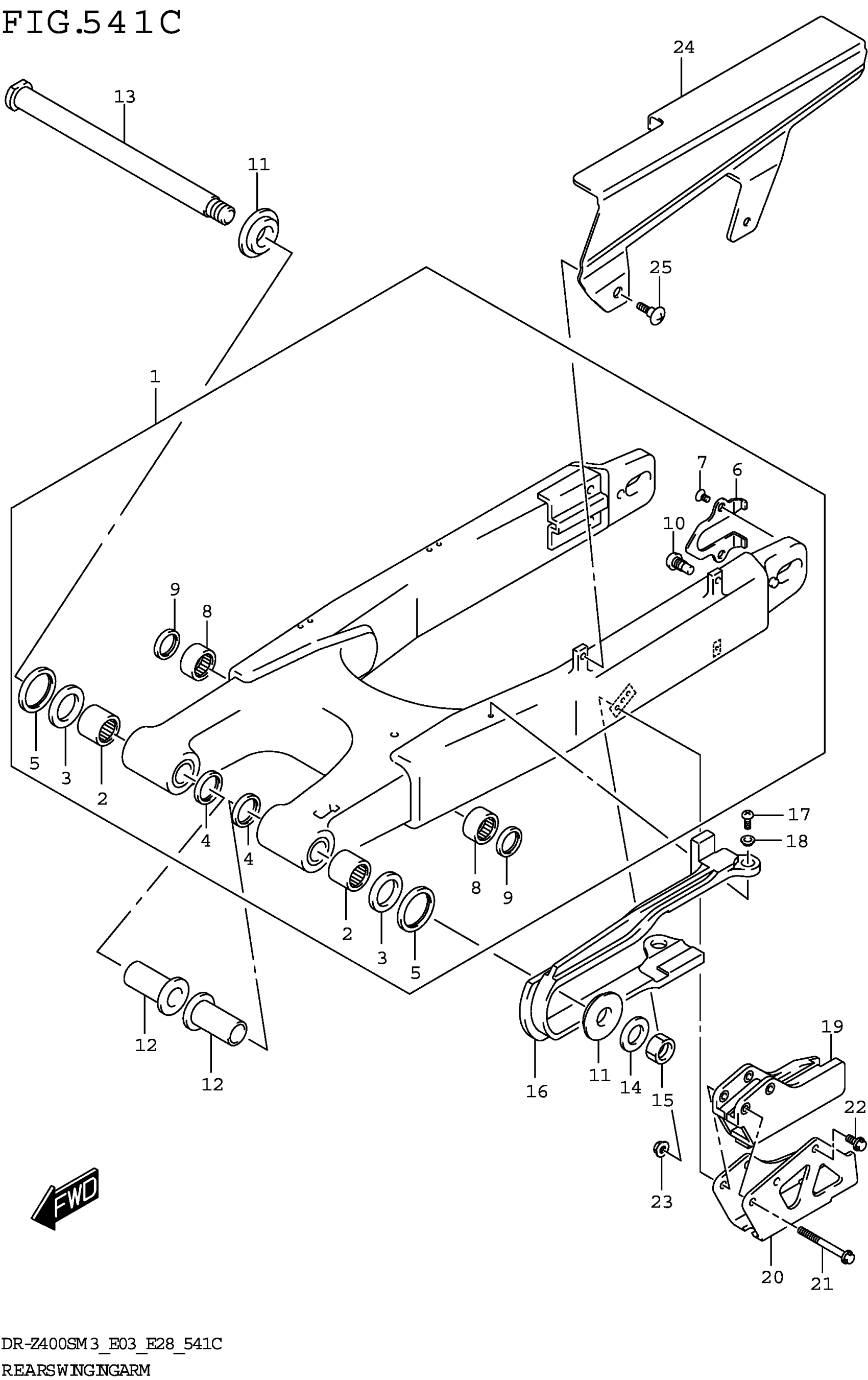

Suzuki DR-Z400SM3 (2023) REAR SWINGINGARM (DR-Z400SM3 E33) Diagram

#

Description
Price

1

SWINGINGARM ASSY RR

61000-29F51

$1,330.05

2

.BEARING (22X29X30)

09263-22017

$22.58

3

.BEARING (22X35X2)

09263-22064

$27.72

4

.SEAL,OIL (21X29X4)

09285-22006

$3.83

5

.SEAL,RR SWGARM PIVOT OUTER ( | (29.2X37X4)

61262-36E00

$6.93

6

.PLATE RR SWING ARM AXLE

61128-29E00

$18.33

7

.SCREW (5X8)

09126-05009

$2.28

8

.BEARING (20X27X15)

09263-20086

$16.47

9

.SEAL CUSHION LEVER DUST (19X | (19X27X4)

62624-14500

$6.01

10

.STOPPER CHAIN ADJUSTER (10X1 | (10X17)

61431-13E10

$6.98

11

SPACER SWINGINGARM PIVOT OUTE | OUTER

61250-44E00

$19.57

12

SPACER SWGARM PIVOT INNER

61252-36E00

$53.92

13

SHAFT RR SWINGINGARM PIVOT

61211-29F00

$82.02

14

WASHER

08322-0116B

$2.70

15

NUT

09159-16007

$12.61

16

BUFFER CHAIN TOUCH DEFENSE

61273-29F00

$66.14

17

SCREW

02112-0508A

$1.49

18

WASHER

09169-05022

$3.55

19

GUIDE CHAIN

61341-35G00

$48.05

20

PLATE CHAIN GUIDE

61342-37F00

$66.30

21

BOLT

01547-0650A

$2.46

22

BOLT

01547-0612A

$2.03

23

NUT

08319-3106A

$2.03

24

CASE CHAIN

61310-34E00

$94.72

25

SCREW (6X16)

09139-06083

$2.26
