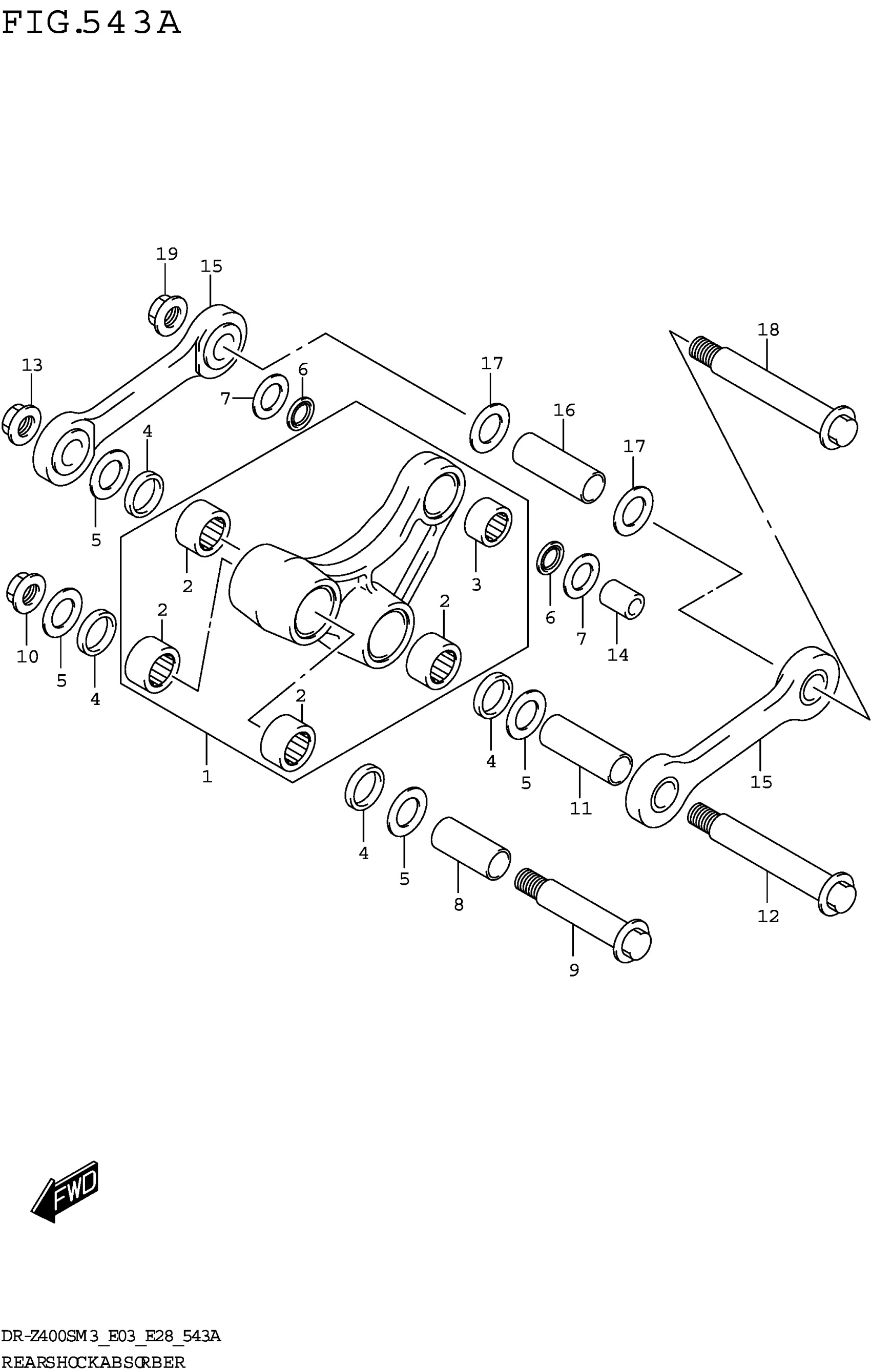

Suzuki DR-Z400SM3 (2023) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET REAR CUSHION

62600-37830

Unavailable

2

.BEARING (20X27X15)

09263-20086

$14.87

3

.BEARING (16X22X12)

09263-16033

$18.28

4

.SEAL CUSHION LEVER DUST (19X | (19X27X4)

62624-14500

$5.65

5

WASHER THRUST SWINGARM RR (20 | (20X32.5X1.6)

62647-37E00

$4.09

6

OIL SEAL (16X22X2.5)

09284-16005

$6.27

7

WASHER, THRUST LVR CUSHION RR | (16X28.5X1.6)

62685-37E00

$4.17

8

SPACER CUSHION LEVER FR (15X2 | (15X20X45)

62317-37E10

$27.95

9

BOLT RR CUSHION LEVER FR (12X | (12X76)

62658-37E01

$15.02

10

NUT

09159-12056

$6.65

11

SPACER RR CUSHION (15X20X57.4 | (15X20X57.4)

62646-37E10

$27.95

12

BOLT RR CUSHION (12X100)

62621-37E01

$25.87

13

NUT

09159-12056

$6.65

14

SPACER, RR CUSHION LEVER RR | (10X16X22)

62684-36E10

$17.40

15

ROD SET RR CUSHION

62640-37E11

$204.12

16

SPACER RR CUSHION (15X20X57.4 | (15X20X57.4)

62646-37E10

$27.95

17

WASHER THRUST SWINGARM RR (20 | (20X32.5X1.6)

62647-37E00

$4.09

18

BOLT RR CUSHION (12X100)

62621-37E01

$25.87

19

NUT

09159-12056

$6.65
