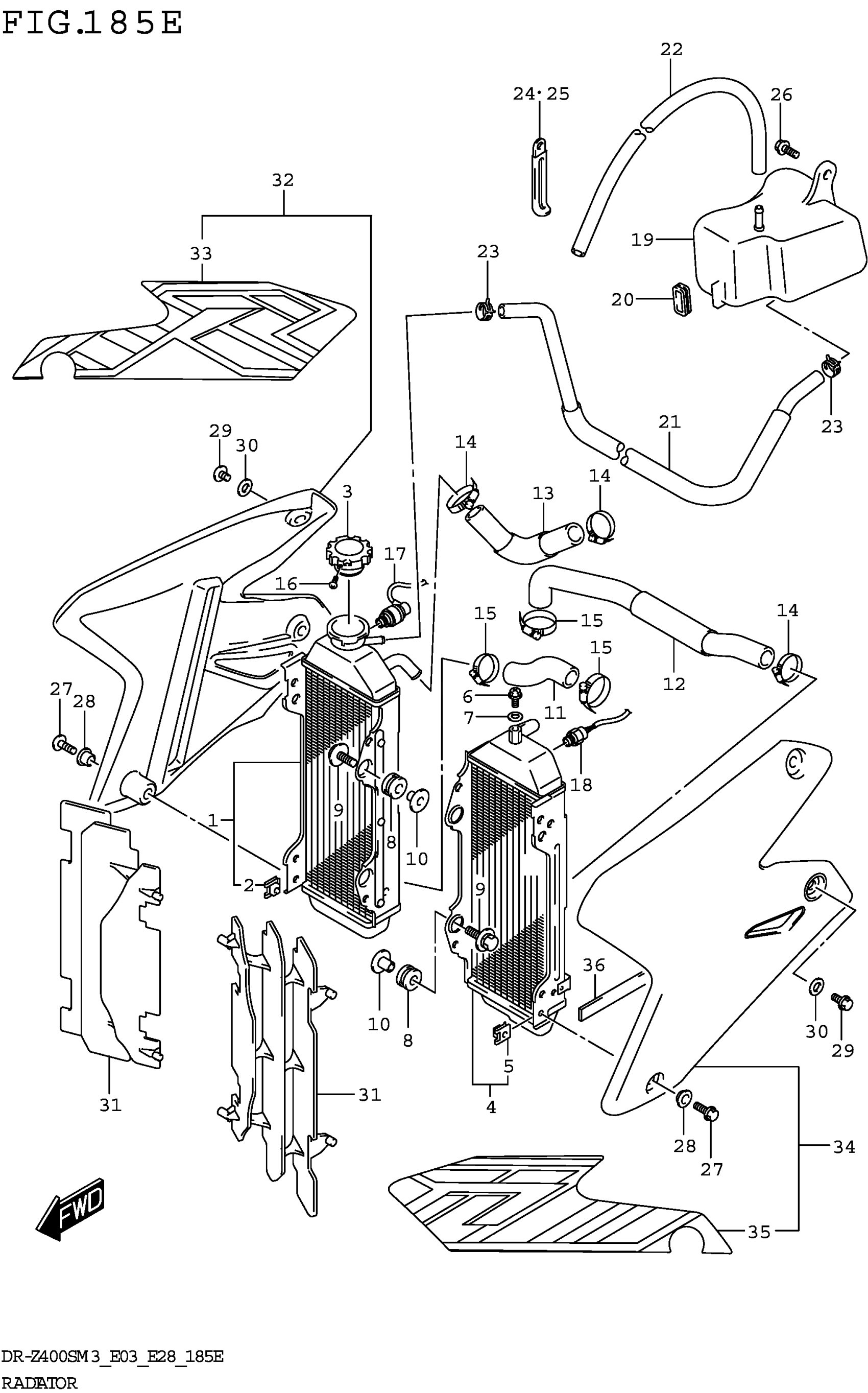

Suzuki DR-Z400SM3 (2023) RADIATOR (DR-Z400SMM3 E28) Diagram

#

Description
Price

1

RADIATOR WATER R

17710-29F40

$589.20

2

.NUT

09148-06017

$3.20

3

CAP RADIATOR (1.1)

17730-19D11

$42.32

4

RADIATOR WATER L

17720-29F40

$612.47

5

.NUT

09148-06017

$3.20

6

UNION BOLT,AIR VENT

17568-50F00

$4.76

7

GASKET (6.4X11.5X0.84)

09168-06026

$3.10

8

CUSHION RADIATOR LWR

17787-19A00

$3.56

9

BOLT (6X25)

09116-06147

$3.20

10

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

11

HOSE RADIATOR INLET

17851-29F10

$16.25

12

HOSE RADIATOR OUTLET

17852-29F30

$50.30

13

HOSE RADIATOR JOINT

17853-29F10

$26.68

14

CLAMP

09402-28513

$6.88

15

CLAMP

09402-32512

$12.85

16

SCREW,RADIATOR CAP

17733-03D10

$2.60

17

SWITCH ASSY WATER TEMP

34850-29F00

$124.28

18

SWITCH FAN

17680-24A30

$123.98

19

TANK RESERVOIR

17911-29F11

$49.89

20

CUSHION RESERVOIR TANK

17913-29F00

$4.43

21

HOSE RESERVOIR TANK INLET

17981-29F01

$21.03

22

HOSE (5X9X2000)

09352-50901-00B

$26.94

23

CLIP (ID:8.6)

09401-08411

$1.78

24

CLAMP (L:45)

09404-08211

$2.35

25

CLAMP (L:45)

09404-06429

$1.83

26

BOLT

01550-0612A

$1.97

27

BOLT (6X16)

09103-06274

$2.03

28

WASHER (6.3X16X1)

09169-06053

$1.49

29

BOLT (6X8)

09103-06275

$2.07

30

WASHER This part replaces 09160-06143.

09160-06125

$1.91

31

LOUVER RADIATOR

17831-37E11

$19.07

32-1

COVER, RADIATOR RH (WHITE) | FOR 30H

17760-33K50-30H

$124.67

32-2

COVER, RADIATOR RH (BLUE) | FOR CKS

17760-33K50-YLW

$124.67

33-1

.TAPE, RADIATOR COVER RH | FOR CKS

68685-29F40-CMA

$47.02

33-2

.TAPE, RADIATOR COVER RH | FOR 30H

68685-29F40-CMB

$47.02

34-1

COVER, RADIATOR LH (WHITE) | FOR 30H

17770-33K50-30H

$124.67

34-2

COVER, RADIATOR LH (BLUE) | FOR CKS

17770-33K50-YLW

$124.67

35-1

.TAPE, RADIATOR COVER LH | FOR CKS

68695-29F40-CMA

$39.98

35-2

.TAPE, RADIATOR COVER LH | FOR 30H

68695-29F40-CMB

$47.02

36

CUSHION TOOL HOLDER

47451-38A01

$4.43
