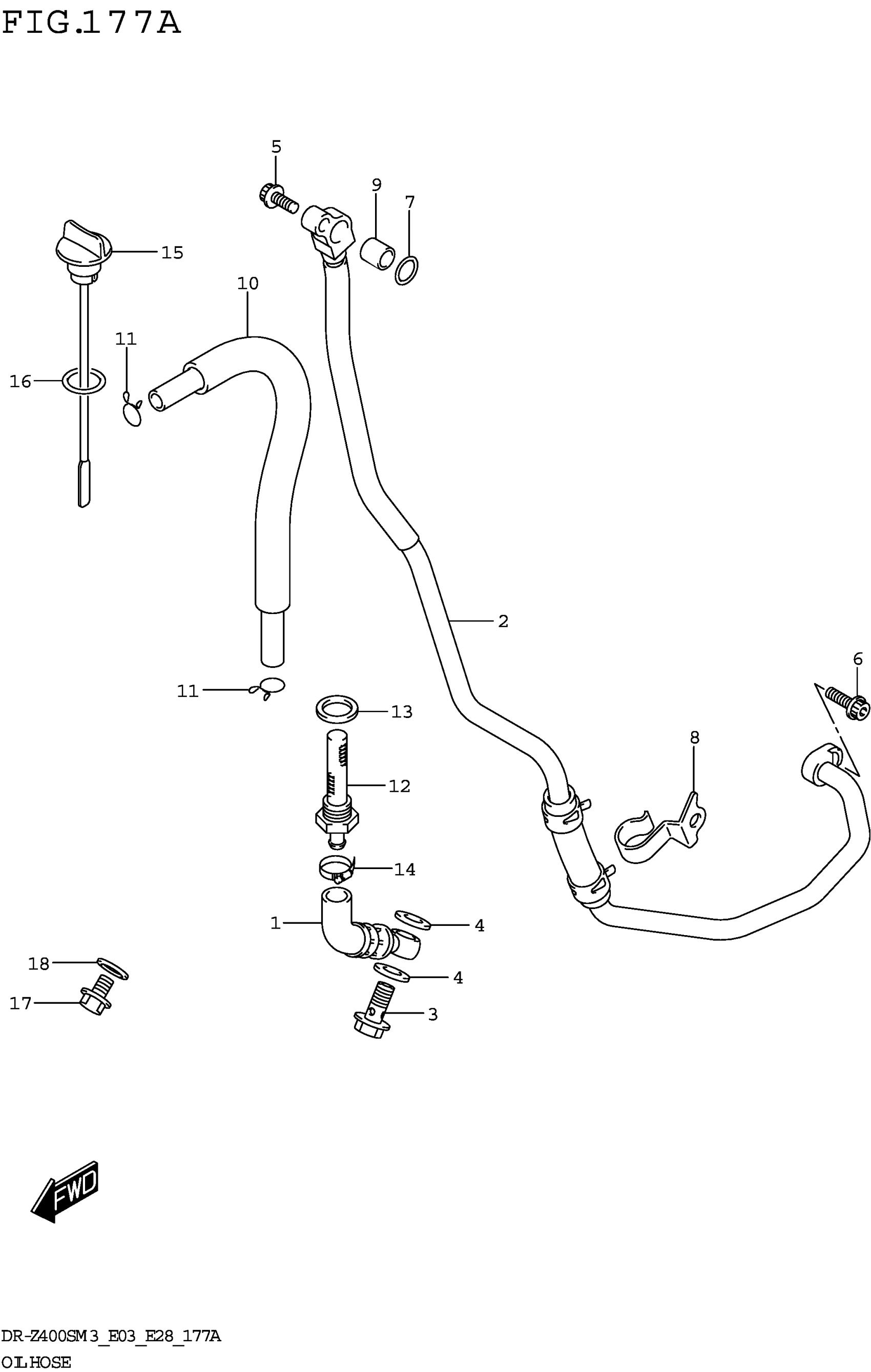

Suzuki DR-Z400SM3 (2023) OIL HOSE Diagram

#

Description
Price

1

HOSE OIL TANK R

16460-29F10

$83.83

2

HOSE OIL TANK L

16470-29F20

$126.90

3

UNION (14X27)

09360-14012

$9.80

4

.GASKET (14X20X1.5)

09168-14015

$2.01

5

BOLT

07120-0616A

$2.55

6

BOLT

07120-0620A

$2.80

7

.O-RING (D:2.4 ID:11)

09280-11005

$3.93

8

CLAMP OIL TANK HOSE

16491-29F11

$8.03

9

PIN

04211-11129

$1.77

10

HOSE OIL TANK OVER FLOW

16480-29F00

$26.85

11

CLIP

09401-12403

$1.84

12

STRAINER FRAME HEAD UNDER

16550-29F00

$85.42

13

GASKET (18X22X2)

09168-18007

$2.87

14

CLAMP

09402-22512

$9.37

15

GAUGE OIL LEVEL

16561-29F10

$10.01

16

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

17

PLUG (10X12)

09247-10008

$1.97

18

GASKET (10X14X3.6)

09168-10002

$1.96
