Partiron

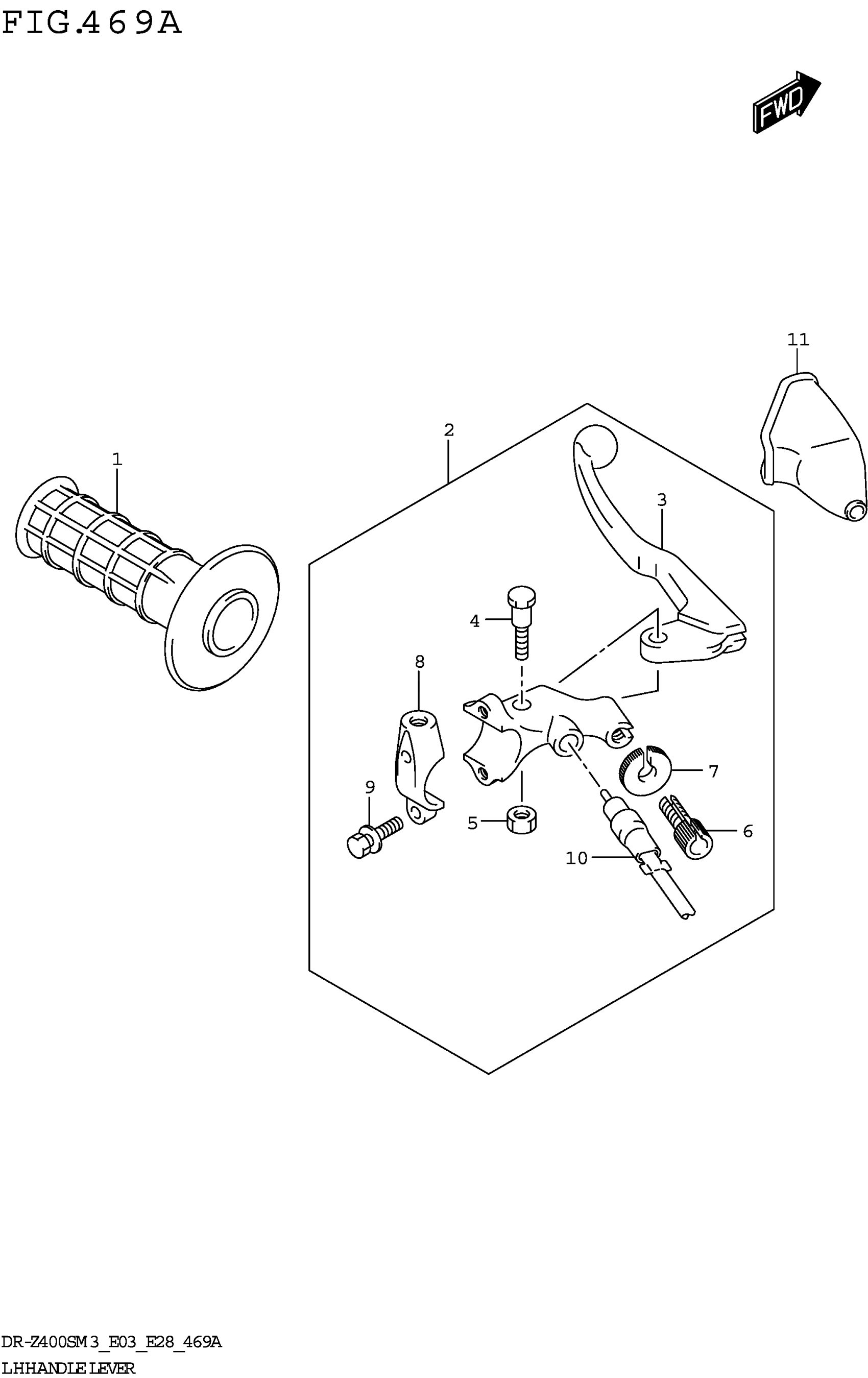

Suzuki DR-Z400SM3 (2023) LH HANDLE LEVER Diagram

#

Description
Price

1

GRIP L

57211-12D00

$16.70

2

LEVER ASSY CLUTCH

57500-29F32

$70.50

3

.LEVER, CLUTCH

57621-13E00

$13.15

4

..BOLT,LEVER PIVOT

57431-21D11

$9.76

5

.NUT

08319-2106A

$1.91

6

.ADJUSTER, WIRE

57441-29F01

$11.32

7

.NUT, LOCK

57442-45C01

$8.41

8

.BRACKET HOLDER

57512-13E00

$25.75

9

.BOLT BRACKET

57513-13E00

$6.23

10

.SWITCH ASSY CLUTCH

57560-29F31

$33.87

11

COVER, CLUTCH CABLE DUST

57341-29F02

$8.52
