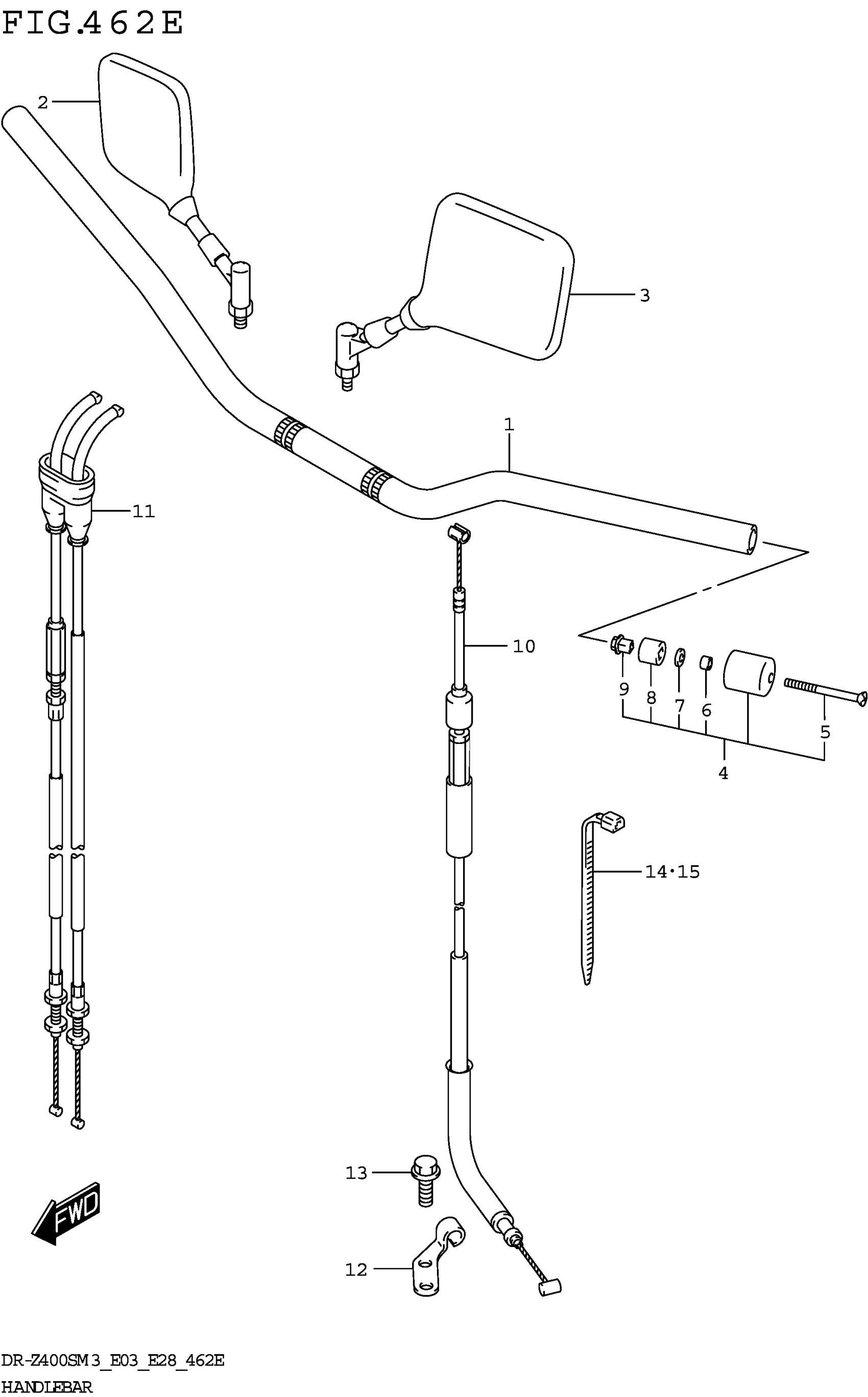

Suzuki DR-Z400SM3 (2023) HANDLEBAR (DR-Z400SMM3 E28) Diagram

#

Description
Price

1

HANDLEBAR

56111-29F41

$315.07

2

MIRROR ASSY RR VIEW R

56500-06G30

$156.05

3

MIRROR ASSY RR VIEW L

56600-06G30

$156.05

4

BALANCER SET HANDLEBAR

56200-29842

$48.93

5

.SCREW

02122-0645B

$2.76

6

.SPACER (6.1X8X5.2)

09180-06246

$2.12

7

WASHER

08322-0106B

$2.26

8

.EXPANDER HANDLE BALANCER

56272-29F00

$7.57

9

.NUT BALANCER

56273-29F01

$19.78

10

CABLE ASSY CLUTCH

58200-29F10

$33.22

11

CABLE SET THROTTLE

58301-29F11

$62.89

12

STOPPER CLUTCH CABLE

58634-29F00

$12.57

13

BOLT

01547-0612A

$2.03

14

CLAMP (L:100)

09407-10404

$2.90

15

CLAMP (L:235)

09407-25401

$4.66
