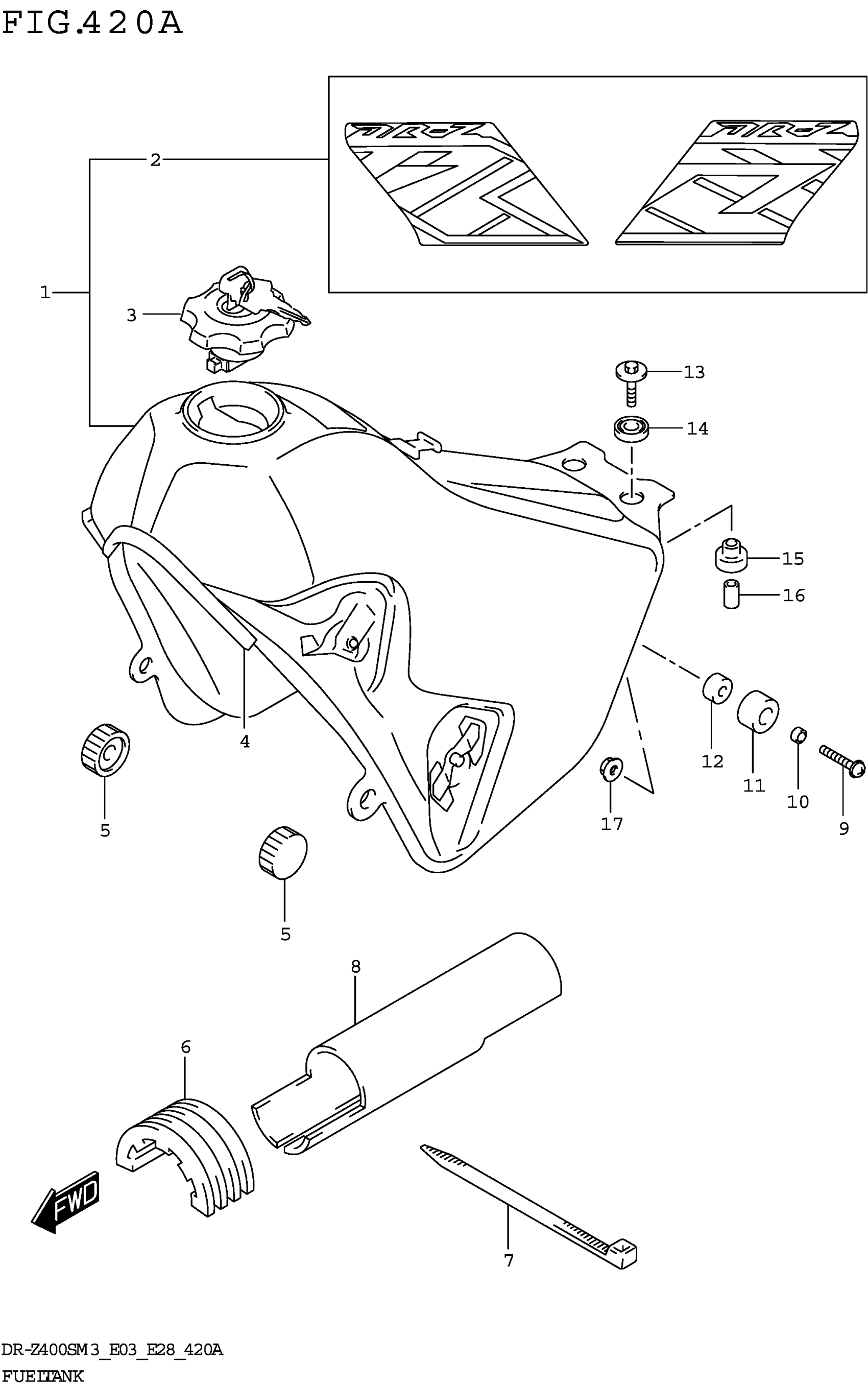

Suzuki DR-Z400SM3 (2023) FUEL TANK (DR-Z400SM3 E03) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (YELLOW) | FOR YU1

49200-33K00-YU1

$650.65

1-2

TANK ASSY, FUEL (BLACK) | FOR 019

49200-33K00-14X

$553.06

2-1

.TAPE SET, FUEL TANK | FOR 019

68120-29FE0-CL7

$47.02

2-2

.TAPE SET, FUEL TANK | FOR YU1

68120-29FE0-CL8

$47.02

3

CAP SET FUEL TANK FILLER

44200-29821

$140.27

4

MOLDING This part replaces 68241-40A10.

68241-04X50-00B

$27.30

5

CUSHION

09329-10016

$3.10

6

CUSHION FUEL TANK

44541-29F00

$34.55

7

CLAMP (L:300)

09407-30402

$4.11

8

SHIELD FUEL TANK

44194-29F00

Unavailable

9

SCREW

02112-1630B

$3.08

10

SPACER (6.5X20X9)

09180-06215

$7.95

11

CUSHION

45149-14D00

$6.63

12

SPACER (6.5X9X5)

09180-06306

$2.03

13

BOLT (6X30)

09116-06214

$2.50

14

CUSHION (14.5X24X8)

09320-14022

$3.63

15

CUSHION (9X24X18)

09320-10071

$2.60

16

SPACER (6.5X9X18)

09180-06271

$2.35

17

NUT

08319-3106B

$2.45
