Description

Price

1

HUB FRONT WHEEL

54111-29F10

$355.08

2

SPACER FR HUB BEARING (20.5X2 | (20.5X27.3X70)

54731-36E10

$29.07

3

BEARING

09262-20174

$59.38

4

SEAL OIL (25X37X6)

09283-25083

$7.67

5

AXLE FR

54711-29F10

$118.47

6

BOX ASSY SPEEDOMETER GEAR

54600-29F11

$97.60

7

SPACER FR AXLE L (L:31)

54751-36E10

$16.33

8

NUT

09159-18018

$21.71

9

DISC FRONT BRAKE

59220-29F00

$428.63

10

SCREW (6X18)

09120-06014

$2.43

11

EXPANDER FR AXLE SLIDER R

54744-29F00

$6.62

12

SPACER (5.5X8X10.5)

09180-05048

$2.06

13

SLIDER FR AXLE R

54745-29F00

$22.25

14

SLIDER FR AXLE L

54755-29F00

$28.77

15

WASHER (5.5X12X0.8)

09160-05029

$1.56

16

SPACER (5.5X9.5X26)

09180-05060

$6.08

17

BOLT (5X65)

09106-05021

$7.03

18

NUT

08316-2005B

$3.13

19

BOLT

07130-0540A

$3.23

20

NUT

09159-05050

$10.20

21

TIRE FRONT | D208F SM,DUNLOP

55110-29FA1

$292.65

22

TUBE ASSY WHEEL INNER

55200-29FA0

$66.07

23

PROTECTOR WHEEL INNER TUBE

55261-29FA0

$7.23

24

RIM,FR WHEEL(17 | BLACK This part replaces 55311-29F20.

55311-37L10-Q19

$382.78

25

SPOKE SET FRONT WHEEL

55320-29F10

$136.30

26

WASHER (18X26X2.8)

09160-18034

$3.22

27-1

BALANCER WHEEL (15G)

55411-26G00

$8.73

27-2

BALANCER WHEEL (30G)

55413-41F00

$9.95

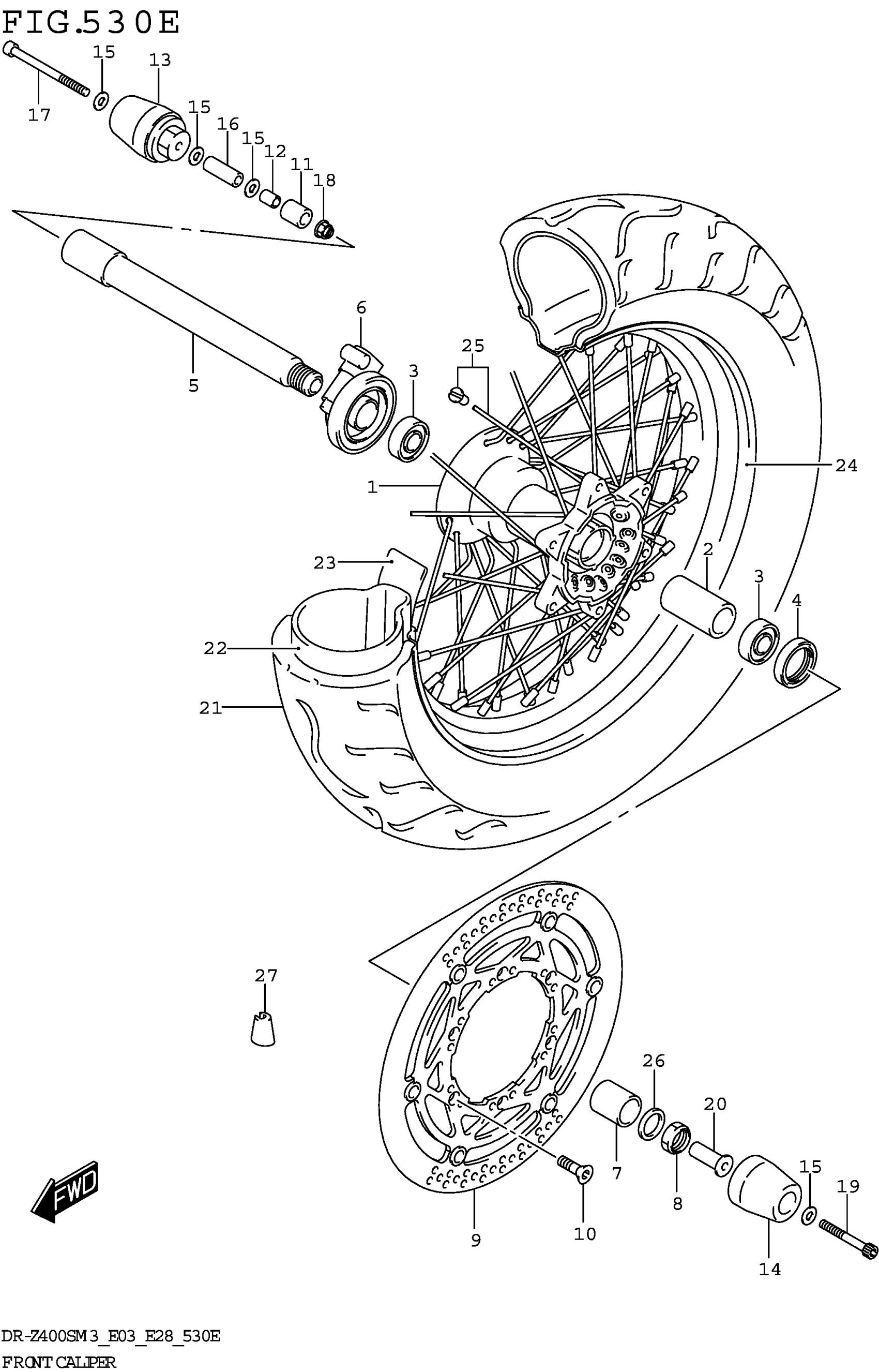

Suzuki DR-Z400SM3 (2023) FRONT WHEEL (DR-Z400SMM3 E28) Diagram
