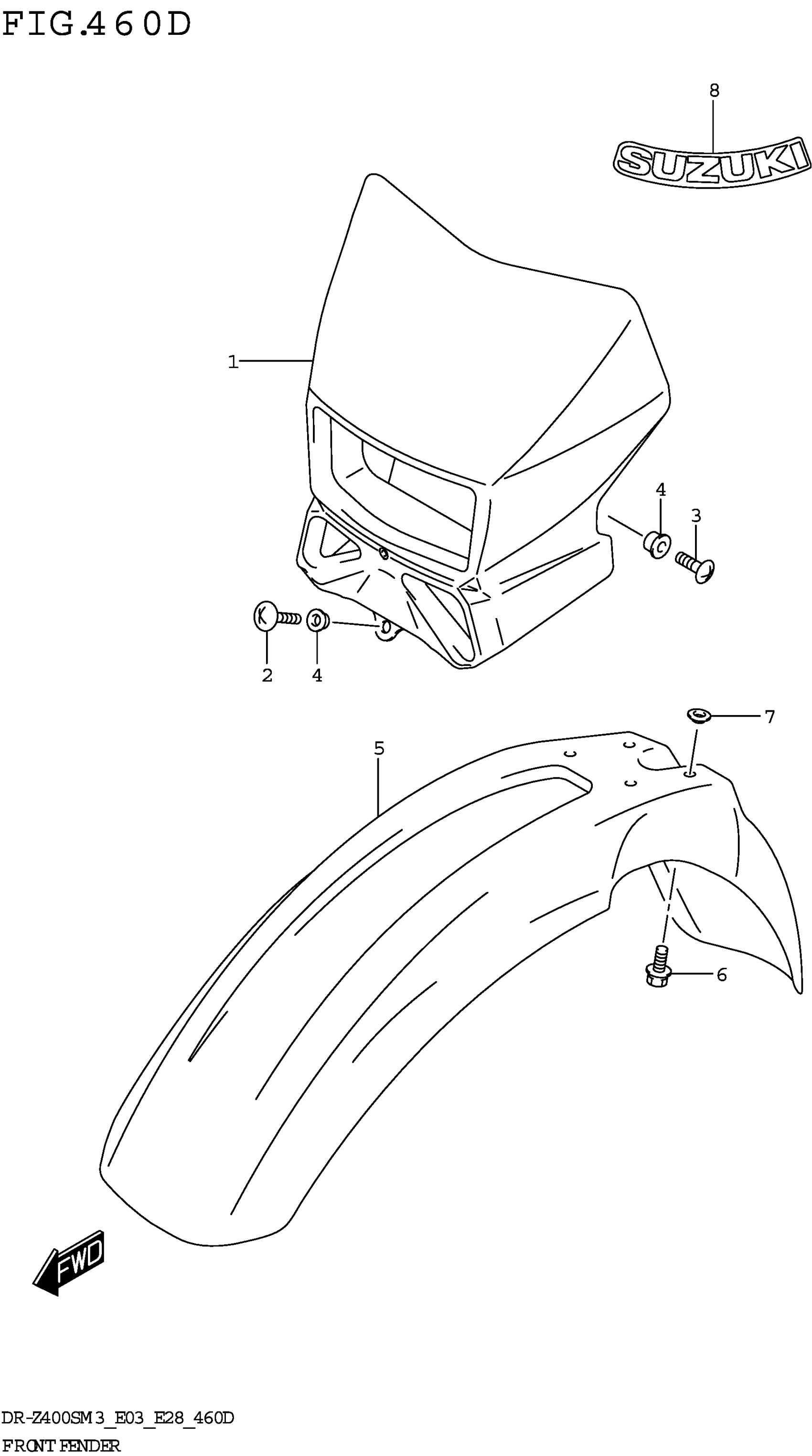

Suzuki DR-Z400SM3 (2023) FRONT FENDER (DR-Z400SMM3 E03) Diagram

#

Description
Price

1-1

COVER, HEADLAMP (BLUE) | FOR CKS

51811-29F50-YLW

$121.43

1-2

COVER HEADLAMP (WHITE) | FOR 30H

51811-29F50-30H

$116.87

2

SCREW

02142-0512B

$2.05

3

SCREW

02142-0612B

$2.05

4

WASHER This part replaces 09169-06032.

09169-06071

$2.50

5-1

FENDER FRONT (BLUE) | FOR CKS

53111-29FA0-YLW

$133.37

5-2

FENDER FRONT (WHITE) | FOR 30H

53111-29FA0-30H

$172.63

6

BOLT (6X16)

09116-06170

$2.50

7

WASHER (6.1X17.0X4.8)

09169-06073

$3.42

8-1

EMBLEM, SUZUKI (BLACK) | FOR 30H

68131-49J00-019

$8.55

8-2

EMBLEM, SUZUKI (WHITE) | FOR CKS

68131-49J00-30H

$8.55
