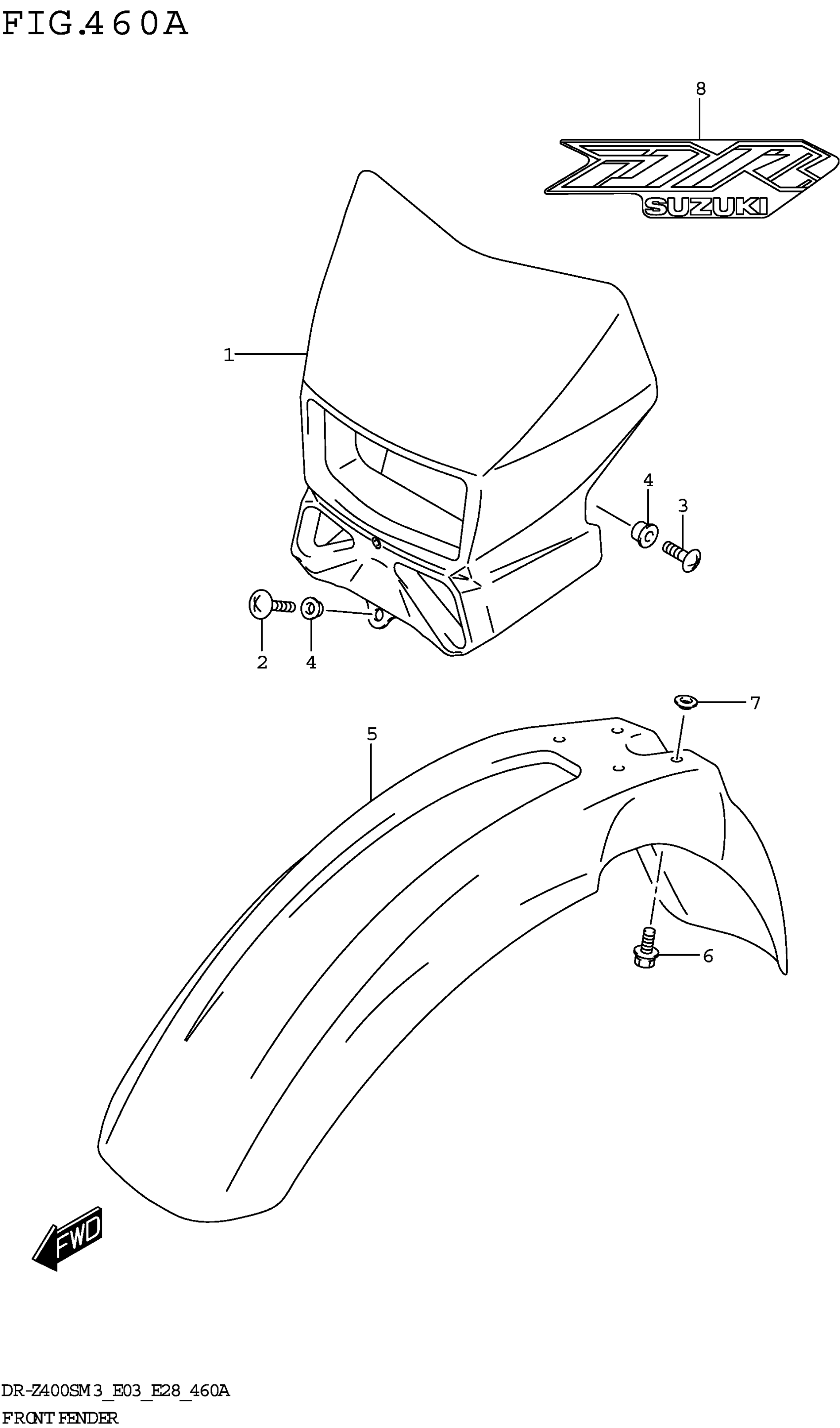

Suzuki DR-Z400SM3 (2023) FRONT FENDER (DR-Z400SM3 E03) Diagram

#

Description
Price

1-1

COVER HEADLAMP (BLACK) | FOR 019

51811-29F50-019

$96.47

1-2

COVER HEADLAMP (YELLOW) | FOR YU1

51811-29F50-YU1

$116.87

2

SCREW

02142-0512B

$2.05

3

SCREW

02142-0612B

$2.05

4

WASHER This part replaces 09169-06032.

09169-06071

$2.50

5-1

FENDER FRONT (BLACK) | FOR 019

53111-27C22-019

$160.55

5-2

FENDER FR (YELLOW) | FOR YU1

53111-27C22-YU1

$138.02

6

BOLT (6X16)

09116-06170

$2.50

7

WASHER (6.1X17.0X4.8)

09169-06073

$3.42

8-1

TAPE, HEADLAMP COVER | FOR 019

68725-29FF0-CL7

$22.10

8-2

TAPE, HEADLAMP COVER | FOR YU1

68725-29FF0-CL8

$22.10
