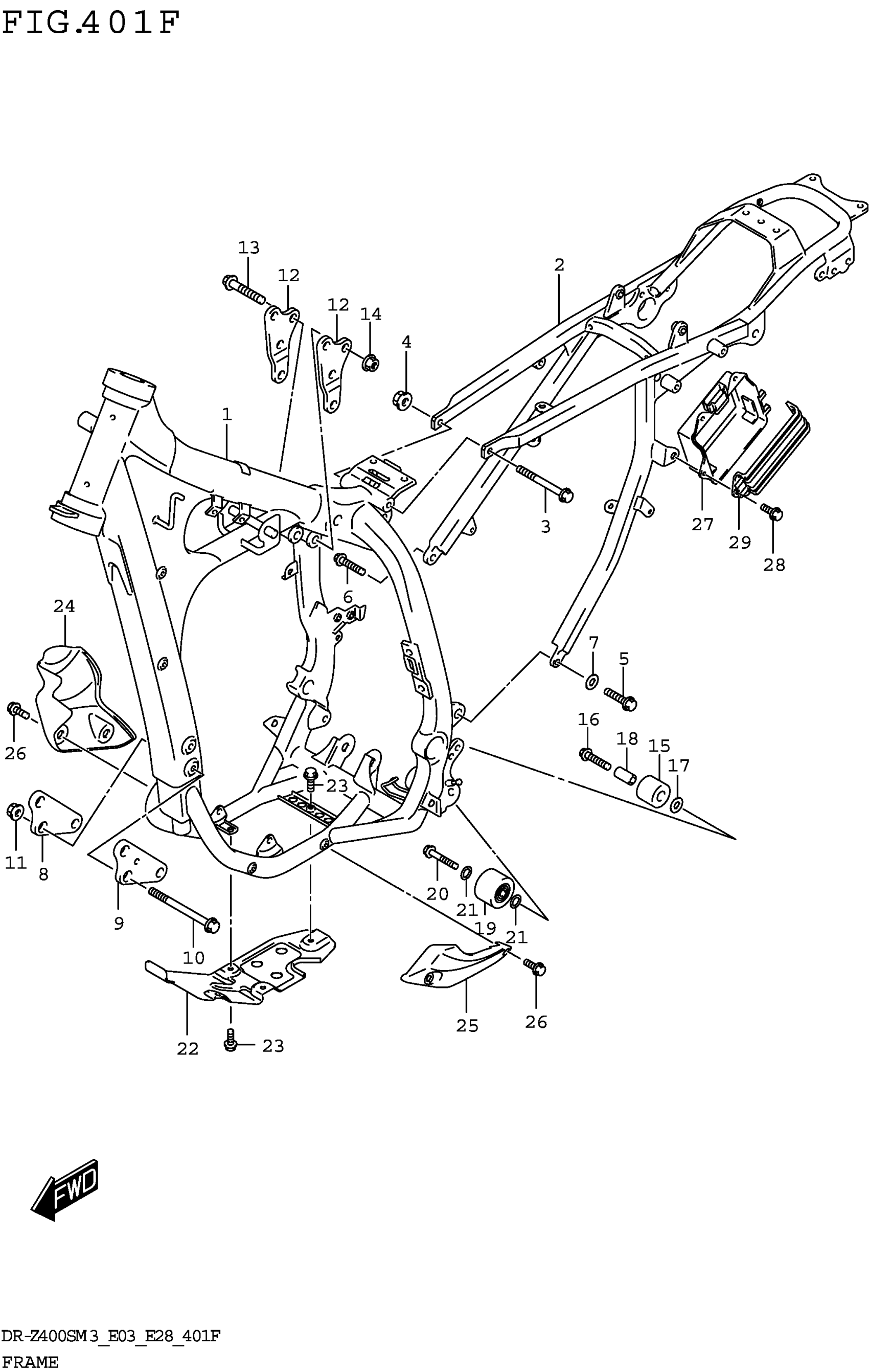

Suzuki DR-Z400SM3 (2023) FRAME (DR-Z400SMM3 E33) Diagram

#

Description
Price

1

FRAME (BLACK)

41100-29F90-019

$2,897.38

2

RAIL SEAT

41200-29F70

$1,331.42

3

BOLT (8X115)

09103-08098

$3.29

4

NUT

08319-3108A

$2.32

5

BOLT (8X20)

09103-08364

$3.20

6

BOLT (8X18)

09104-08035

$2.69

7

WASHER (8.5X18X2.0)

09160-08120

$2.19

8

PLATE ENG MTG FRONT

41911-29F20

$30.57

9

PLATE ENG MTG FRONT L

41911-29F30

$30.57

10

BOLT (8X90)

09103-08550

$5.62

11

NUT

08319-3108A

$2.32

12

PLATE HEAD MTG RR

41993-29F10

$32.00

13

BOLT (8X50)

09103-08081

$3.72

14

NUT

08319-3108A

$2.32

15

ROLLER CHAIN CONTROL UPR

43911-13E00

$21.84

16

BOLT (8X41)

09103-08083

$3.70

17

WASHER

08211-08201

$2.03

18

SPACER (8.6X12.2X26.5)

09180-08215

$4.19

19

ROLLER CHAIN

43910-27C11

$64.67

20

BOLT (8X41)

09103-08083

$3.70

21

SHIM (8X12X1)

09181-08111

$1.93

22

PROTECTOR ENGINE

42510-29F00

$137.02

23

BOLT

01550-0612A

$1.97

24

GUARD WATER PUMP

42521-29F00

$20.82

25

GUARD, MAG COVE This part replaces 42531-29F00.

42530-29810

Unavailable

26

BOLT (8X16.5)

09111-08087

$2.76

27

HOLDER BATTERY

41541-29F00

$67.73

28

BOLT (6X17.8)

09111-06072

$2.03

29

BAND BATTERY HOLDER

41561-29F00

$21.09
