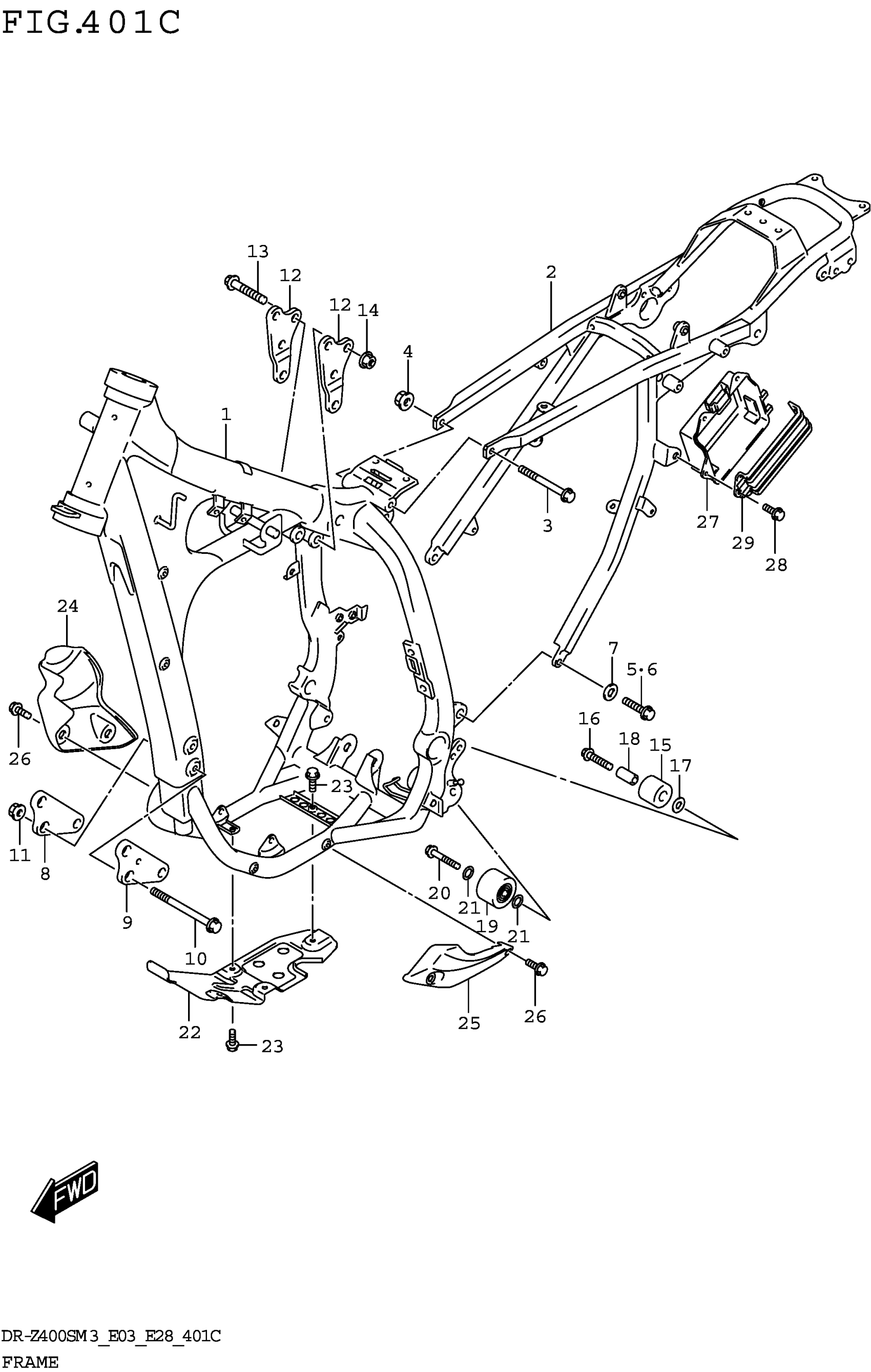

Suzuki DR-Z400SM3 (2023) FRAME (DR-Z400SM3 E33) Diagram

#

Description
Price

1

FRAME (GLAY)

41100-29F90-YPT

$3,109.85

2

RAIL SEAT

41200-29F70

$1,453.65

3

BOLT (8X115)

09103-08098

$4.20

4

NUT

08319-3108A

$2.31

5

BOLT (8X20)

09103-08364

$3.48

6

BOLT (8X18)

09104-08035

$2.71

7

WASHER (8.5X18X2.0)

09160-08120

$2.21

8

PLATE ENG MTG FRONT

41911-29F20

$34.50

9

PLATE ENG MTG FRONT L

41911-29F30

$34.50

10

BOLT (8X90)

09103-08550

$6.12

11

NUT

08319-3108A

$2.31

12

PLATE HEAD MTG RR

41993-29F10

$36.12

13

BOLT (8X50)

09103-08081

$4.03

14

NUT

08319-3108A

$2.31

15

ROLLER CHAIN CONTROL UPR

43911-13E00

$20.56

16

BOLT (8X41)

09103-08083

$3.38

17

WASHER

08211-08201

$2.06

18

SPACER (8.6X12.2X26.5)

09180-08215

$3.84

19

ROLLER CHAIN

43910-27C11

$72.98

20

BOLT (8X41)

09103-08083

$3.38

21

SHIM (8X12X1)

09181-08111

$1.95

22

PROTECTOR ENGINE

42510-29F00

$154.63

23

BOLT

01550-0612A

$1.97

24

GUARD WATER PUMP

42521-29F00

$23.50

25

GUARD, MAG COVE This part replaces 42531-29F00.

42530-29810

Unavailable

26

BOLT (8X16.5)

09111-08087

$2.79

27

HOLDER BATTERY

41541-29F00

$76.43

28

BOLT (6X17.8)

09111-06072

$2.01

29

BAND BATTERY HOLDER

41561-29F00

$19.30
