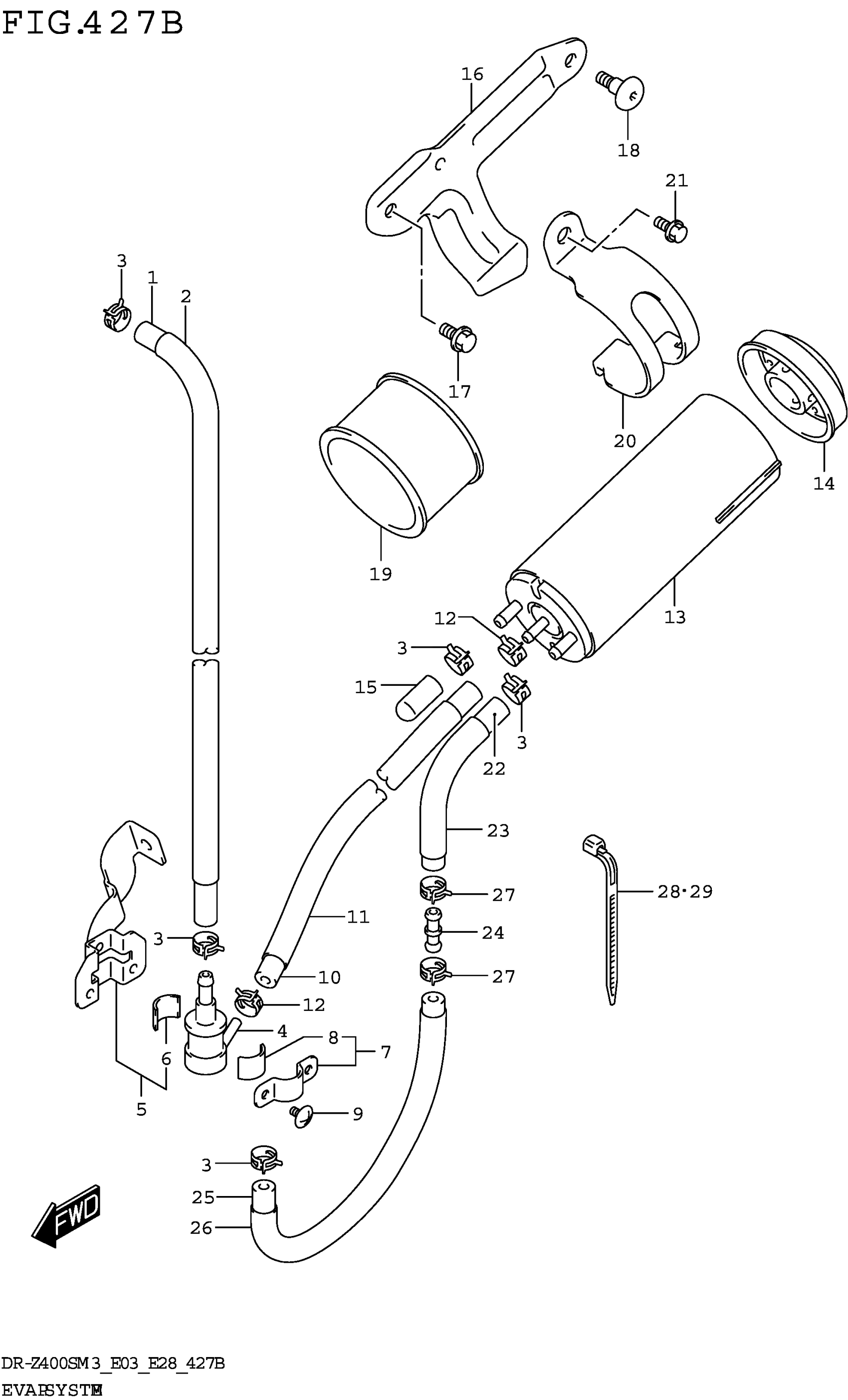

Suzuki DR-Z400SM3 (2023) EVAP SYSTEM (DR-Z400SMM3 E33) Diagram

#

Description
Price

1

HOSE TANK & BRTHR VALVE

44434-29F20

Unavailable

2

PROTECTOR (14.5X15.5X600)

09351-14152-600

$10.62

3

CLIP (ID:11,H:8)

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

BRACKET BRTHR VALVE

44890-29F00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW

02142-0408B

$1.70

10

HOSE BRTHR VALVE & CSTR

44435-29F20

Unavailable

11

HOSE (L:2000)

09351-14152-00B

Unavailable

12

CLIP (ID:12)

09401-12404

$2.34

13

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

14

CAP CANISTER

17211-48E01

$19.52

15

CAP (OD:11.5)

09251-07003

$2.53

16

BRACKET CANISTER

44881-29F00

Unavailable

17

BOLT

01550-0816B

$2.73

18

BOLT (6X16)

09116-06165

$3.03

19

CUSHION CANISTER

44883-26E00

Unavailable

20

HOLDER CANISTER

44882-29F00

Unavailable

21

BOLT

01550-0612B

$2.39

22

HOSE CSTR & CARB PURGE

44436-29F20

Unavailable

23

PROTECTOR (14.5X15.5X600)

09351-14152-600

$10.62

24

UNION

09364-06005

$5.72

25

HOSE CSTR & CARB PURGE NO.2

44437-29F20

Unavailable

26

PROTECTOR (14.5X15.5X600)

09351-14152-600

$10.62

27

CLIP (ID:11,H:8)

09401-11413

$2.26

28

CLAMP (L:125)

09407-14403

$2.26

29

CLAMP (L:145)

09407-14407

$3.57
