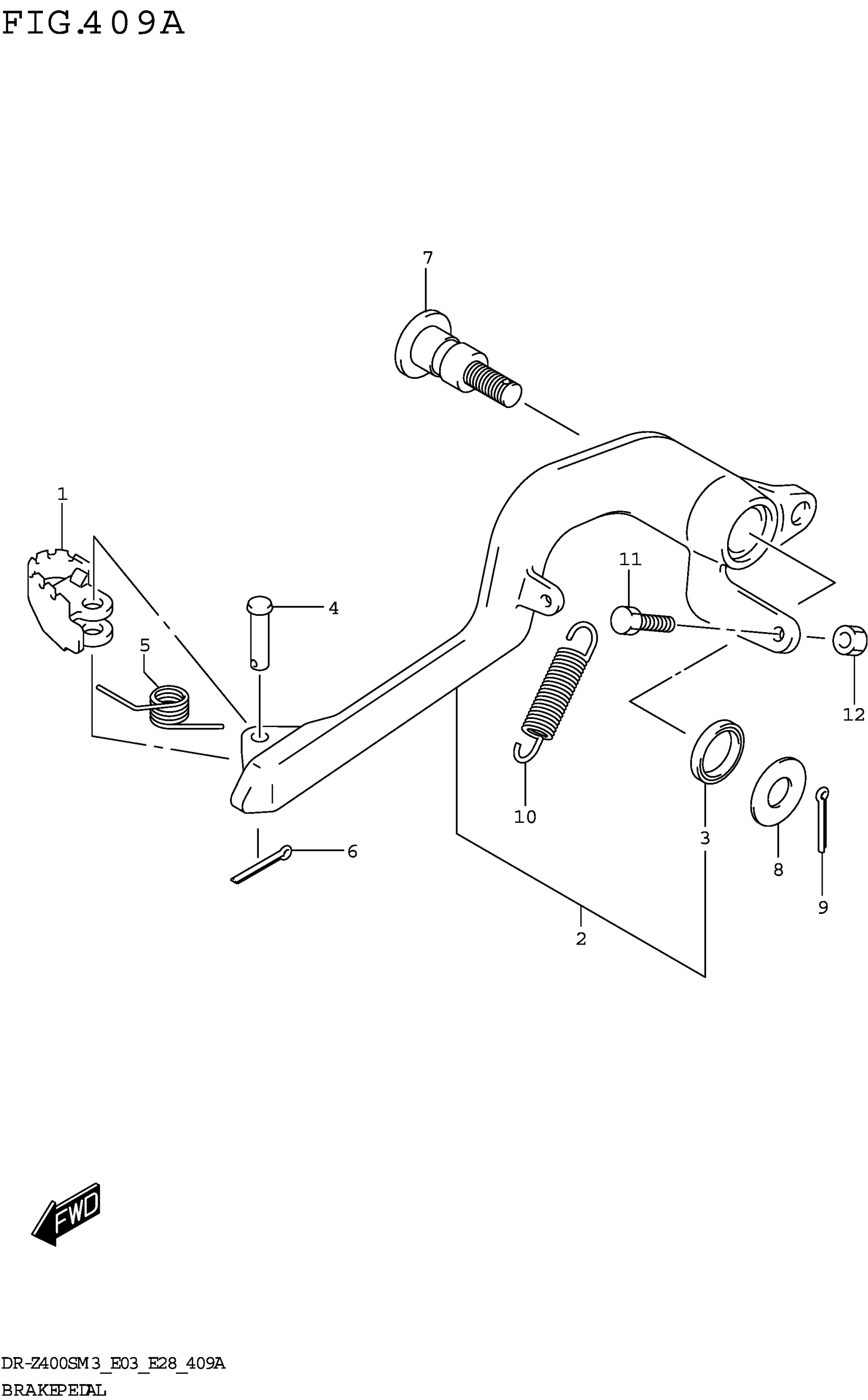

Suzuki DR-Z400SM3 (2023) BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL BRAKE

43110-43D00

$15.78

2

ARM BRAKE PEDAL

43120-29F10

$251.08

3

.SEAL,OIL (15X21X3)

09284-15006

$3.55

4

PIN (6X23.5)

09200-06062

$2.20

5

SPRING

09444-11006

$3.18

6

PIN

04111-2015A

$1.49

7

SHAFT, BRAKE PEDAL

43142-27C00

$23.07

8

WASHER

08211-10261

$2.03

9

PIN

04111-2020A

$1.49

10

SPRING

09443-11033

$4.50

11

BOLT (6X30)

09104-06004

$4.25

12

NUT

08310-0006B

$2.34
