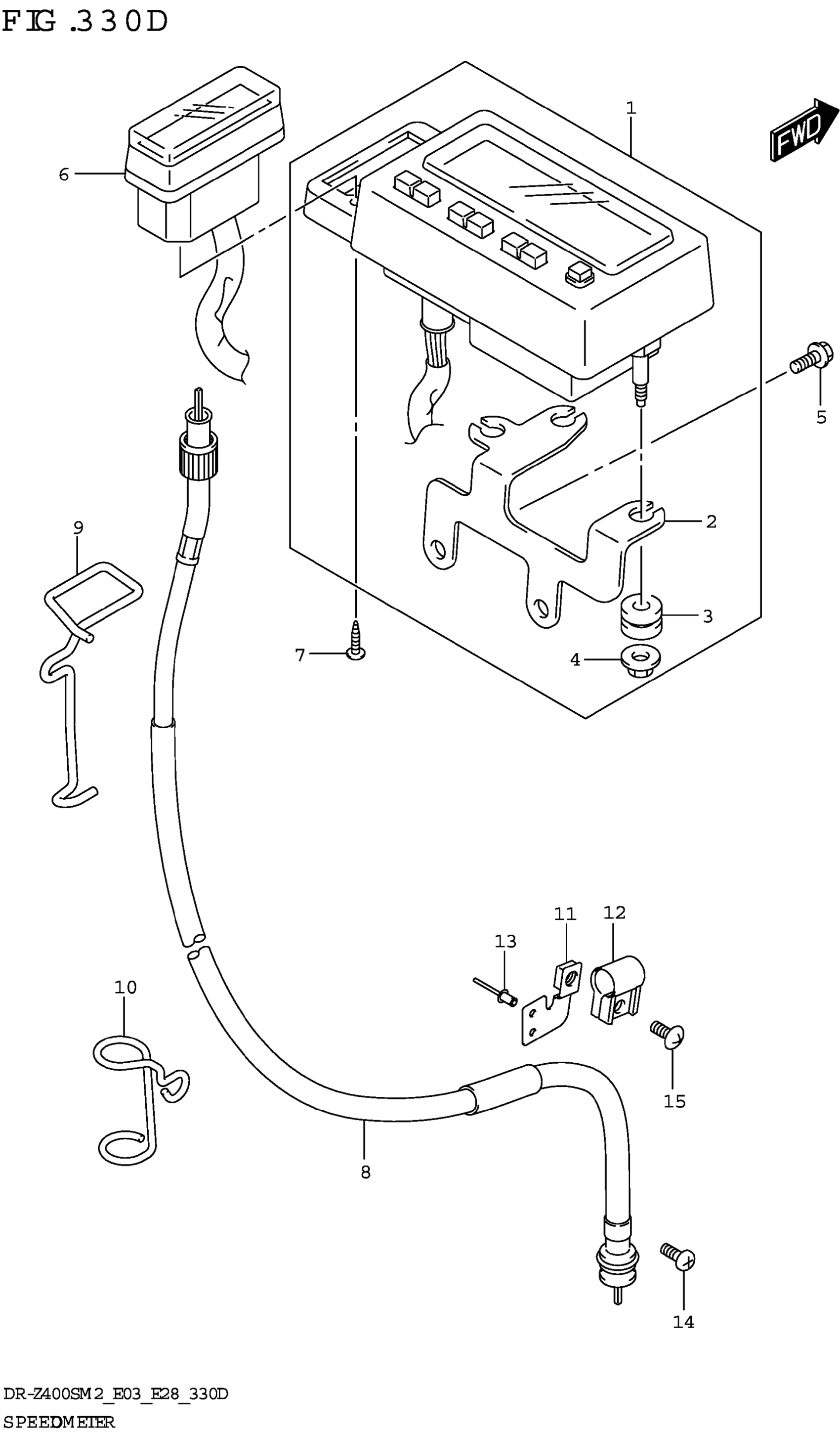

Suzuki DR-Z400SM2 (2022) SPEEDOMETER (DR-Z400SM:E03,E33) Diagram

#

Description
Price

1

SPEEDOMETER ASSY

34100-29F41

$1,084.48

2

.BRACKET

34950-29F00

$48.38

3

.CUSHION

34996-43410

$4.35

4

NUT This part replaces 08316-10053.

08316-1005A

$2.19

5

BOLT

01550-0616A

$1.97

6

BOX ASSY PILOT LAMP

36380-29F00

$287.20

7

SCREW

03511-0420B

$2.46

8

CABLE ASSY SPEEDOMETER

34910-29F20

$42.50

9

GUIDE SPEEDOMETER CABLE NO.3

34938-29F10

$14.48

10

GUIDE METER CABLE NO.1

34938-29F20

$9.90

11

GUIDE METER CABLE NO.2

34938-29F30

$7.05

12

CLAMP BRAKE HOSE

58621-07A20

$4.07

13

RIVET

09229-03011

$4.12

14

.SCREW

02112-0516B

$1.93

15

SCREW

02142-0512B

$2.05
