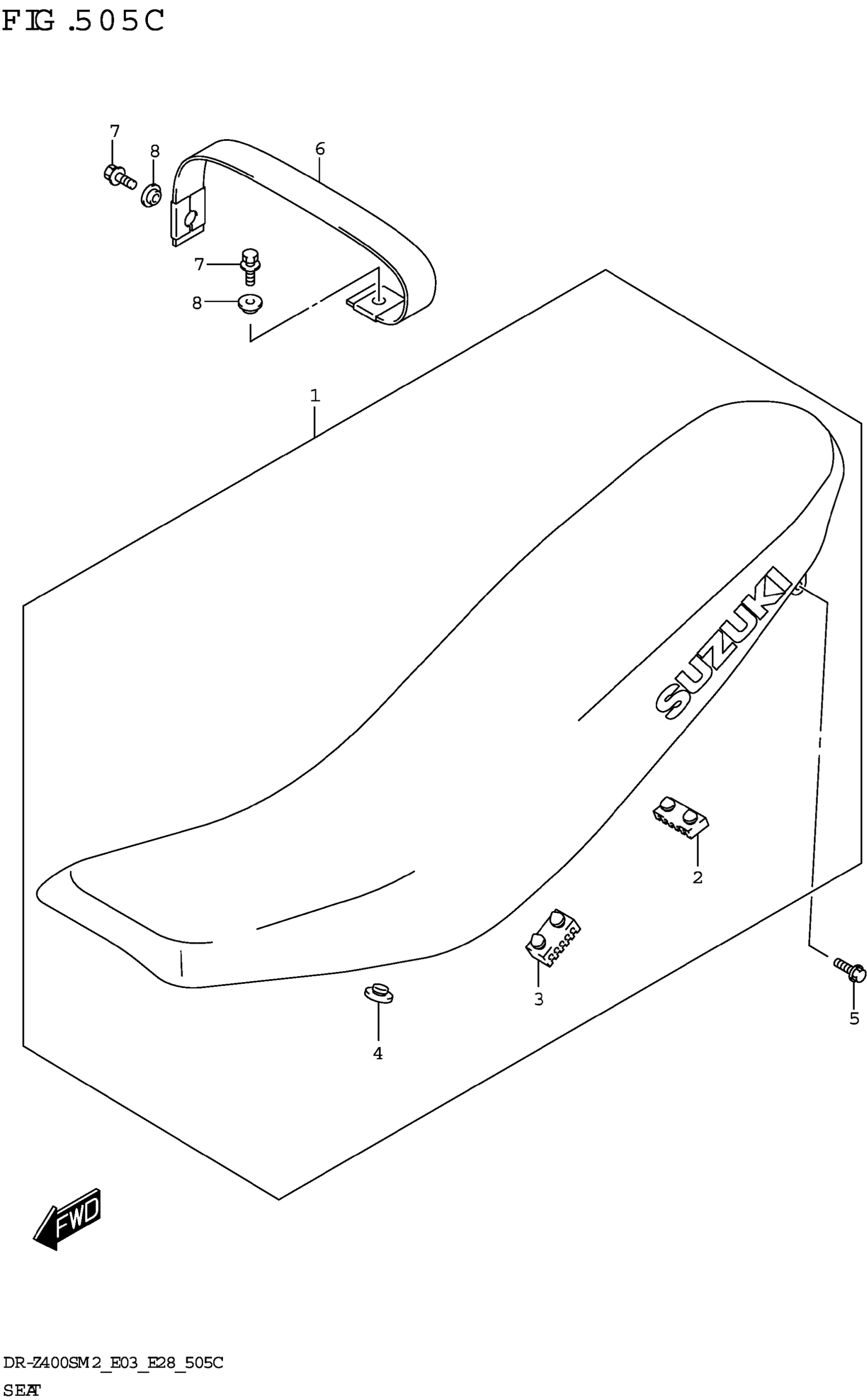

Suzuki DR-Z400SM2 (2022) SEAT (DR-Z400SM) Diagram

#

Description
Price

1-1

SEAT ASSY (RED,BLACK,SILVER)

45100-29FE1-BS6

$342.03

1-2

SEAT ASSY (GRAY BLACK SILVER)

45100-29FE1-BYD

$523.70

2

CUSHION,SEAT (40X20X6)

45149-12C00

$7.48

3

.CUSHION,SEAT (40X20X15)

45149-31300

$3.26

4

CUSHION

09321-10022

$2.37

5

BOLT (6X20)

09116-06182

$2.33

6

BAND SEAT (BLACK)

45180-29F01-P21

$57.72

7

BOLT (6X25)

09116-06150

$2.61

8

WASHER (6.3X17X6)

09169-06063

$3.08
