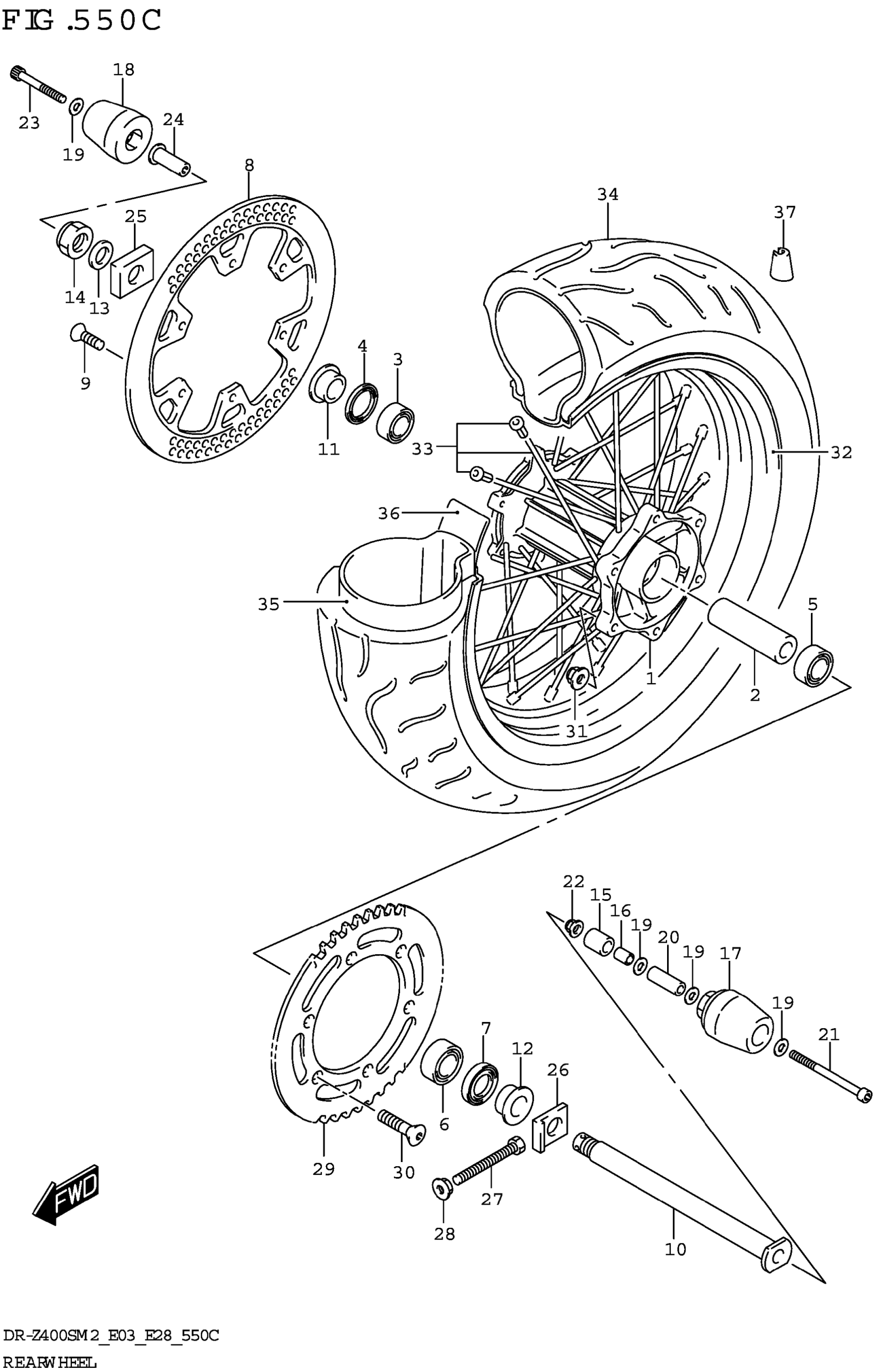

Suzuki DR-Z400SM2 (2022) REAR WHEEL (DR-Z400SM) Diagram

#

Description
Price

1

HUB REAR WHEEL

64111-29F10

$525.57

2

SPACER RR HUB BEARING

64731-29F00

$35.88

3

BEARING

09262-20175

$31.70

4

SEAL (29X42X6)

64841-28E01

$7.22

5

BEARING

09262-20175

$31.70

6

BEARING

08123-6204B

$15.93

7

SEAL OIL (29X47X6)

09283-29006

$10.40

8

DISC REAR BRAKE

69211-29F00

$354.17

9

SCREW (6X18)

09120-06014

$2.43

10

AXLE REAR

64711-29F40

$140.13

11

SPACER RR AXLE

64751-28E20

$24.99

12

SPACER RR AXLE

64751-28E20

$24.99

13

WASHER (19X32X3.2)

09160-19022

$4.42

14

NUT

08319-2118A

$4.42

15

EXPANDER FR AXLE SLIDER R

54744-29F00

$6.62

16

SPACER (5.5X8X10.5)

09180-05048

$2.06

17

SLIDER RR AXLE L

64755-29F00

$35.28

18

SLIDER FR AXLE L

54755-29F00

$28.77

19

WASHER (5.5X12X0.8)

09160-05029

$1.56

20

SPACER (5.5X9.5X26)

09180-05060

$6.08

21

BOLT (5X65)

09106-05021

$7.03

22

NUT

08316-2005B

$3.13

23

BOLT

07130-0540A

$3.23

24

NUT

09159-05050

$10.20

25

ADJUSTER CHAIN R

61445-29F00

$45.65

26

ADJUSTER CHAIN L

61446-29F00

$44.80

27

BOLT (8X50)

09100-08287

$2.80

28

NUT

09159-08034

$1.62

29

SPROCKET REAR (NT:44)

64511-14E00

$81.47

30

BOLT (8X30.5)

09120-08010

$2.39

31

NUT

08319-3108A

$2.31

32

RIM RR WHEEL (17M/C MT4.50 AL

65311-29F30

$746.40

33

SPOKE SET REAR WHEEL

65320-29F30

$148.68

34

TIRE REAR This part replaces 65110-29FA0.

65110-29FA1

$378.03

35

TUBE ASSY WHEEL INNER

65200-29FA0

$63.90

36

PROTECTOR WHEEL INNER TUBE

65261-29FA0

$8.03

37-1

BALANCER,WHEEL (20G)

55412-41F00

$8.12

37-2

BALANCER WHEEL (30G)

55413-41F00

$9.95
