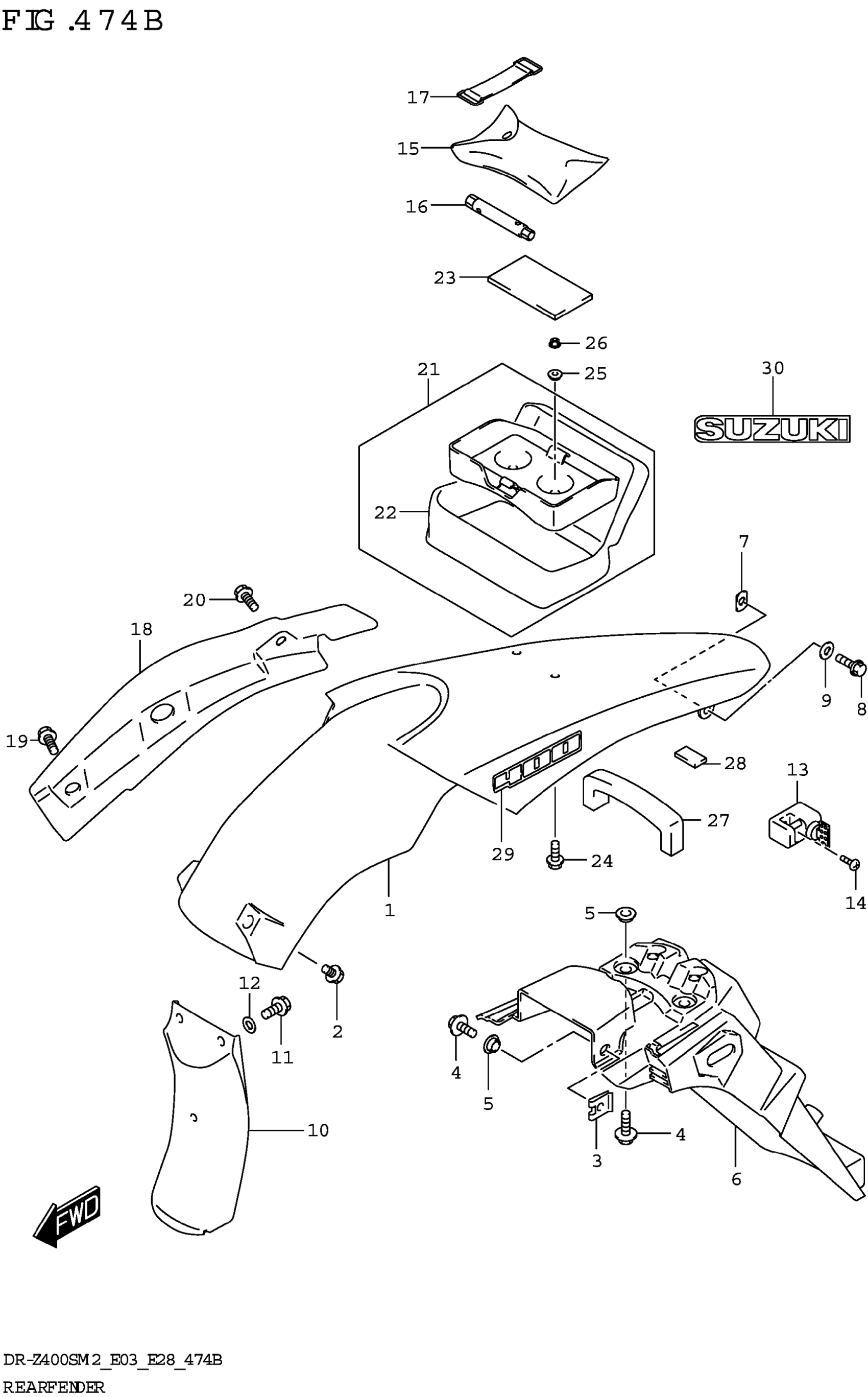

Suzuki DR-Z400SM2 (2022) REAR FENDER (DR-Z400S) Diagram

#

Description
Price

1

FENDER REAR (BLACK)

63113-29FA0-019

$137.95

2

BOLT (6X16)

09113-06001

$2.73

3

PLATE RR FENDER

63312-13E01

$7.72

4

BOLT (6X20) This part replaces 09116-06143.

09116-06115

$1.97

5

WASHER (6.1X17.0X4.8)

09169-06073

$3.42

6

EXTENSION REAR FENDER

63311-29F30

$96.22

7

NUT COWL

94484-24F00

$4.03

8

BOLT

01547-0512B

$3.05

9

WASHER

09169-05024

$2.06

10

MUDGUARD, RR FENDER FR

63411-29F00

$24.30

11

BOLT

01547-0616B

$2.45

12

WASHER This part replaces 09169-06045.

09169-06055

$2.27

13

LOCK SET HELMET

95700-41821

$152.77

14

SCREW (6X14)

09139-06089

$3.03

15

TOOL ASSY

09800-21092

$90.00

16

SPANNER BOX (8X10)

09816-00186

$17.12

17

BAND

09462-00008

$4.77

18

MUDGUARD RR FENDER R

63114-29F00

$36.68

19

BOLT (6X18)

09111-06081

$4.09

20

BOLT (6X12)

09111-06107

$2.60

21

BAG ASSY SEAT TAIL

94900-29FB1

$169.10

22

.BAG SEAT TAIL

94910-29FB0

$104.18

23

CUSHION RR BAG

94915-44E00

$12.65

24

BOLT

01550-0620B

$2.39

25

WASHER (6.3X17X6)

09169-06063

$3.37

26

NUT

09159-06078

$2.62

27

CUSHION

47161-29B00

$7.50

28

CUSHION (11X20X3)

33652-22D00

$1.67

29

EMBLEM,REAR FENDER (SILVER,BL | CK)

68171-29F20-CT5

$12.93

30

EMBLEM SUZUKI (SILVER BLACK)

68721-13A01-CT5

$9.48
