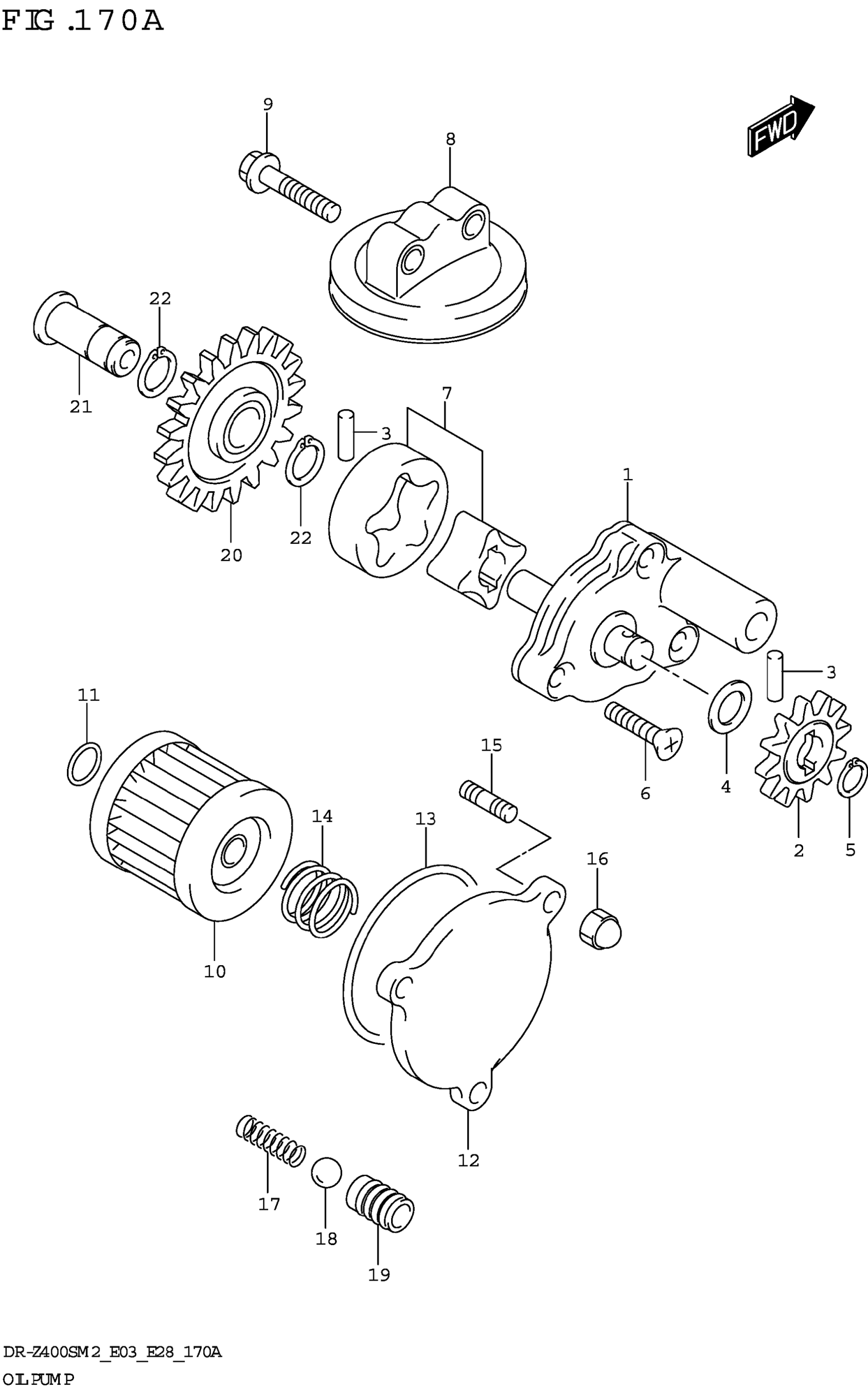

Suzuki DR-Z400SM2 (2022) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY ENGINE OIL NO.1

16400-29F00

$156.40

2

GEAR OIL PUMP DRIVEN (NT:12)

16331-29F01

$39.93

3

PIN (4X15.8)

09261-04009

$1.56

4

SHIM (10X18X0.5)

09181-10158

$1.97

5

CIRCLIP

08331-31109

$1.78

6

SCREW

02122-0625A

$1.49

7

ROTOR SET OIL PUMP NO.2

16410-29F00

$44.18

8

STRAINER OIL PUMP NO.2

16520-29F01

$21.83

9

BOLT (6X25)

01550-0625A

$1.97

10

FILTER ASSY ENGINE OIL

16510-29F00

$7.66

11

.O-RING (D:1.9,ID:13)

09280-13004

$2.17

12

CAP OIL FILTER

16512-47E00

$39.00

13

.O-RING (D:2.4,ID:52.6)

09280-54001

$3.76

14

SPRING (L:14.5)

09440-18002

$1.49

15

STUD BOLT

09108-06123

$3.10

16

NUT

08313-1006A

$1.84

17

SPRING

09440-07073

$4.50

18

BALL

06111-12004

$1.93

19

SEAT OIL CHECK VALVE

16442-29F00

$27.95

20

GEAR OIL PUMP IDLE (NT:20)

16321-29F00

$26.52

21

SHAFT OIL PUMP IDLE GEAR

16322-29F00

$19.87

22

CIRCLIP

08331-3112A

$1.78
