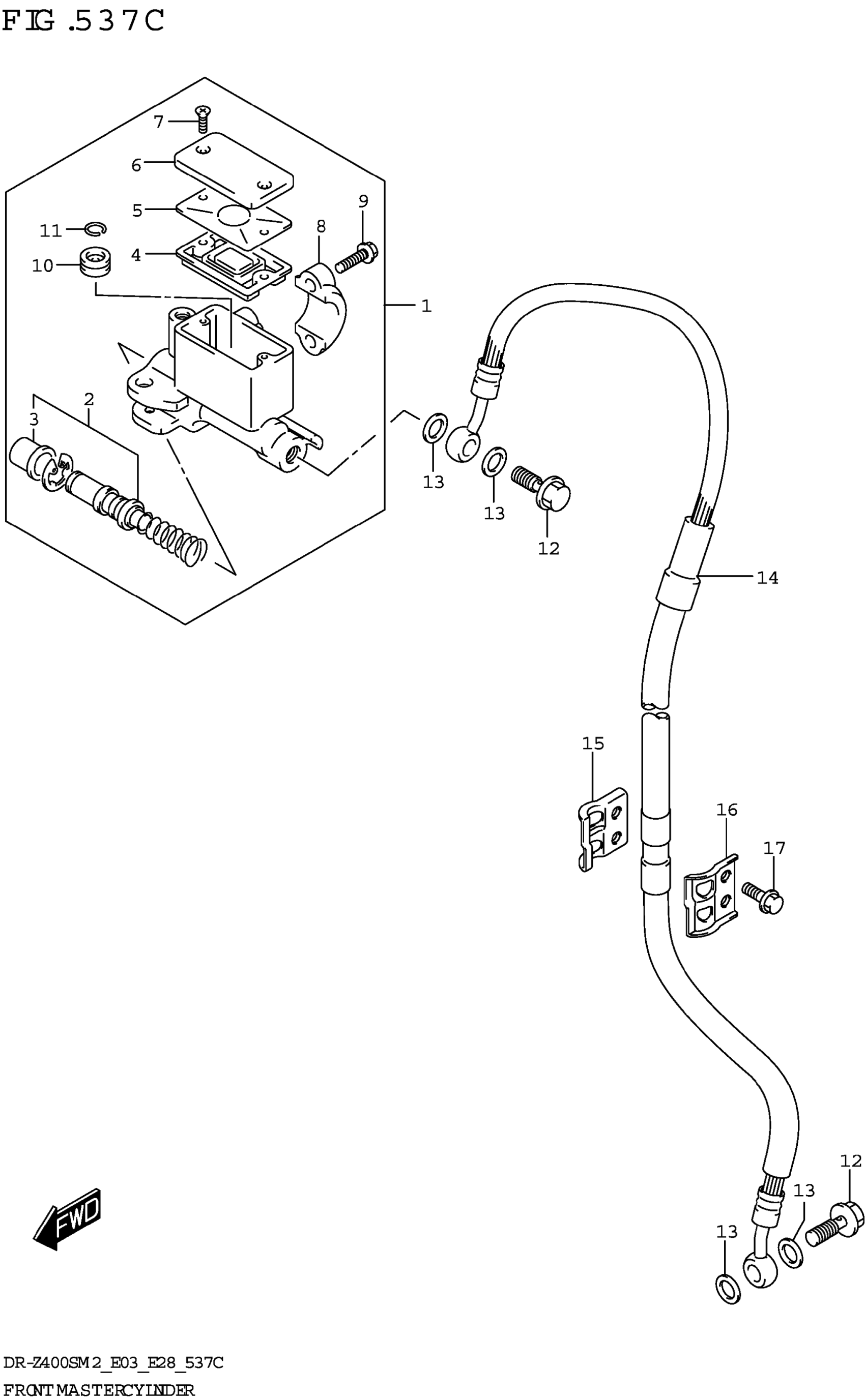

Suzuki DR-Z400SM2 (2022) FRONT MASTER CYLINDER (DR-Z400SM) Diagram

Description

Price

CYLINDER ASSY FRONT MASTER

59600-44E50

$283.85

.PISTON/CUP SET

69600-38810

$66.13

..BOOT

59666-44300

$5.30

.DIAPHRAGM

59667-04700

$8.95

.PLATE,DIAPHRAGM

59668-14F00

$13.10

.PLATE

59669-14F20

$26.23

.SCREW

02122-0412A

$1.95

.HOLDER

59671-03D00

$29.60

.BOLT (6X25)

59675-06F00

$5.33

.SEPARATOR

59748-36E00

$10.58

.RING

69744-36E00

$4.53

UNION (10X1.25X22)

09360-10062

$5.81

WASHER (10X15X1.5)

09161-10009

$1.83

HOSE

59480-29F32

$184.63

CLAMP FRONT BRAKE HOSE INNER

59260-36E00

$13.03

CLAMP FR BRAKE HOSE OUTER

59270-29F00

$13.03

BOLT

01547-0616A

$2.01
