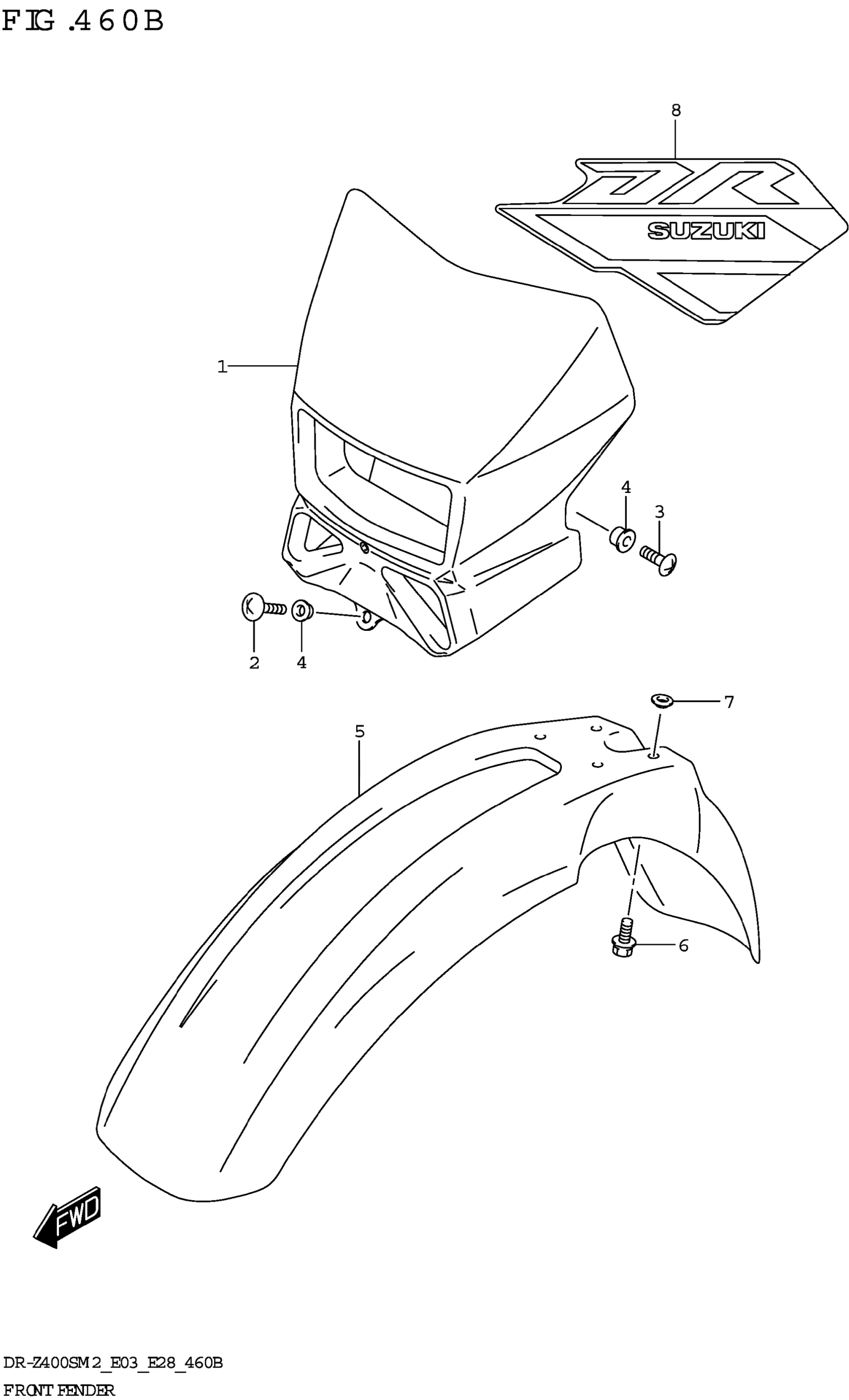

Suzuki DR-Z400SM2 (2022) FRONT FENDER (DR-Z400SM) Diagram

#

Description

Price

1-1

COVER HEADLAMP (BLACK) | BODY COLOR:019

51811-29F50-019

$96.47

1-2

COVER HEADLAMP (WHITE) | BODY COLOR:30H

51811-29F50-30H

$116.87

2

SCREW

02142-0512B

$2.05

3

SCREW

02142-0612B

$2.05

4

WASHER This part replaces 09169-06032.

09169-06071

$2.50

5-1

FENDER FRONT (BLACK) | BODY COLOR:019

53111-29FA0-019

$173.50

5-2

FENDER FRONT (WHITE) | BODY COLOR:30H

53111-29FA0-30H

$172.63

6

BOLT (6X16)

09116-06170

$2.50

7

WASHER (6.1X17.0X4.8)

09169-06073

$3.42

8-1

TAPE,HEADLAMP COVER | BODY COLOR:019

68725-29FD0-B71

$21.67

8-2

TAPE,HEADLAMP COVER | BODY COLOR:30H

68725-29FD0-B7U

$21.67
