Partiron

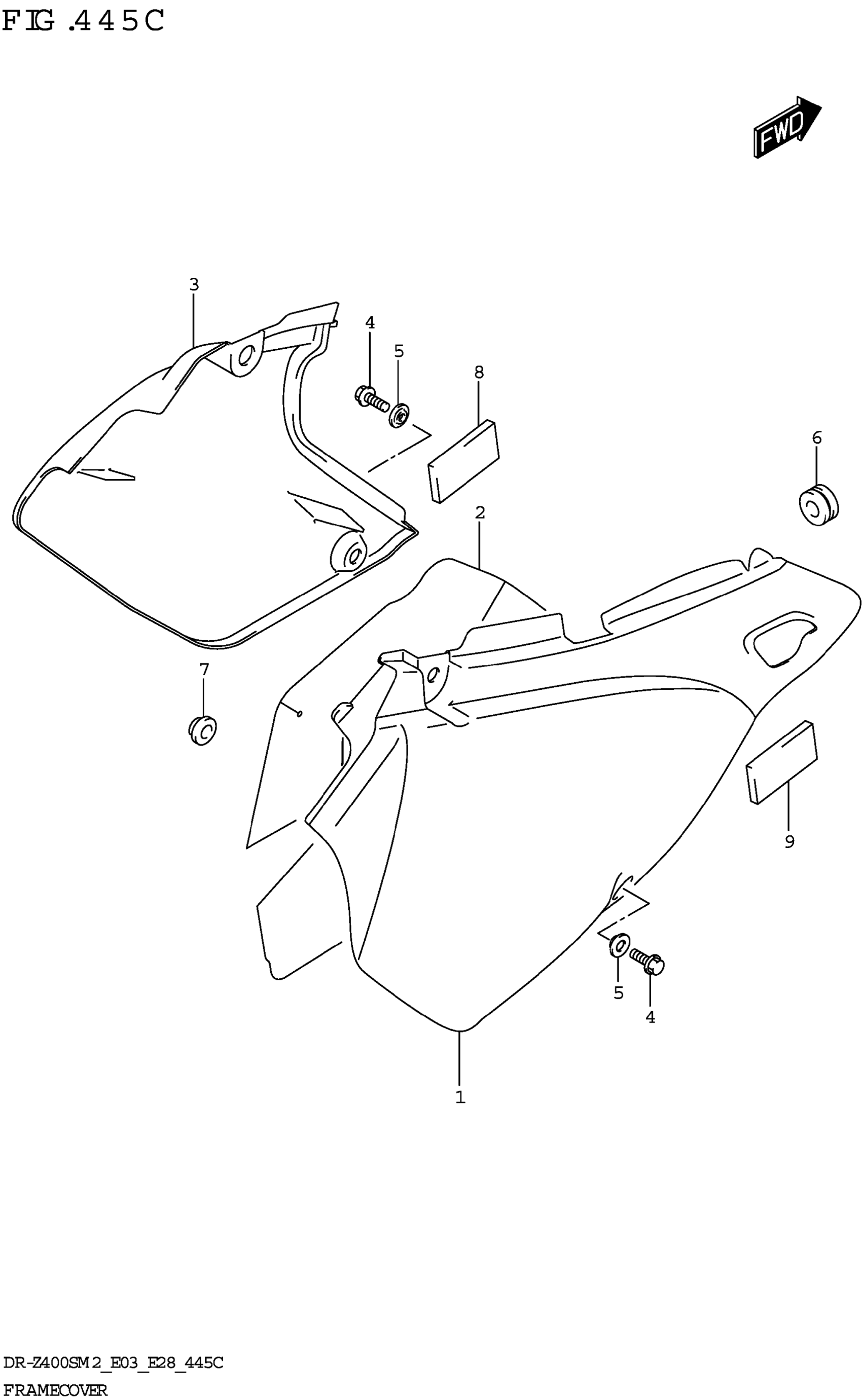

Suzuki DR-Z400SM2 (2022) FRAME COVER (DR-Z400S:(E03,E28)) Diagram

#

Description
Price

1

COVER FRAME R (BLACK)

47111-29FC0-019

$95.70

2

SHIELD FRAME COVER R

47166-29F00

$82.92

3

COVER FRAME L (BLACK)

47211-29FA0-019

$80.03

4

BOLT (6X12)

09103-06273

$2.26

5

WASHER This part replaces 09169-06028.

09169-06041

$2.20

6

CUSHION (6X18X6)

09320-06504

$4.96

7

CUSHION

09321-10018

$5.45

8

CUSHION FRAME COVER L

47161-29F00

$6.11

9

CUSHION (18X70X6)

71762-65G10

$8.28
