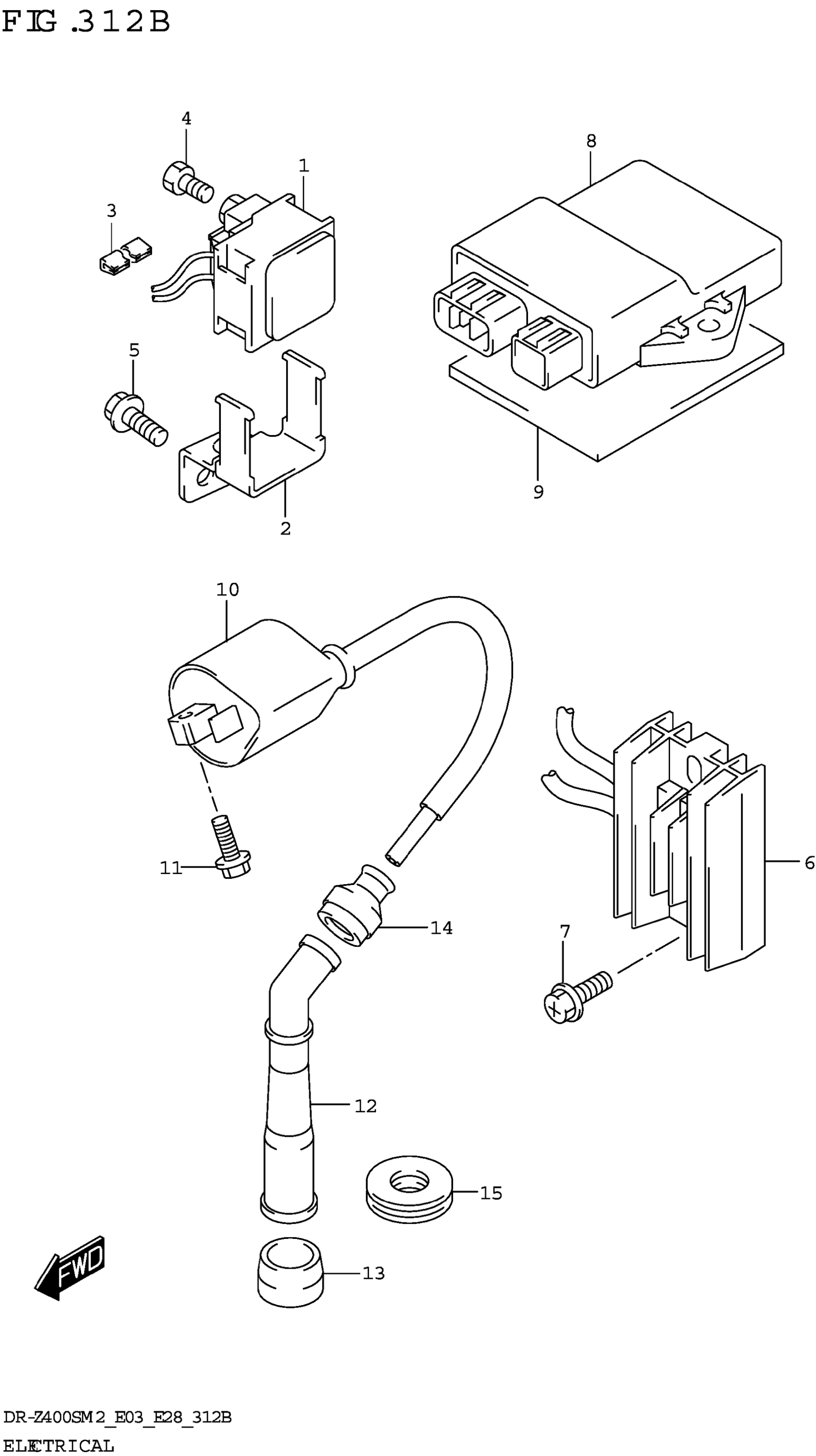

Suzuki DR-Z400SM2 (2022) ELECTRICAL (DR-Z400SM) Diagram

#

Description
Price

1

RELAY ASSY STARTING MOTOR

31800-29F01

$63.15

2

BRACKET STARTING MOTOR RELAY

31811-29F00

$7.12

3

PROTECTOR STARTING MOTOR LEAD

31812-29F00

$5.67

4

SCREW (6X8)

09128-06013

$1.49

5

BOLT

01550-0612A

$1.97

6

RECTIFIER ASSY

32800-29F00

$267.85

7

SCREW

02162-0620B

$2.28

8

CDI UNIT

32900-29FD0

$787.82

9

CUSHION (30X50X3)

33652-36000

$2.30

10

COIL ASSY IGNITION

33410-09F00

$95.54

11

BOLT

01547-0616B

$2.45

12

CAP,SPARK PLUG

33510-48B10

$31.77

13

SEAL,SPARK PLUG

33541-23E10

$6.54

14

SEAL,HIGH TENSION CORD (SIDE)

33542-48H01

$4.37

15

COVER,SPARK PLUG CAP

33543-33E01

$4.54
