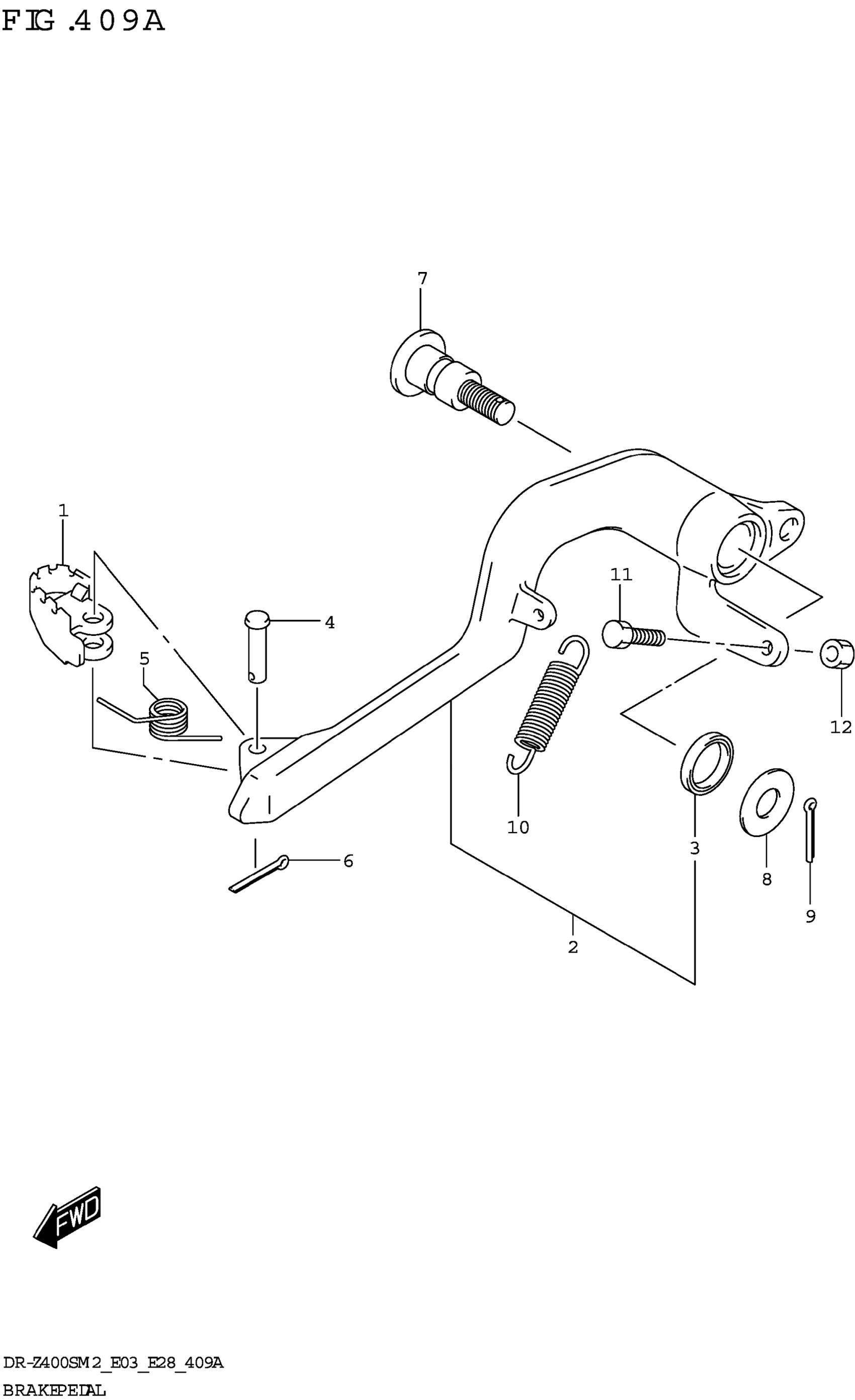

Suzuki DR-Z400SM2 (2022) BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL BRAKE

43110-43D00

$17.32

2

ARM BRAKE PEDAL

43120-29F10

$279.42

3

.SEAL,OIL (15X21X3)

09284-15006

$3.21

4

PIN (6X23.5)

09200-06062

$2.19

5

SPRING

09444-11006

$2.92

6

PIN

04111-2015A

$1.22

7

SHAFT, BRAKE PEDAL

43142-27C00

$21.12

8

WASHER

08211-10261

$2.01

9

PIN

04111-2020A

$1.22

10

SPRING

09443-11033

$4.07

11

BOLT (6X30)

09104-06004

$4.62

12

NUT

08310-0006B

$2.37
