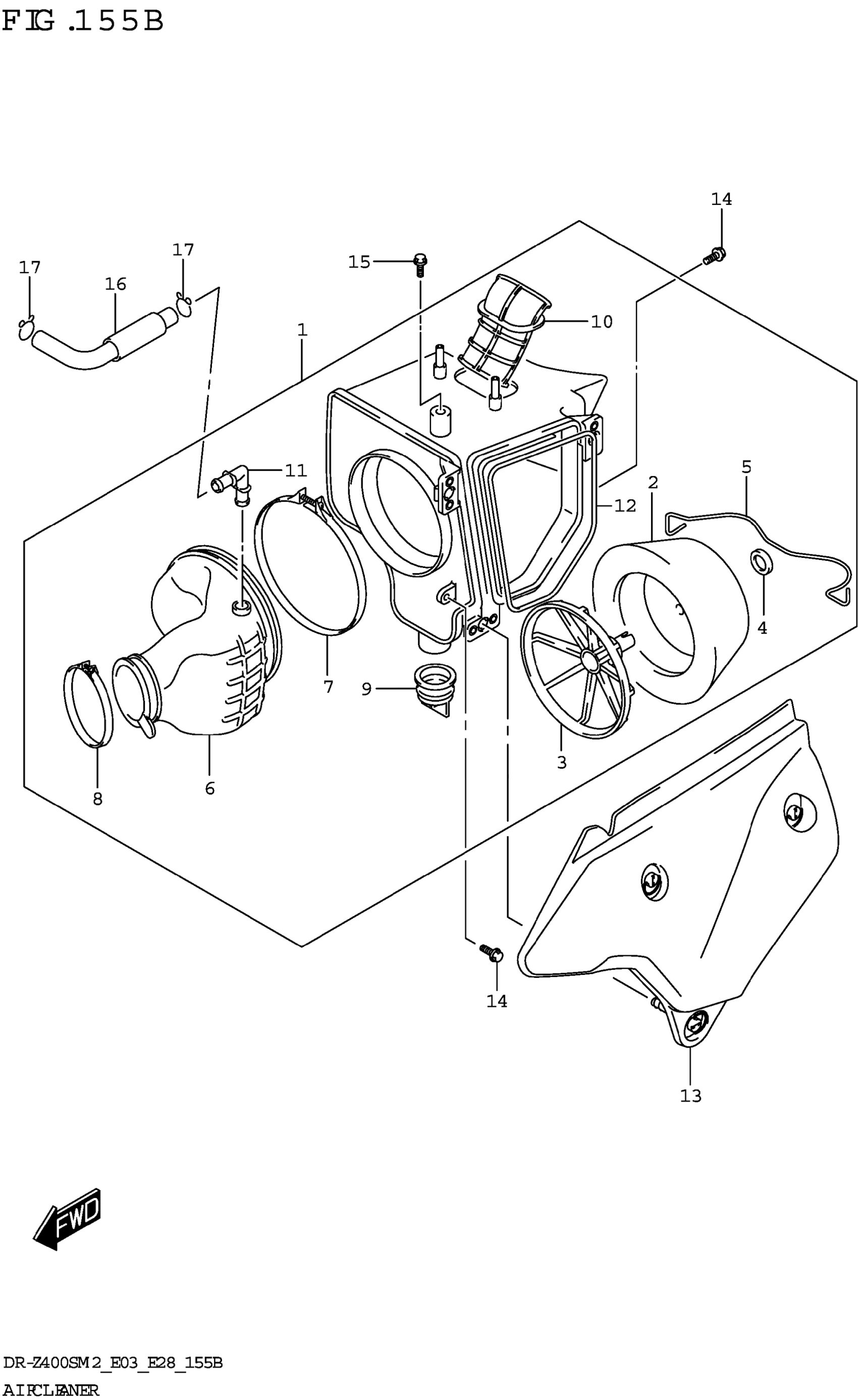

Suzuki DR-Z400SM2 (2022) AIR CLEANER (DR-Z400S) Diagram

Description

Price

CLEANER AIR

13701-29FB2

$275.31

.FILTER ASSY

13780-44E00

$35.43

.HOLDER FILTER

13791-44E00

$13.89

.SPACER

13796-44E00

$3.32

.SPRING

13941-29F00

$31.97

.TUBE OUTLET

13881-29FB0

$73.48

.CLAMP

13826-29F00

$7.51

.CLAMP (L:25)

09402-64203

$5.94

.VALVE

13872-29F00

$9.36

.TUBE INLET

13891-29FA0

$44.60

.JOINT

13858-14D20

$6.80

.GASKET AIR CLEANER

13746-29F00

$5.25

CAP AIR CLEANER (BLACK)

13740-29FB1-019

$220.82

BOLT

01547-0616A

$2.01

BOLT (6X14.6)

09111-06054

$4.02

TUBE BREATHER

13850-29FA2

$11.37

.CLIP (ID:14.5)

09401-14101

$2.37
