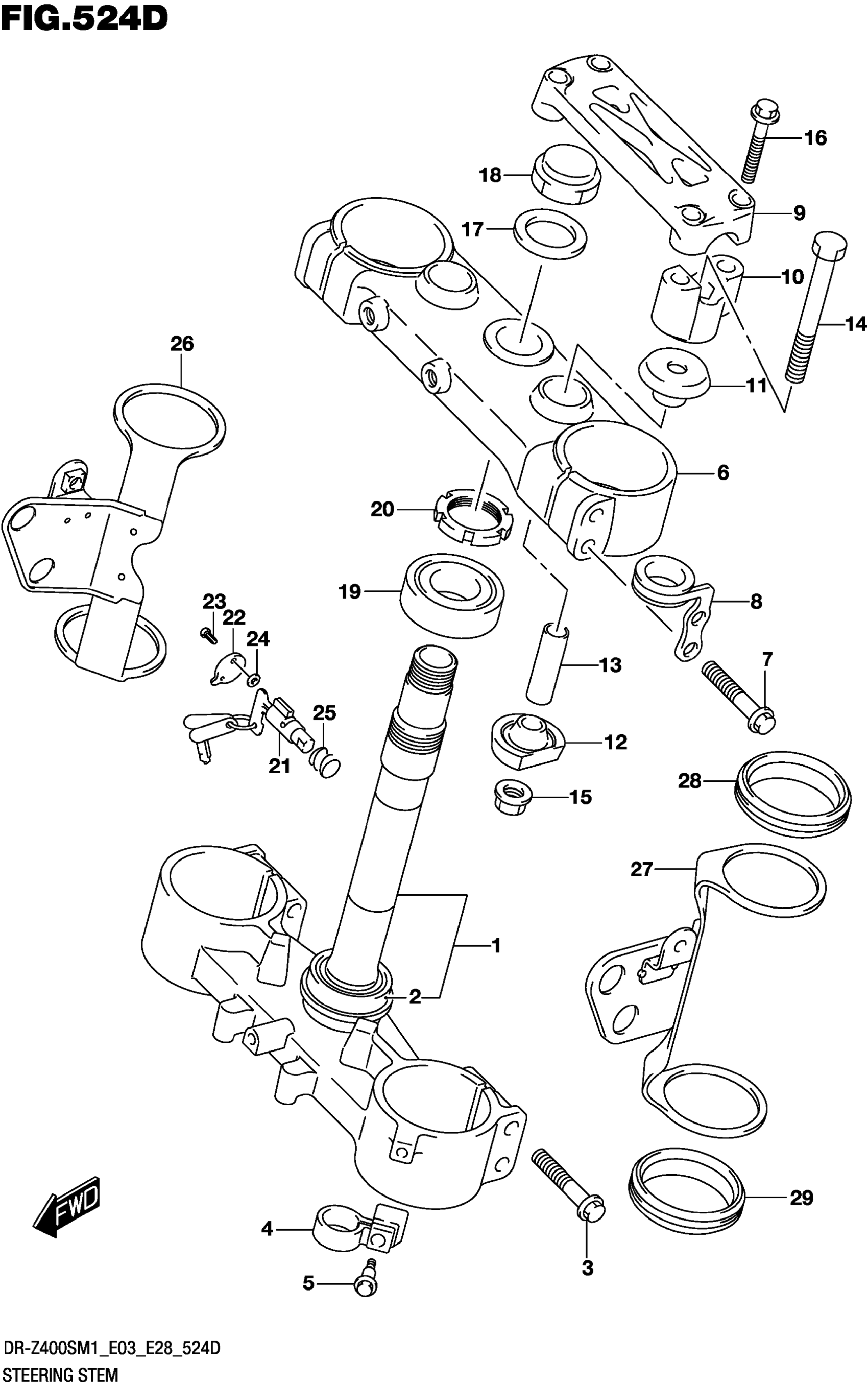

Suzuki DR-Z400SM1 (2021) STEERING STEM (DR-Z400SM) Diagram

#

Description
Price

1

BRACKET FR FORK UNDER

51410-29F71

$657.72

2

.BEARING (30X52X16)

09265-30035

$46.72

3

.BOLT

51166-35F00

$7.50

4

GUIDE FRONT BRAKE HOSE

58621-29F00

$14.63

5

BOLT (6X20.5)

09111-06087

$2.71

6

BRACKET UPPER

51311-29F70

$474.13

7

.BOLT

51166-35F00

$7.50

8

GUIDE CABLE

51280-29F00

$26.48

9

HOLDER HANDLE BAR UPPER

56211-29FA0

$96.30

10

HOLDER HANDLE LOWER

56221-35G00

$58.13

11

CUSHION RUBBER UPPER

56241-42AE1

$29.29

12

CUSHION RUBBER UNDER

56242-28C61

$28.58

13

SPACER

56243-42A00

$8.03

14

BOLT

56321-35G00

$5.58

15

NUT

08319-31107

$2.73

16

.BOLT

51166-35F00

$7.50

17

WASHER,STEM HEAD

51356-29E00

$15.29

18

NUT

51353-27G00

$33.80

19

.BEARING (30X52X16)

09265-30035

$46.72

20

NUT STEERING

51631-28E00

$28.88

21

LOCK ASSY STEERING

51900-29F00

$207.90

22

CAP STEERING LOCK

51912-29F00

$6.23

23

PIN STEERING LOCK

51913-29F00

$5.02

24

WASHER STEERING LOCK

51914-29F00

$4.82

25

SPRING STEERING LOCK

51931-29F00

$4.33

26

BRACKET HEADLAMP HOUSING R

51530-29F10

$61.13

27

BRACKET HEADLAMP HOUSING L

51540-29F10

$61.13

28

DAMPER HEADLAMP BRACKET UPPER

51553-29F10

$10.55

29

DAMPER HEADLAMP BRACKET LOWER

51553-29F20

$10.55
